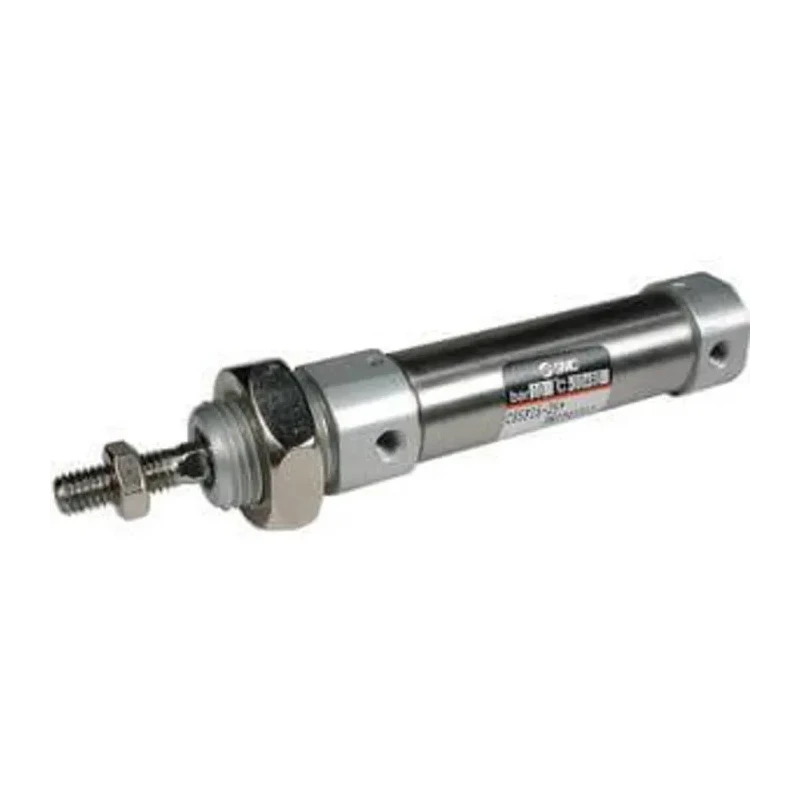

SMC 25 mm Pneumatic Roundline Cylinder Both Ends Tapped Rubber Cushion Aluminium Alloy Body CD85 Series

SMC CD85N12-25S-B Pneumatic Roundline Cylinder is a single acting pneumatic piston rod cylinder with a 25 mm bore and 25 mm stroke length, designed for industrial automation and fluid power applications. It belongs to the renowned CD85 series by SMC, crafted to meet ISO 6432 standards and CETOP RP52P guidelines.

This cylinder features a lightweight yet robust aluminium alloy body with stainless steel barrel and piston rod, ensuring corrosion resistance and extended operational life. The both ends tapped mount type facilitates flexible mounting arrangements in compact spaces.

Engineered for high durability, it includes double-swaged anodised aluminium end caps providing airtight sealing and a specially designed unique dust seal to ensure excellent resistance against dust intrusion. Rubber cushioning and low friction elastomer seals enable smooth motion and reduce wear and tear during high-speed operation up to 1500 mm/s.

The cylinder is suitable for use in environments with temperatures up to 60°C and integrates a replaceable piston rod seal for ease of maintenance. The piston rod threading follows metric standards and is female gender type, making it compatible with metric fasteners and accessories.

Installation is facilitated by the inclusion of a piston rod locknut and nose-mounting nut, along with large spanner flats and a space-saving design that reduces required mounting footprint. This product is ideal for industrial, manufacturing, automation, and pneumatic system applications requiring precise, reliable linear actuation in constrained environments.

Complies with ISO 6432 standard for Pneumatic Cylinders. Both ends tapped mount type for versatile installation options. Aluminium alloy body ensures lightweight and corrosion resistance. Maximum operating temperature up to 60°C for broad application range.

High dust resistance design suitable for dusty industrial environments. Maximum piston speed up to 1500 mm/s allowing fast actuation. Incorporates a replaceable piston rod seal and stainless steel barrel and piston rod for durability.

Double-swaged anodised aluminium end caps provide an airtight seal. Equipped with a piston rod locknut and nose-mounting nut for simple installation. Low friction elastomer cushion seals enable smooth cylinder operation.
