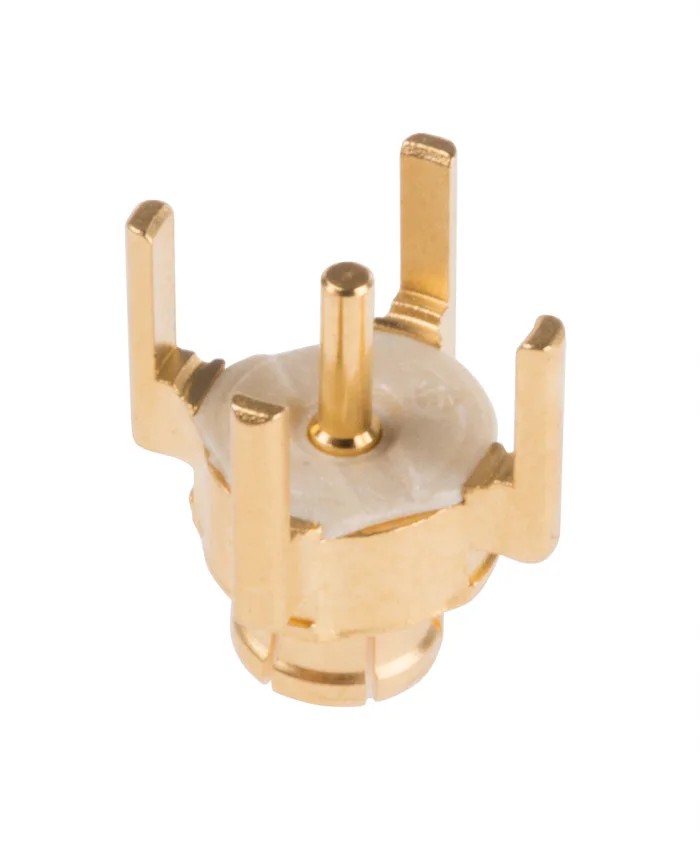

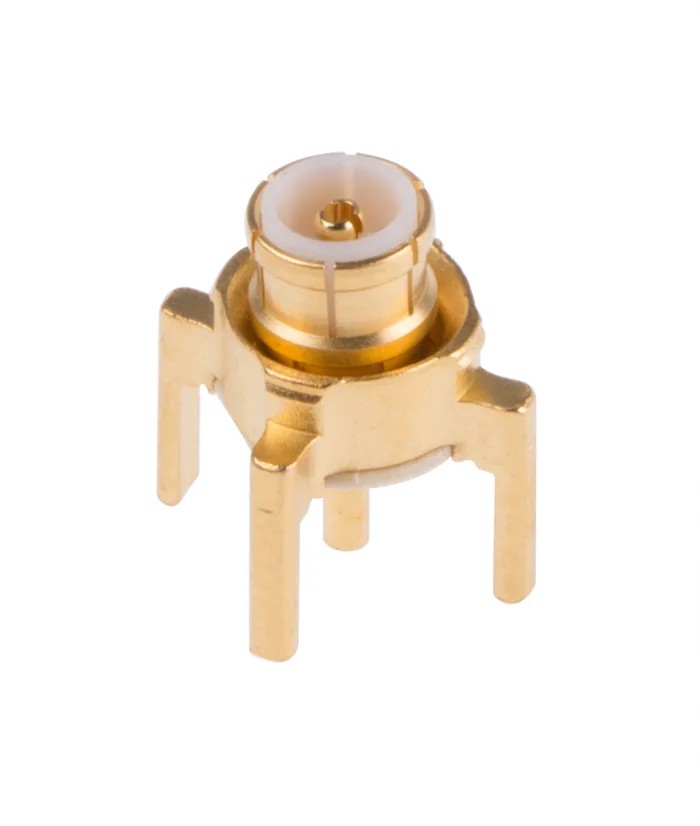

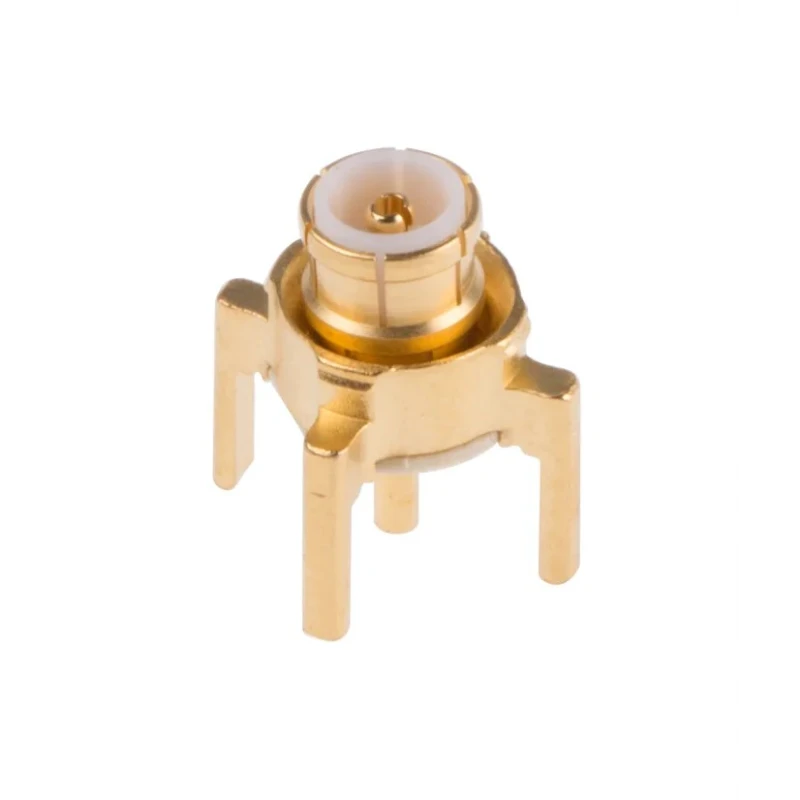

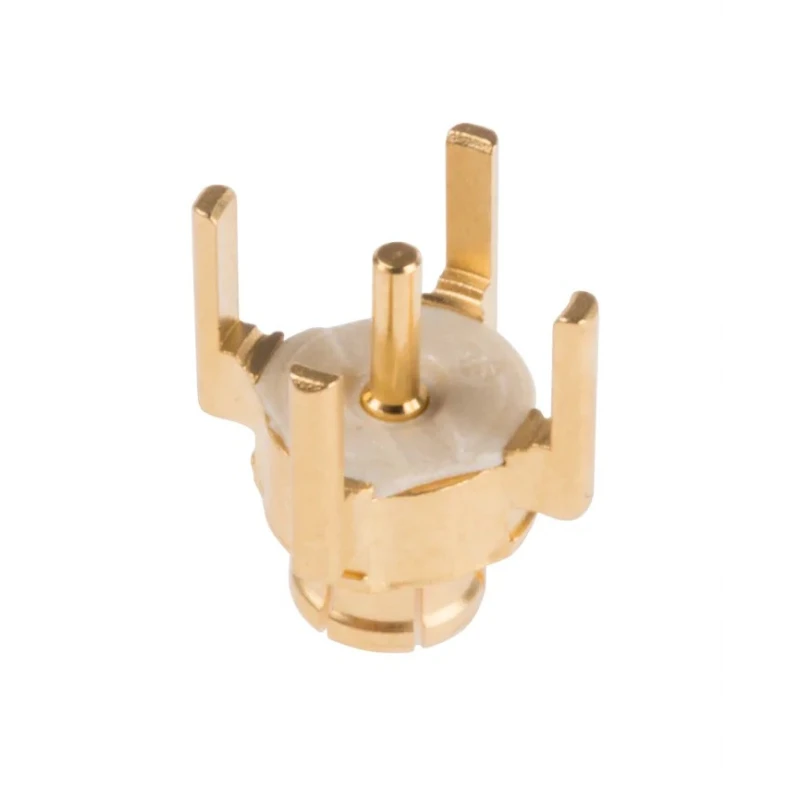

Huber+Suhner MMBX Series Coaxial Connector Through Hole Male, 50 Ω, Straight Body, Solder Termination 81_MMBX-50-0-2/111_NE
Specifications
| Country of Origin | Switzerland |
|---|---|
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Straight |
| Model | 81_MMBX-50-0-2/111_NE |
| Mount Type | Through Hole |
| Operating Frequency | 12.4GHz |
| Contact Material | Beryllium Copper, Brass |
| Series | MMBX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MMBX |
| Body Plating | Gold over Nickel |
Key Features
- Offers excellent RF performance up to 12.4 GHz operating frequency.
- Features gold over nickel body plating and contact plating for durability and conductivity.
- Constructed with beryllium copper and brass contact materials for reliable electrical contact.
- Designed for mechanical misalignment compensation in axial and radial directions without mechanical stress.
- Suitable for board-to-board radio module applications and complex stack-ups in cellular technology systems.
- Maintains excellent electrical performance under temperature range from -55°C to 155°C.
- Supports good power handling, typically 260 W at 2.4 GHz at room temperature.
- Meets MIL-STD-202 standards with multiple method conditions for robustness.
Product Description
Huber+Suhner 81_MMBX-50-0-2/111_NE MMBX Series Coaxial Connector is a precision through hole male connector rated at 50 Ω impedance with a straight body designed for solder termination and robust PCB integration.
These connectors provide outstanding RF performance up to 12.4 GHz and support mechanical misalignment compensation in both radial and axial directions, resulting in excellent reliability and minimal mechanical stress on the connector and solder joints.
Constructed with high-quality beryllium copper and brass contacts plated with gold over nickel, and a body also plated gold over nickel, the connector ensures excellent conductivity and corrosion resistance, making it suitable for high-frequency and harsh environment applications.
The operating temperature range spans from -55°C to 155°C, allowing deployment in demanding industrial, communication, and laboratory settings. Typical power handling capability is around 260 W at 2.4 GHz at room temperature.
This MMBX series connector is compact, designed for minimum space usage required in modern cellular technology systems including GSM 900/1800/1900, PCS, WCDMA, and UMTS. It supports modularity with a range of board and cable connectors to enable unified system designs.
Applications include multiple board-to-board connections and complex stack-ups in radio communication modules, used in conjunction with adapters across series. Excellent RF and mechanical performance up to 12.4 GHz. Compensates mechanical misalignment without stressing solder joints.
Gold over nickel plating ensures corrosion resistance and conductivity. High reliability contact materials: beryllium copper and brass. Supports typical power handling of 260 W at 2.4 GHz. Compact design for cellular network and radio modules.
Industry standard MIL-STD-202 tested for durability. Through hole mount for PCB integration. Normal polarity and straight orientation ensure compatibility.
Set within Huber+Suhner's comprehensive MMBX range, this connector provides precise electrical and mechanical performance required for advanced RF communication and industrial applications.
Explore more Huber+Suhner connectors and coaxial product solutions at EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 12.4 GHz.
The contacts are constructed from beryllium copper and brass, providing reliable electrical contact.
This connector is rated for an impedance of 50 Ω.
The operating temperature range spans from -55°C to 155°C.
This model features a solder termination type.
It utilizes a through hole mounting type for PCB integration.
The typical power handling capability is around 260 W at 2.4 GHz at room temperature.
The orientation of this connector is straight.
It is suitable for board-to-board radio module applications and complex stack-ups in cellular technology systems.
The body and contacts are plated with gold over nickel for durability and conductivity.
Yes, it meets MIL-STD-202 standards with multiple method conditions for robustness.
This connector is a male connector.
