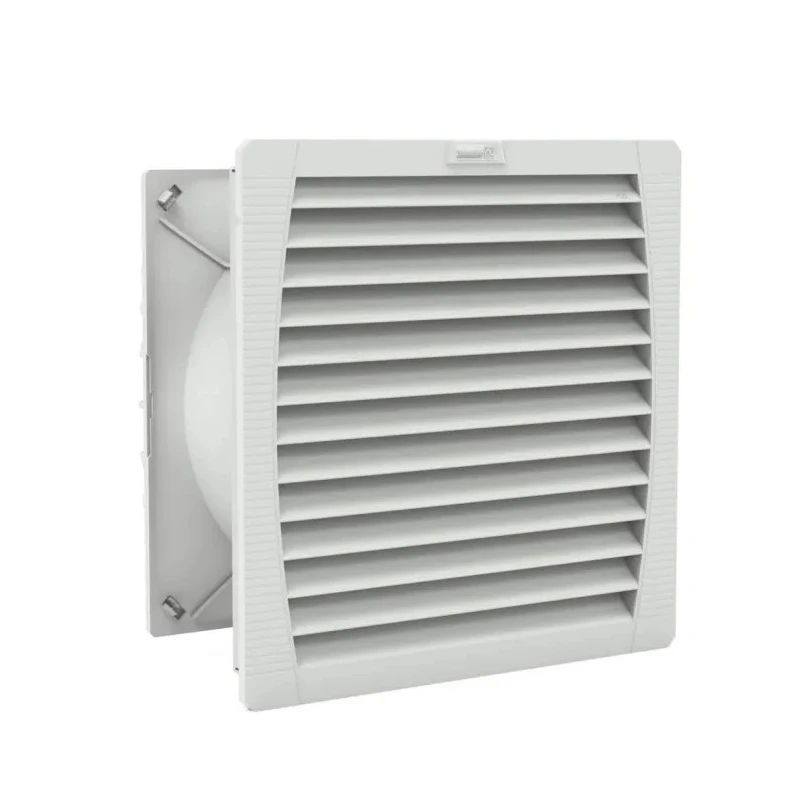

Pfannenberg PF 66.000 Series Filter Fan, 230V AC, 150W, 640 m³/h Filtered Airflow, 1741 m³/h Unimpeded Airflow, , 320 IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pfannenberg |
| Colour | RAL 7035 (except Manu Part No suffix 50 : RAL 9011 / Black) |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 63dB |
| Series | PF 66.000 |
| Configuration | Flatpack |
| Input power | 150W |
| Installation Depth | 150mm |
| Input current | 660mA |
| Terminal type | Clamp |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | EN, CE, UL, cULus, RoHS |
| AC or DC Operation | AC |
| Unimpeded Air Flow | 1741m³/h |
| Filtered Air Flow | 640m³/h |
| Face Height | 320mm |
| Face Width | 320mm |
Key Features
- The filter fan delivers 640 m³/h filtered air and 1741 m³/h unimpeded air flow capacity.
- Equipped with a patented pleated fabric filter and louvre design for extended filter life.
- IP54 rated for protection against dust and water with reversible airflow direction.
- Compact dimensions of 320 mm x 320 mm face size and 150 mm installation depth for easy integration.
- Noise level is 63 dB, supported by ball bearing for durability and reliability.
- Designed for tool-free "Click and Fit" installation and maintenance.
- Certified with EN, CE, UL, cULus, and RoHS standards for industrial use.
- Manufactured in Germany with a RAL 7035 color finish for aesthetic and durable application.
Product Description
Pfannenberg PF 66.000 Series Filter Fan IP54 is a high-performance ventilation product designed for industrial and commercial electrical enclosures requiring reliable cooling and air filtration. Operating at 230V AC and consuming 150W power, this filter fan offers an unimpeded air flow of 1741 m³/h and filtered air flow of 640 m³/h, making it suitable for HVAC, automation, and thermal management applications.
The product features a new-generation pleated fabric filter combined with a louvre design that ensures extended filter life by pre-separating water and dust particles. The innovative "Click and Fit" design enables hardware-free installation and easy filter mat changes to minimize maintenance efforts.
This IP54 rated filter fan includes a reversible airflow feature to allow both intake and exhaust operation, meeting the needs of various installation scenarios. The terminal uses a cage clamp design, which can be rotated in 90° increments to facilitate flexible wiring configurations. The compact dimensions, with a face width and height of 320 mm and installation depth of 150 mm, allow installation in tight enclosure spaces.
The fan delivers a noise level of 63 dB supported by a ball bearing type ensuring longevity and consistent performance. Certified with EN, CE, UL, cULus, and RoHS, the unit meets rigorous industrial quality and safety standards. The color finish is RAL 7035, providing a professional appearance compatible with industrial settings.
The filter fan delivers 640 m³/h filtered air and 1741 m³/h unimpeded air flow capacity. Equipped with a patented pleated fabric filter and louvre design for extended filter life. IP54 rated for protection against dust and water with reversible airflow direction.
Compact dimensions of 320 mm x 320 mm face size and 150 mm installation depth for easy integration. Noise level is 63 dB, supported by ball bearing for durability and reliability. Designed for tool-free "Click and Fit" installation and maintenance.
Certified with EN, CE, UL, cULus, and RoHS standards for industrial use. Manufactured in Germany with a RAL 7035 color finish for aesthetic and durable application.
This filter fan is ideal for industrial automation, HVAC systems, manufacturing enclosures, and electrical cabinets where effective cooling and contamination protection are critical.
Explore more Pfannenberg Filter Fans and accessories for reliable industrial cooling solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a filtered air flow of 640 m³/h and an unimpeded air flow of 1741 m³/h.
It operates at an input power of 150W and an input current of 660mA.
The fan has a face size of 320 mm x 320 mm and an installation depth of 150 mm.
The noise level of the filter fan is 63 dB.
It has an IP54 rating, providing protection against dust and water.
It features a tool-free "Click and Fit" installation design for easy integration and maintenance.
It is certified with EN, CE, UL, cULus, and RoHS standards.
The fan is supported by a ball bearing type, which contributes to its reliability.
This filter fan operates on a supply voltage of 230V AC.
It features a reversible airflow direction, allowing for both intake and exhaust operation.
It is manufactured in Germany, ensuring adherence to high industrial standards.
The filter fan is finished in RAL 7035, providing a professional appearance suitable for industrial settings.
