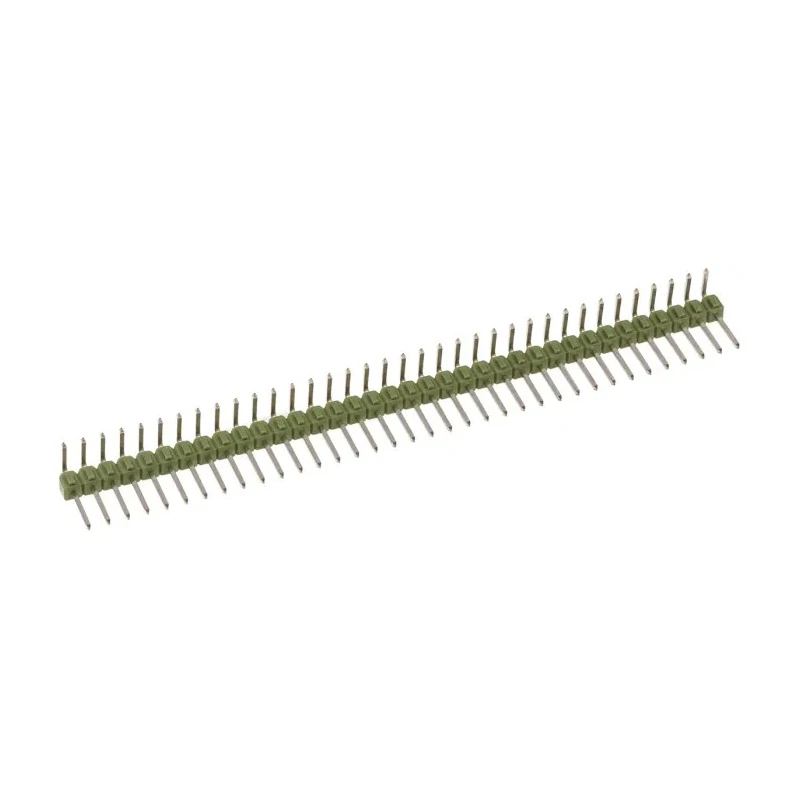

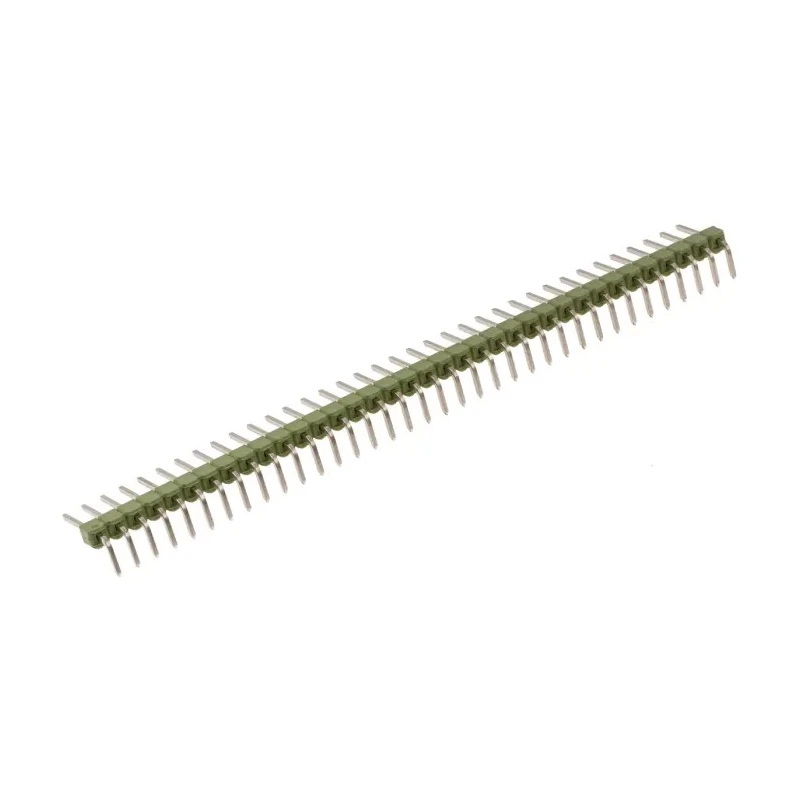

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, 3A 3-826947-6

The TE Connectivity 3-826947-6 AMPMODU MOD II Series right angle pin header is engineered for highly reliable interconnections in printed circuit board assemblies. This pin header provides 36 contacts arranged in a single row with a standard 2.54 mm pitch, making it widely compatible with a range of board-to-board and wire-to-board connections in both automation and control applications. Its right angle orientation and through hole mounting style enable straightforward, robust installation on a PCB while maintaining a compact footprint to suit dense electronic designs.

Built from a polybutylene terephthalate insulated housing, the pin header offers superior electrical insulation and withstands a wide operating temperature range from -65°C to 105°C. Each contact is manufactured from durable brass and finished with a tin plating, combining high conductivity with corrosion resistance. The unshrouded breakaway feature allows users to reduce the header length to suit specific requirements, contributing to versatility during prototyping or mass production. This series supports a rated current up to 3 amps and a voltage of 750 volts, offering robust performance for a variety of signal and low-power connections.

Designed specifically with manufacturing efficiency in mind, all solder posts can be installed in a single operation to help minimize assembly time and labor costs. The product's male contacts provide compatibility with standard female housing connectors. Application scenarios include industrial controls, measurement and test equipment, telecommunications hardware, computers, storage equipment, and medical instrumentation, thanks to its high-reliability contact system and flexible mounting options. This header is compliant with typical board-level interconnect requirements found in advanced electronics systems.

Key technical details include a 2.54 mm row pitch, single row unshrouded configuration, brass contacts with tin plating, and a mounting tail pin length of 3.2 mm with a mating pin length of 6.7 mm. The solder termination type supports firm, permanent connections to the PCB, ensuring reliability in both static and dynamic environments. The design supports operating voltages up to 750V and currents up to 3A. The breakaway pin header style means pieces can be snapped to length as needed, reducing inventory on custom lengths and supporting engineering flexibility.

This pin header is an essential component for engineers designing or repairing electronic systems that require high-density, reliable, and versatile PCB interconnects. Its suitability for automation, industrial, telecommunications, and computing applications illustrates its adaptability for demanding environments.
