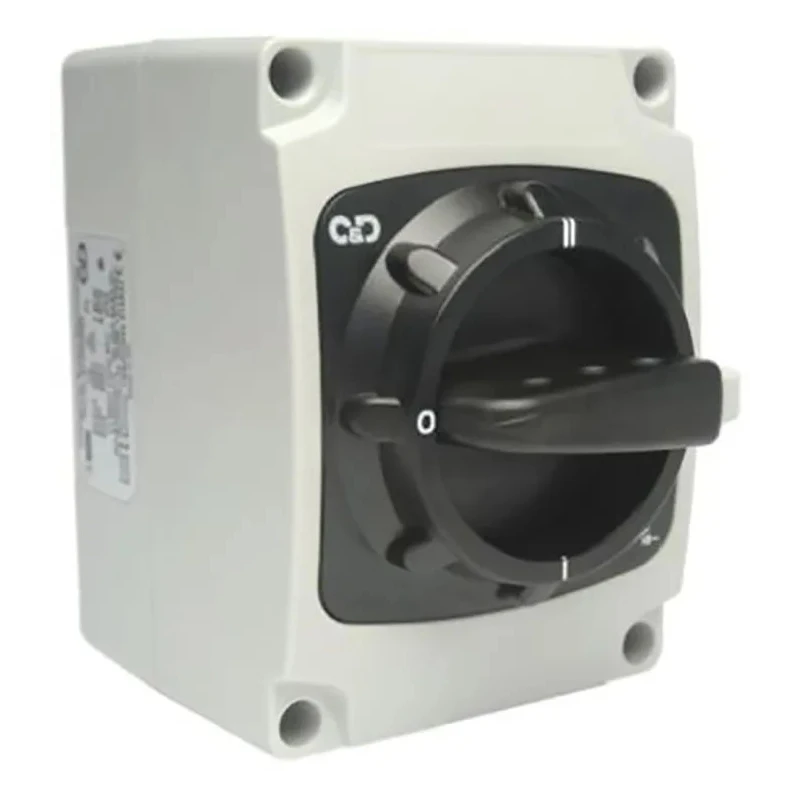

Craig & Derricott 4-Pole Base Isolator Switch IP65 40A 18.5 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Craig & Derricott |
| Length | 175mm |
| Model | IP65 |
| Depth | 115mm |
| IP Rating | IP65 |
| Width | 130mm |
| Mount Type | Base |
| Series | SCODP |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -5°C |
| Switching Current | 40A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Black |
| Number of Poles | 4 |
| Standards/Approvals | EN/IEC |
| Switching AC Voltage | 690V ac |
| Switching Power | 18.5kW |
| Kraus & Naimer, 4P 3 Position , 50A, Knob ActuatorBrand | Kraus & Naimer |
Key Features
- Equipped with a high impact polycarbonate enclosure ensuring durability.
- Features a base mount type with screw terminal connection for secure wiring.
- Supports up to 3 padlocks for enhanced safety lockout.
- Suitable for three-phase electrical systems with an electrical phase rating of 3.
- Provides auxiliary contacts for additional control and indication purposes.
- Rated for switching AC voltage up to 690V AC and switching current of 40A.
- Operates reliably between minimum -5°C and maximum 40°C temperatures.
- Compact dimensions of 175mm length, 130mm width, and 115mm depth.
Product Description
Craig & Derricott SCODP404/RS 4-Pole Base Isolator Switch is designed for reliable isolation in industrial, commercial, and electrical automation applications. Its base mounting and black handle provide ease of operation and secure installation.
The switch incorporates a high-impact polycarbonate on-load isolator enclosure with IP65 ingress protection, ensuring resistance against dust and water ingress suitable for harsh industrial environments.
It supports 40A switching current and 18.5 kW power rating, compatible with three-phase electrical systems rated up to 690V AC. Auxiliary contacts are included for remote signaling or control integration while allowing up to three padlocks for enhanced lockout safety.

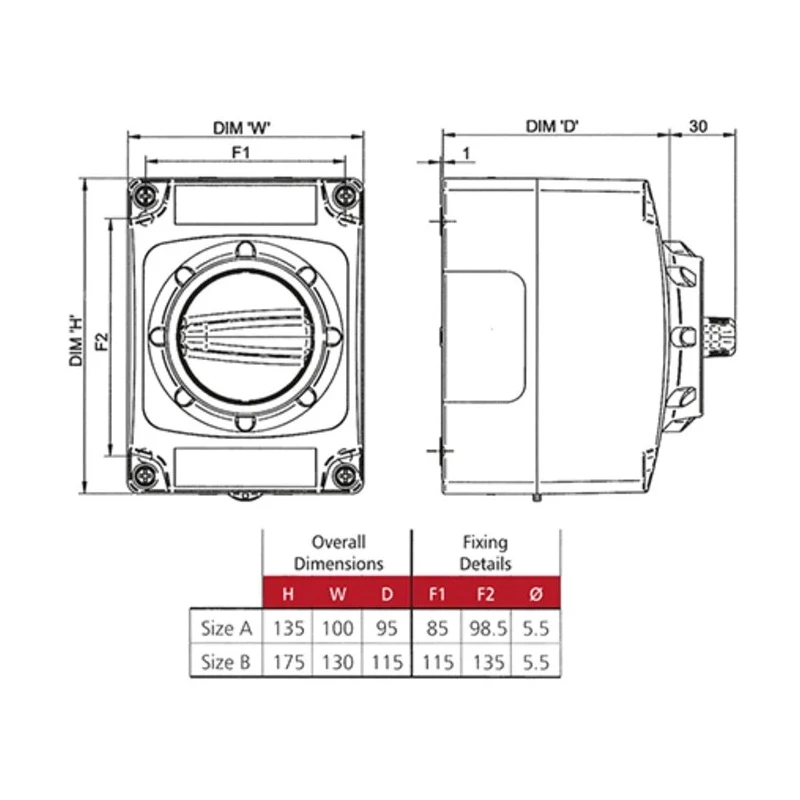

The device functions reliably across temperatures from -5°C to 40°C, providing robust electrical disconnect with screw terminal type connections. Dimensions measure 175mm in length, 130mm in width, and 115mm in depth, facilitating installation in standard switchboards.
Certified to EN/IEC standards and IEC/BS EN 60947-3 and IEC/BS EN 60947-5-1 for auxiliary contacts, this isolator is engineered for high performance and compliance in electrical systems.
High impact polycarbonate enclosure for durability. Base mount type for easy wiring and installation. Padlock compatible for up to 3 padlocks in off position. Includes neutral and earth terminals for safety. Auxiliary contacts available for system integration.
Rated for 40A switching current with 18.5 kW power capability. IP65 ingress protection against dust and moisture. Compact form factor: 175mm length, 130mm width, 115mm depth. Suitable for three-phase, 690V AC electrical systems.
Certified to EN/IEC standards.
This Craig & Derricott 4-Pole Base Isolator Switch is ideal for industrial, manufacturing, and electrical distribution uses requiring safe and compliant isolation switches. Browse more Isolator Switches and electrical control equipment at EnvMart for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a switching current of 40A and a power rating of 18.5 kW, compatible with three-phase electrical systems rated up to 690V AC.
This isolator switch has an IP65 ingress protection rating, ensuring resistance against dust and water ingress.
The dimensions are 175mm in length, 130mm in width, and 115mm in depth.
It operates reliably between a minimum temperature of -5°C and a maximum temperature of 40°C.
It features a base mount type with screw terminal connections for secure wiring.
Yes, it includes auxiliary contacts for additional control and indication purposes.
This switch supports up to three padlocks for enhanced safety lockout.
It is certified to EN/IEC standards and complies with IEC/BS EN 60947-3 and IEC/BS EN 60947-5-1 for auxiliary contacts.
The handle color of this model is black.
It features screw type terminals for secure electrical connections.
The isolator switch is manufactured in the United Kingdom.
It is designed for reliable isolation in industrial, commercial, and electrical automation applications.
