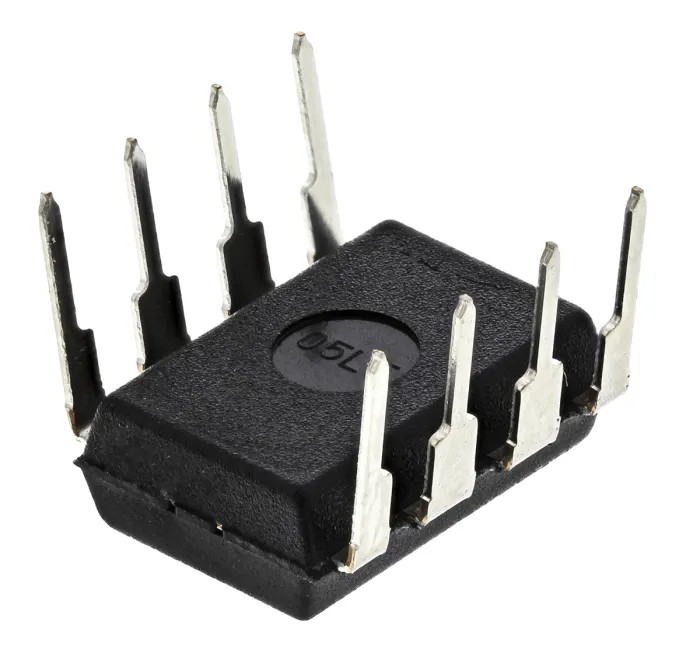

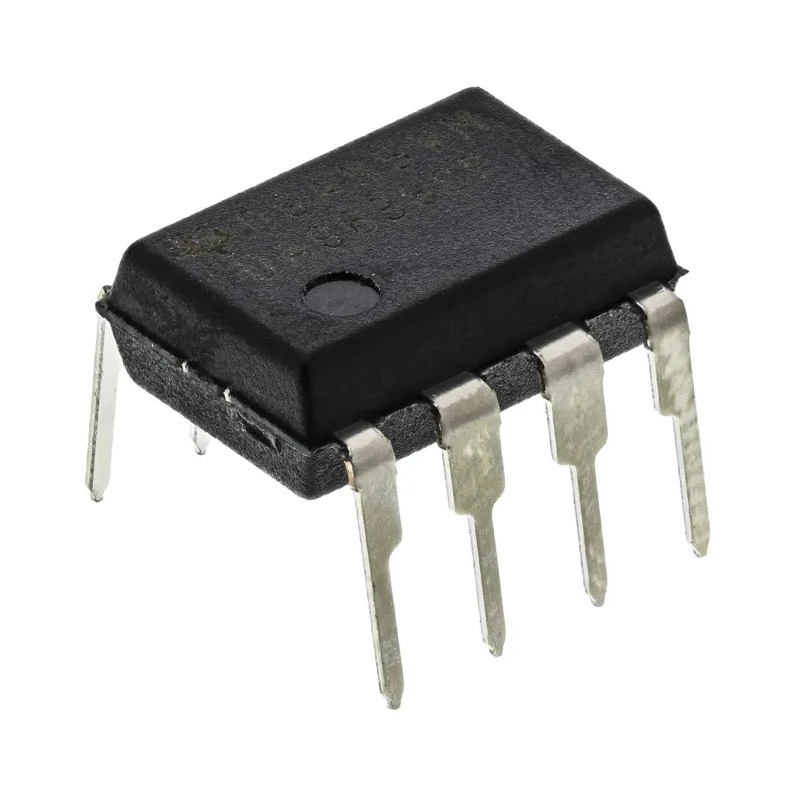

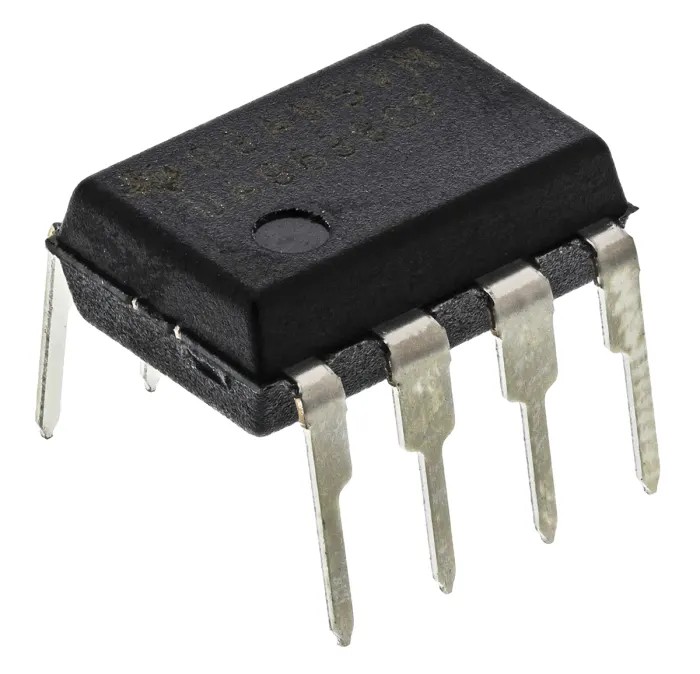

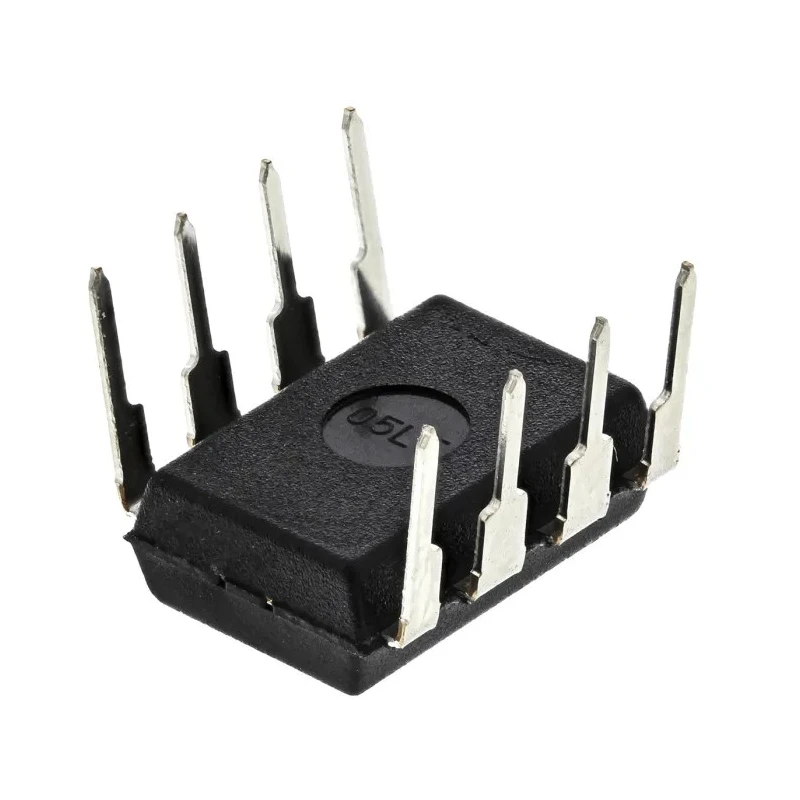

Texas Instruments Line Transmitter 8-Pin PDIP CMOS Through Hole 4.75-5.25V Supply UA9638CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | UA9638CP |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | UA9638C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Driver |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | CMOS |
| Logic Function | Transmitter |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -50mA |
| Maximum Propagation Delay Time @ CL | 20ns |
| Supply Current | 65mA |
| Maximum Low Level Output Current | 50mA |
Key Features
- Operates at supply voltage range of 4.75 to 5.25 volts.
- Utilizes CMOS logic technology for efficient transmission.
- Designed with a maximum propagation delay of 20 nanoseconds at capacitive load.
- Supports maximum output current of ±50 mA ensuring stable signal drive.
- Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
- Compact outline measuring 10.16 mm length, 6.6 mm width, and 5.08 mm height.
- Supply current consumption is approximately 65 mA.
- Compatible with RS-422 standards for reliable line driving.
Product Description
Texas Instruments UA9638CP is a line transmitter IC in an 8-pin PDIP package optimized for reliable data transmission in electronic systems. Featuring CMOS logic family and through-hole mounting, this device ensures compatibility with standard PCB layouts and signal requirements.
Operating within a supply voltage range of 4.75 to 5.25 volts, the UA9638CP transmits signals with a maximum propagation delay time of 20 nanoseconds at typical capacitive loads. It drives output currents up to ±50 mA, suitable for RS-422 line driving specifications.
This transmitter offers an operating temperature range from 0°C to 70°C, making it suitable for general industrial and commercial environments. Its compact dimensions of 10.16 mm by 6.6 mm by 5.08 mm aid in space-efficient circuit design.
The UA9638CP boasts a supply current of about 65 mA and does not include automotive standard compliance. Its PDIP packaging allows easy through-hole mounting, ensuring robustness and manufacturing ease.
Operates with 4.75V to 5.25V supply voltage range. CMOS logic technology for low power and high speed. Maximum propagation delay of 20 ns ensures rapid signal transmission. Drive current capability of ±50 mA ideal for line transmitter needs.
Operates in temperatures from 0°C to 70°C for industrial applications. Compact PDIP 8-pin package measuring 10.16 mm x 6.6 mm x 5.08 mm. 65 mA supply current consumption supports efficient operation. Complies with RS-422 line transmitter standards.
Suitable for use in industrial instrumentation, communication equipment, and electronic interface circuits.
This line transmitter is ideal for industrial electronics, communication systems, and measurement & testing instruments requiring robust and precise signal transmission. Users can rely on its compatibility and proven Texas Instruments quality for seamless integration.
Explore more related semiconductors and Line Interface ICs at EnvMart for your electronic component requirements.
