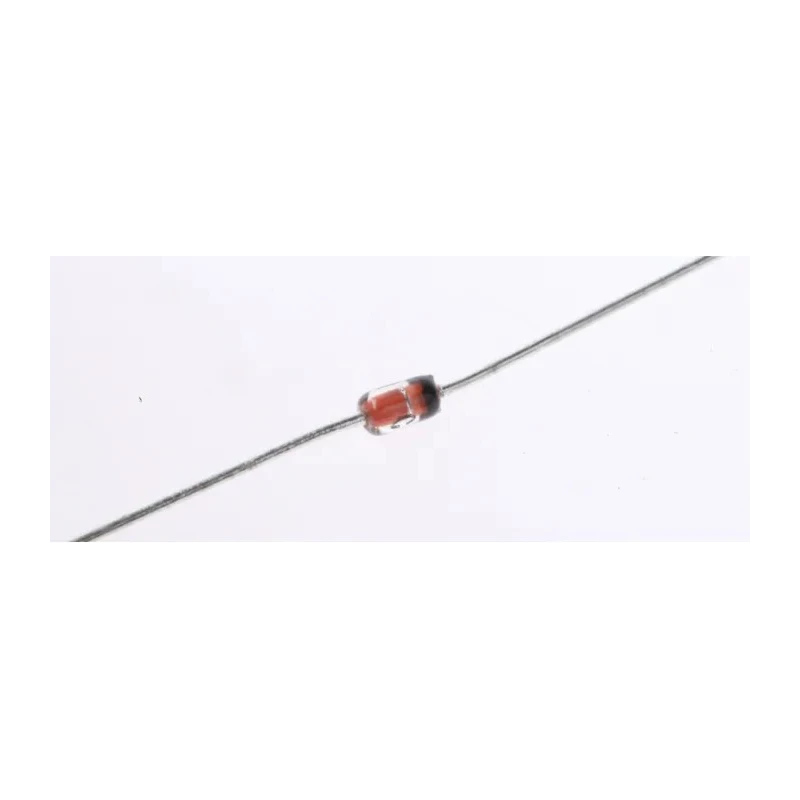

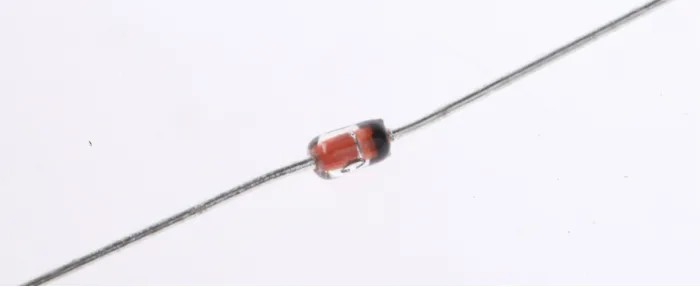

Nexperia 1.12 V Zener Diode Single 500 mW 5 % Through Hole 2-Pin SOD-27 BZX79-C12,113

Name: Nexperia 1.12 V Zener Diode Single 500 mW 5 % Through Hole 2-Pin SOD-27 BZX79-C12,113
Brand: Nexperia
SKU: 123498
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.85mm
Length	4.25mm
Model	BZX79-C12,113
Mount Type	Through Hole
Series	BZX79
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	12V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω
Typical Voltage Temperature Coefficient	8.4mV/°C
onsemi 1, 12 V Zener Diode, Single 500 mW 5 % Through Hole 2-Pin DO-35Brand	onsemi
12V Zener diode,BZX79C12 500mWBrand	NXP

Key Features

Nominal Zener voltage of 12 V with ±5% tolerance ensures stable voltage regulation.
Single diode configuration optimized for voltage regulation applications.
Maximum power dissipation rated at 500 mW for reliable performance.
Through hole mount type with 2-pin SOD-27 package for easy PCB integration.
Operating temperature range from -65°C to 200°C supports industrial environments.
Maximum reverse leakage current of 100 nA minimizes leakage losses.
Test current of 5 mA and maximum Zener impedance of 25 Ω provide precise voltage control.

Product Description

Nexperia BZX79-C12,113 1.12 V Zener Diode is a discrete semiconductor device designed for voltage regulation in electronic circuits. Featuring a single diode configuration with nominal Zener voltage of 12 V and ±5% tolerance, it offers precise voltage stabilization for sensitive electronic components.

This Zener diode is rated for a maximum power dissipation of 500 mW and is housed in a Through Hole 2-pin SOD-27 package, facilitating robust mounting on printed circuit boards. It operates efficiently over a wide temperature range from -65°C to 200°C, making it suitable for industrial, laboratory, and commercial electronics applications.

Its electrical characteristics include a test current of 5 mA, maximum Zener impedance of 25 Ω, and maximum reverse leakage current of 100 nA, ensuring reliable and stable operation in voltage regulation and overvoltage protection tasks. The diode’s compact size with dimensions of 4.25 mm length and 1.85 mm height helps optimize space in crowded assemblies.

This component is ideal for use in power supplies, regulators, and voltage reference circuits within electronics manufacturing and repair industries. Nominal Zener voltage of 12 V with ±5% tolerance ensures stable voltage regulation.

Single diode configuration optimized for voltage regulation applications. Maximum power dissipation rated at 500 mW for reliable performance. Through hole mount type with 2-pin SOD-27 package for easy PCB integration. Operating temperature range from -65°C to 200°C supports industrial environments.

Maximum reverse leakage current of 100 nA minimizes leakage losses. Test current of 5 mA and maximum Zener impedance of 25 Ω provide precise voltage control. Compact diode dimensions: length 4.25 mm and height 1.85 mm optimize space utilization.
