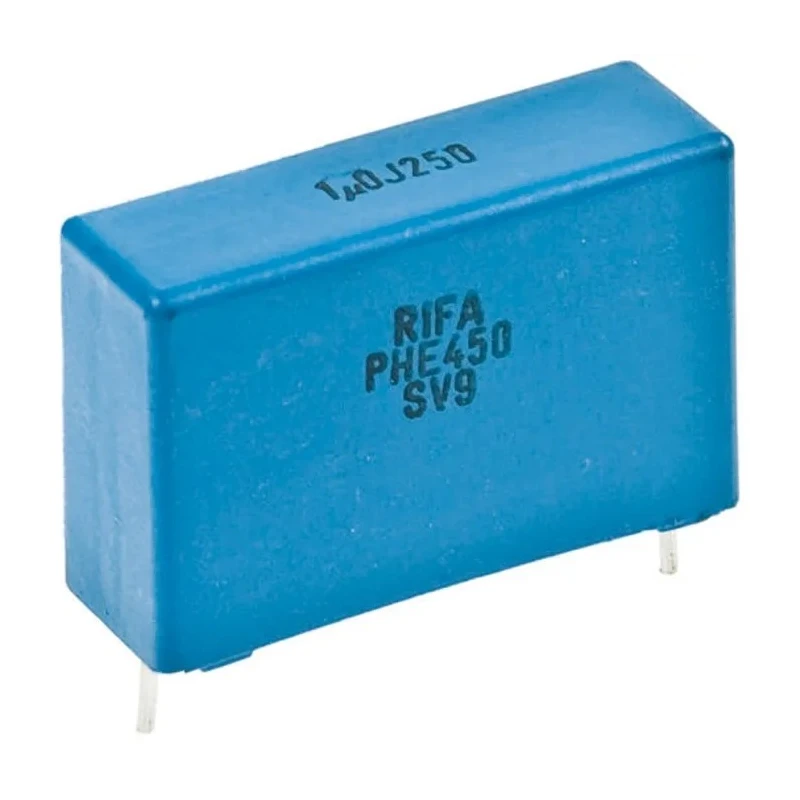

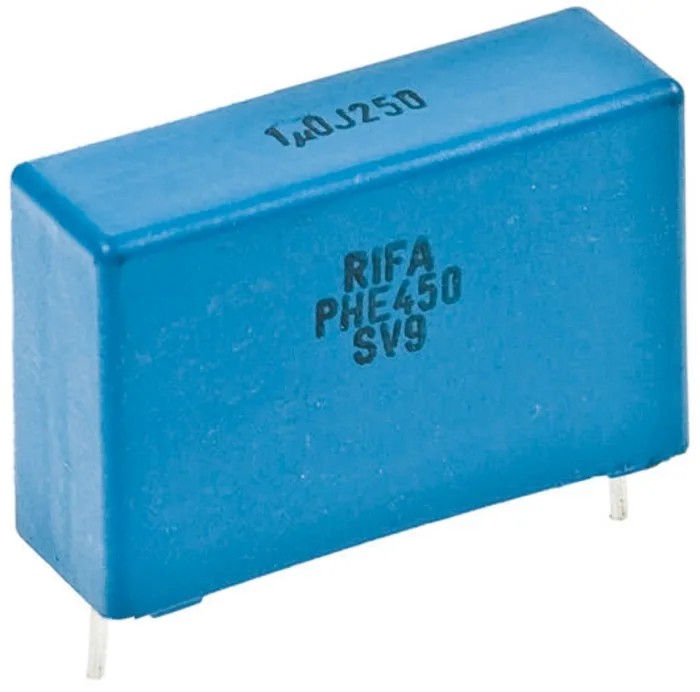

KEMET Metallized Polypropylene Film Capacitor Through Hole, 47 nF ±5 %, 400 V dc, 180 V ac, Radial Lead PHE450

KEMET PHE450 film capacitor, model PHE450KB5470JR06, is a high-quality metallized polypropylene pulse capacitor designed for industrial and electronic applications requiring stable capacitance and reliable performance. It has a capacitance of 47 nF with ±5 % tolerance, rated DC voltage of 400 V, and AC voltage rating of 180 V. This capacitor is through hole mounted with radial leads, ideal for insertion in PCBs with 15 mm lead pitch spacing. The capacitor is suitable for high current stress scenarios including protection circuits in switch mode power supplies and television deflection circuits.

The capacitor's encapsulation in a self-extinguishing resin meets UL 94 V-0 requirements, providing superior flame retardance for safety in industrial electrical environments. It features a long operational temperature range from -55 °C minimum up to 105 °C maximum, enabling use in demanding conditions. The low dissipation factor of 0.0003 % ensures minimal energy loss, enhancing circuit efficiency.

Key physical dimensions include 18 mm length, 5.5 mm width, and 10.5 mm height, with lead dimensions of 0.8 mm diameter and 6 mm length. The radial lead design with a 15 mm pitch simplifies PCB integration. Packaging is supplied in tape and reel format for automated assembly.

This component complies with RoHS regulations, making it environmentally safe for use in electronics manufacturing. The product is manufactured in Finland, assuring consistent quality and performance standards.

Common industrial uses include electronics manufacturing, power supply design, telecom equipment, consumer electronics, and electric circuits requiring high reliability and stable pulse performance.

Metallized polypropylene construction for pulse and snubber applications. Through hole radial lead mounting with 15 mm lead pitch. Rated for 400 V dc and 180 V ac voltage stresses. Wide operating temperature range from -55 °C to 105 °C.
