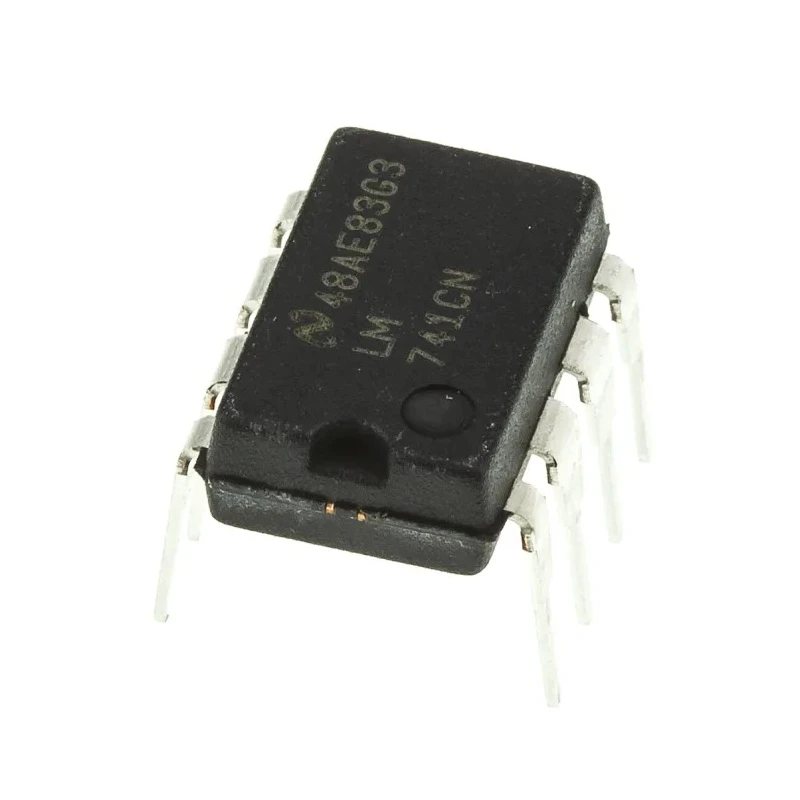

Texas Instruments Operational Amplifier 1 MHz, 8-Pin 18V MDIP LM741CN/NOPB
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | LM741CN/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM741 |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 10V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1.5 μA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 500 nA |
Key Features
- This operational amplifier features a single channel design suitable for various general purpose amplification tasks.
- It supports a supply voltage range from 10V to 18V, allowing flexible power configurations.
- The device has a low input bias current of 1.5 μA and an input offset voltage of 6 mV.
- Its slew rate is 0.5 V/μs, providing moderate response speed for signal handling.
- Designed for through-hole mounting, it is easy to integrate into prototype and production PCBs.
- Operates reliably from 0°C to 70°C, suitable for standard industrial applications.
- Compact physical dimensions include a length of 9.27 mm, width of 6.35 mm, and height of 3.3 mm.
- This model is manufactured in Malaysia, conforming to Texas Instruments’ LM741 series specifications.
Product Description
Texas Instruments LM741CN/NOPB is a general purpose operational amplifier featuring a 1 MHz gain bandwidth product. Packaged in an 8-pin MDIP through-hole form factor, it supports a maximum supply voltage of 18V and a minimum of 10V, making it versatile for many electronic applications.
This single-channel operational amplifier exhibits low input bias current of 1.5 μA and an input offset voltage of 6 mV, enabling precise analog signal amplification. The slew rate of 0.5 V/μs facilitates moderate speed signal transitions, suitable for standard analog circuits.
Its operating temperature range from 0°C to 70°C makes it reliable for industrial and laboratory environments. The compact size (9.27 mm length, 6.35 mm width, and 3.3 mm height) allows easy PCB integration under typical design constraints.
The LM741CN/NOPB is part of the LM741 series known for cost-effective performance in non-specialized applications, supporting through-hole mount designs for easier assembly. Manufactured in Malaysia, it adheres to stringent quality standards, but does not carry specific certification approvals.
This Operational Amplifier is designed for single-channel applications requiring reliable and cost-effective amplification. Its MDIP package ensures compatibility with standard through-hole mounting on PCBs. The 1 MHz gain bandwidth supports moderate frequency analog signal amplification needs.
Suitable for use in industrial, laboratory, and educational electronic equipment. Offers consistent performance across temperature and supply voltage variations within specified limits. Ideal for general-purpose amplification including voltage follower, summation amplifier, and active filter circuits.
Explore other semiconductor amplifiers and electrical components in the Electronics & Electricals category at EnvMart to find compatible and complementary devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, making it suitable for moderate frequency analog signal amplification tasks.
This model supports a supply voltage range from 10V to 18V, allowing for flexible power configurations in various applications.
The dimensions of this operational amplifier are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height, facilitating easy integration into PCBs.
The input bias current for this operational amplifier is 1.5 μA, which helps in achieving precise analog signal amplification.
The slew rate of this operational amplifier is 0.5 V/μs, providing moderate response speed for signal handling.
The input offset voltage for this model is 6 mV, which is important for maintaining accuracy in amplification tasks.
This operational amplifier operates reliably within a temperature range of 0°C to 70°C, making it suitable for standard industrial applications.
This model features a single channel design, making it suitable for various general-purpose amplification tasks.
The LM741CN/NOPB is designed for through-hole mounting, which simplifies its integration into prototype and production PCBs.
The maximum operating temperature for this operational amplifier is 70°C, ensuring reliable performance in various environments.
This operational amplifier is part of the LM741 series, known for cost-effective performance in non-specialized applications.
This operational amplifier is manufactured in Malaysia, conforming to Texas Instruments' specifications for the LM741 series.
