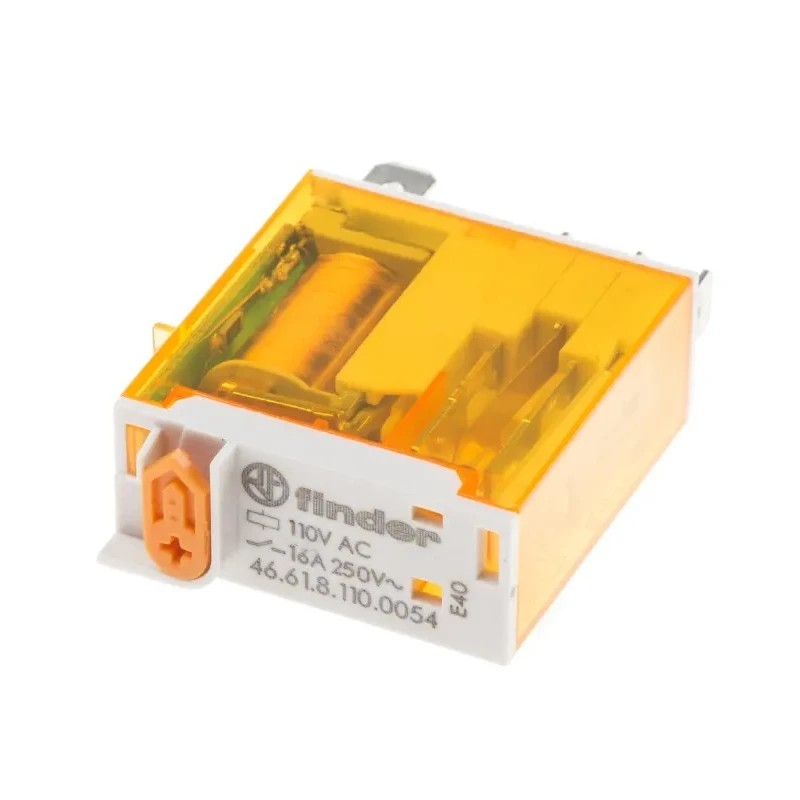

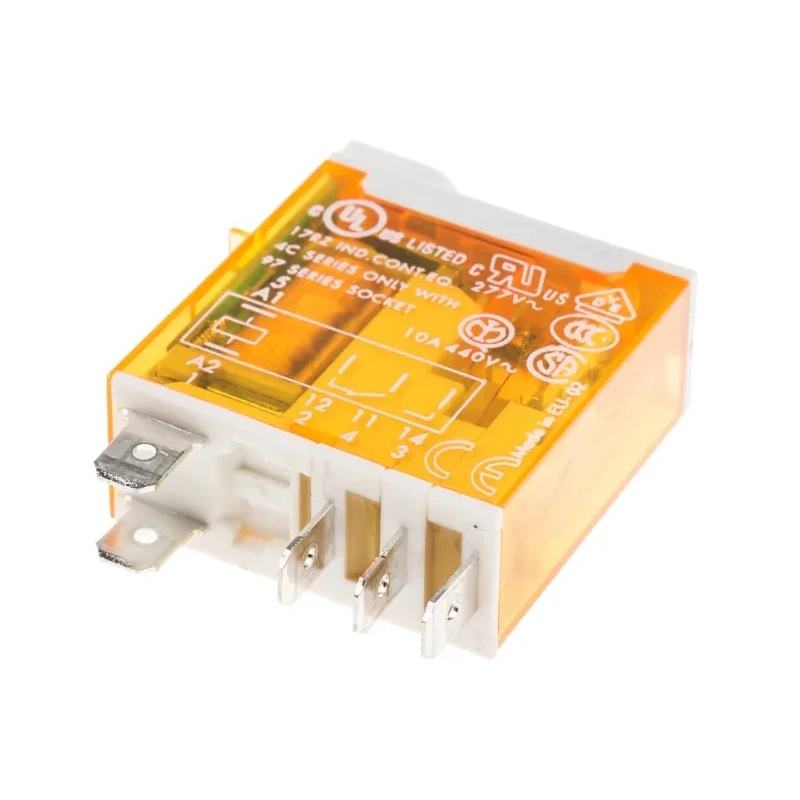

Finder PCB Power Relay 110V AC Coil 16A Switching Current SPDT 46.61.8.110.0054
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Quick Connect |
| Standards/Approvals | EAC, CE, RoHS |
| Coil Resistance | 6.9kΩ |
| Coil Voltage | 110V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 1.2W |
Key Features
- Compact design suitable for PCB mounting with quick connect terminals.
- Supports switching power up to 4 kVA for high load applications.
- Coil resistance is 6.9kΩ, with coil power consumption of 1.2W.
- Operates reliably in temperatures from -40°C to 70°C.
- Features silver alloy contacts ensuring excellent conductivity and durability.
- Provides isolation between coil and contact rated at 6 kV for enhanced safety.
- Maximum switching voltages are 440V AC and 125V DC.
Product Description
Finder 46.61.8.110.0054 PCB Power Relay with a 110V AC coil and 16A switching current is a compact and reliable component designed for industrial and automation applications. Featuring a single pole double throw (SPDT) contact configuration, this relay is suitable for PCB mounting with quick connect terminals, enhancing installation efficiency and maintenance.
This relay supports switching power up to 4 kVA, making it ideal for handling heavy electrical loads in industrial circuits. Its coil resistance of 6.9 kΩ and coil power of 1.2W ensures efficient operation with minimal energy consumption. The device works reliably within a wide temperature range of -40°C to +70°C, allowing usage in harsh environmental conditions typically found in industrial, manufacturing, and automation settings.
The silver alloy contact material provides excellent conductivity and durability, enhancing the relay's operational life. Enhanced safety is ensured through a 6 kV isolation between coil and contacts, minimizing electrical faults and improving system reliability. The relay withstands maximum switching voltages of 440V AC and 125V DC, accommodating diverse electrical systems.
With compact dimensions of 29mm length, 12.4mm width, and 32.8mm height, it offers a space-efficient solution for PCB mount installations in power control and automation circuits. Compact design for PCB mounting with quick connect terminals.
High switching current capacity of 16A supports demanding industrial applications. Safe operation with 6 kV coil-contact isolation. Wide operating temperature range from -40°C to 70°C. Durable silver alloy contacts ensure longevity and reliability.
Supports switching power up to 4 kVA for heavy duty loads. Coil power consumption is low at 1.2W for efficient use. Compact footprint with 29 x 12.4 x 32.8 mm dimensions.
This Finder relay is ideal for use in automation of blinds, grilles, elevators, lighting controls in tunnels and roads, as well as hoisting and crane operations in industrial plants. Its robust construction and certifications such as EAC, CE, and RoHS ensure compliance with industrial safety and quality standards.
Explore more Power Relays and industrial automation components at EnvMart for your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 16A, making it suitable for heavy electrical loads in industrial applications.
The coil voltage of this relay is 110V AC, which is essential for its operation in various electrical systems.
This relay has compact dimensions of 29mm in length, 12.4mm in width, and 32.8mm in height, allowing for efficient PCB mounting.
The isolation voltage between the coil and contacts is rated at 6 kV, providing enhanced safety in electrical applications.
This model operates reliably within a temperature range of -40°C to +70°C, suitable for harsh environmental conditions.
It features a single pole double throw (SPDT) contact configuration, allowing for versatile switching applications.
The coil resistance of this relay is 6.9 kΩ, which contributes to its efficient operation and low power consumption.
The maximum switching voltage for AC is 440V and for DC is 125V, accommodating various electrical systems.
The contacts of this relay are made of silver alloy, ensuring excellent conductivity and durability.
It uses quick connect terminals, which facilitate easier installation and maintenance on PCB mounts.
This model is certified with EAC, CE, and RoHS, ensuring compliance with industrial safety and quality standards.
The coil power consumption is 1.2W, which allows for efficient energy use during operation.
