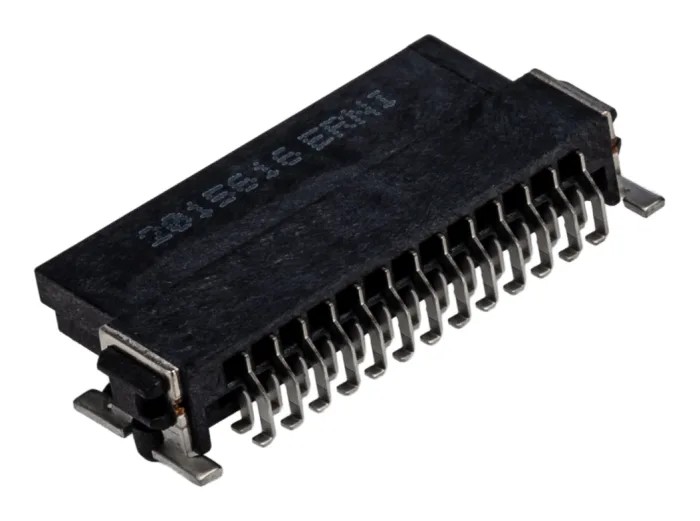

ERNI SMC Series Right Angle Surface PCB Socket 26-Contact 2 Row 1.27 mm Pitch Solder 154741 / 154741-E

Free Delivery in India | Lowest Global Shipping Charges

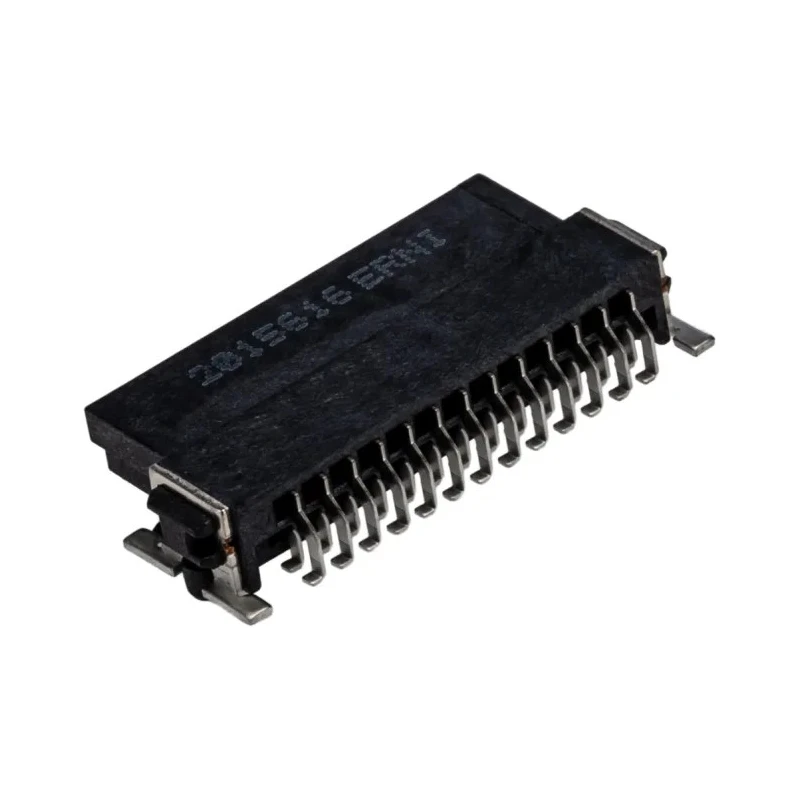

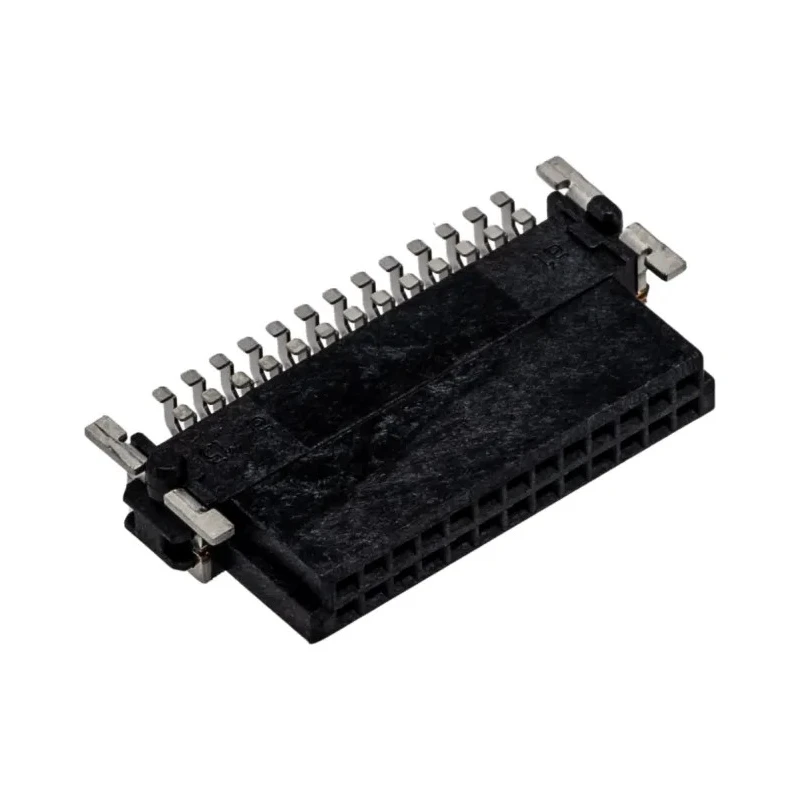

ERNI SMC Series Right Angle Surface PCB Socket 26-Contact 2 Row 1.27 mm Pitch Solder 154741 / 154741-E

Name: ERNI SMC Series Right Angle Surface PCB Socket 26-Contact 2 Row 1.27 mm Pitch Solder 154741 / 154741-E
Brand: ERNI
SKU: 123060
Price: 4.51 USD
Availability: InStock



Category PCB Socket Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Right Angle
Current	1.7A
Model	154741 / 154741-E
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	SMC
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	18.26mm
Row Pitch	1.5mm

Key Features

Compact, high density right angle PCB socket for board-to-board connection.
Features 26 female contacts arranged in 2 rows with a 1.27 mm pitch.
Constructed with liquid crystal polymer housing for UL 94 V-0 fire resistance.
Supports current rating of 1.7 A with copper alloy contacts plated with gold in mating area.
Wide operating temperature range from -55°C to 125°C ensures durability in harsh environments.
Includes locating pegs and soldering brackets for precise PCB placement and mechanical robustness.
Supports high-speed signal rates up to 3 Gbit/s for reliable data transmission.
Suitable for automated board assembly in industrial, automotive, medical, and communication fields.

Product Description

ERNI 154741 / 154741-E SMC Series right angle surface PCB socket features a 1.27 mm pitch, 26-contact, 2-row configuration designed for high-speed SMT board-to-board signal connection applications.

The socket is constructed with a liquid crystal polymer housing rated UL 94 V-0 for flame retardancy and equipped with copper alloy contacts featuring gold plating on mating areas for enhanced electrical performance and corrosion resistance.

This right angle connector provides a compact, high-density design with ultra-reliable dual beam contacts that maintain low resistance and high signal integrity, supporting transmission rates up to 3 Gbit/s.

The housing includes mating face polarization and insertion chamfers to prevent mis-mating and allow accurate connector insertion. Locating pegs on the bottom and soldering brackets provide secure PCB retention and vibration resistance, ensuring robust mechanical stability in applications with high shock and vibration exposure.

Designed to operate effectively in a wide temperature range from -55°C to 125°C, these connectors are suitable for a variety of industrial, automotive, communication, medical, and consumer electronics uses. The SMC Series socket supports fully automated board assembly processes enhancing manufacturing efficiency.

Compact right angle PCB socket with 26 contacts in a 2-row layout and 1.27 mm pitch solder termination. Liquid crystal polymer housing with UL 94 V-0 rating ensures fire resistance and durability. Copper alloy contacts with gold plating for superior electrical performance and connection reliability.

Ultra-reliable dual beam design supports high-speed signals up to 3 Gbit/s. Mating face polarization and locating pegs prevent mis-mating and aid precise PCB positioning. Soldering brackets provide high retention force and mechanical stress absorbing capacity.

Wide operating temperature range from -55°C to 125°C for varied environmental conditions. Ideal for automated assembly in industrial, automotive, communication, medical, and consumer electronics sectors. Explore more PCB Socket solutions and ERNI brand connectors at EnvMart for your electronic component needs.
