JST SH Series Right Angle Surface PCB Header 2 Contact 1 mm Pitch 1 Row Shrouded SM02B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

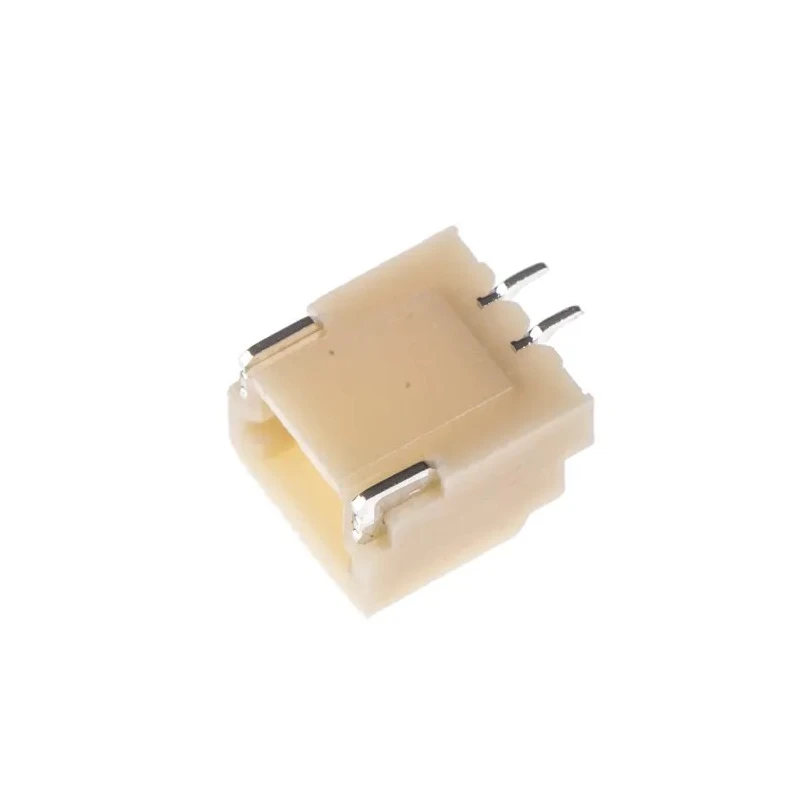

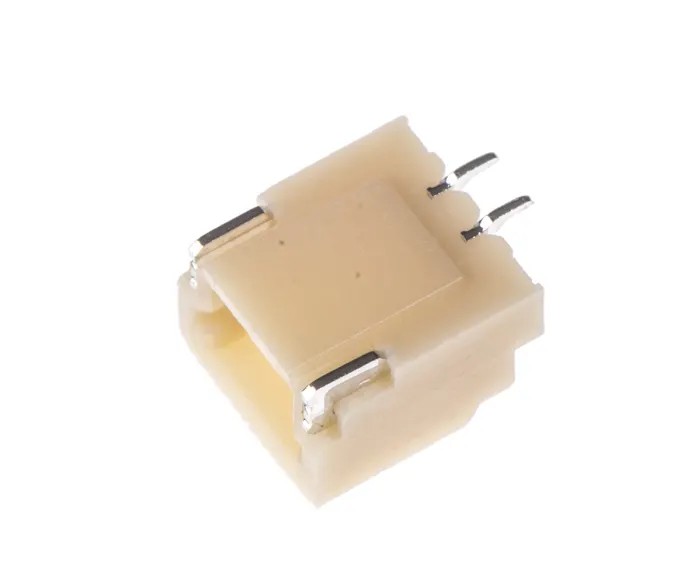

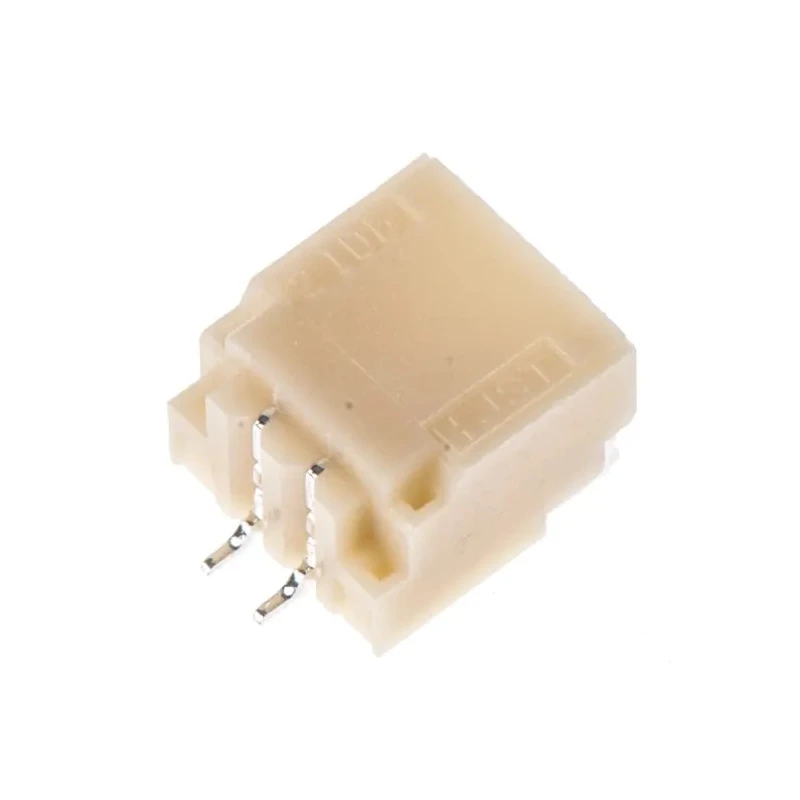

JST SH Series Right Angle Surface PCB Header 2 Contact 1 mm Pitch 1 Row Shrouded SM02B-SRSS-TB(LFSN)



Category PCB Connectors & Wire Housings Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM02B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Connector,PCB,side entry,1mm pitch,2 wayBrand	JST

Key Features

Features a shrouded housing made from durable polyamide for protection.
Has 2 male contacts spaced at a 1 mm pitch in a single row configuration.
Rated for 1 amp current and 50 volts operating voltage.
Contact material is copper alloy with tin plating for reliable conduction and solder termination.
Designed for surface mount technology with solder termination type.
Operates within a temperature range of -25°C to 85°C for versatile environmental conditions.
Side entry, right angle orientation saves PCB space and facilitates convenient cable routing.
Ideal for compact electronic component assembly and wire-to-board integration.

Product Description

JST SM02B-SRSS-TB(LFSN) is a high quality Right Angle Surface PCB Header designed for wire-to-board interconnection applications. Featuring a compact 1 mm pitch with 2 male contacts arranged in a single row, this PCB header supports reliable electrical connections at 1 ampere current and 50 volts voltage rating.

The housing is made of durable polyamide and is shrouded for added protection, ensuring secure mating and long service life. Contacts are constructed from copper alloy with tin plating to provide excellent conductivity and solderability.

Its surface mount type and solder termination enable efficient PCB assembly with mechanical reinforcement from solder tabs. The connector’s right angle orientation and side entry design allow PCB designers to optimize space and routing convenience.

This PCB header operates reliably within a temperature range from -25°C to 85°C, making it suitable for a variety of electronics applications including industrial, telecommunications, and consumer devices that require compact, robust wire-to-board connectivity.

Shrouded polyamide housing for protection and durability. 2 contacts spaced at 1 mm pitch for compact wiring. Copper alloy contacts with tin plating ensure conductivity. Right angle, side entry orientation for PCB space optimization.

1 amp current and 50 volts voltage rating for low power circuits. Surface mount termination for easy PCB integration via solder. Wide operating temperature range from -25°C to 85°C. Suitable for industrial, telecommunications, consumer electronics.

Set contains 1 Pc JST SH Series Right Angle Surface PCB Header SM02B-SRSS-TB(LFSN). Ideal for Electronics Components category browsing and JST branded connector selection on EnvMart.
