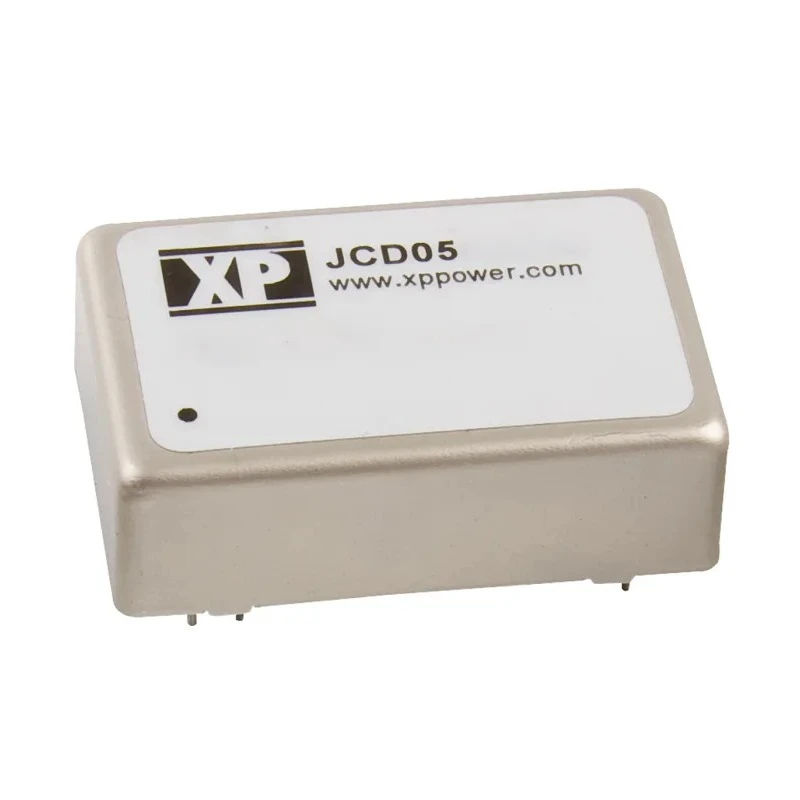

XP Power Isolated DC/DC Converter 5V DC ±5V Dual Output 500mA 4.5 - 9V Input 5W Through Hole DIP JCD0505D05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 5V dc/ 500 mA, 9V dc |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 31.75mm |
| Model | JCD0505D05 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 500mA |
| Output Voltage Adjustment Range | ±4.95 V dc, ±5.05 V dc |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
Key Features
- Provides isolated dual output voltages of +5V and -5V DC with up to 500mA current per channel.
- Accepts a wide input voltage range from 4.5V to 9V DC, supporting versatile power supply configurations.
- Maximum output power of 5 watts ensures reliable operation in demanding electronic circuits.
- Designed for through hole mounting in DIP package for easy integration into PCBs.
- Features high isolation voltage of 1.6kV DC for enhanced safety and circuit separation.
- Compact dimensions (31.75mm x 20.32mm x 10.4mm) allow for efficient board space usage.
- Suitable for board-level power conversion, industrial, and commercial applications.
- Operates reliably across a temperature range from -40°C to 100°C.
Product Description
XP Power JCD0505D05 offers a robust isolated DC/DC converter engineered for board-level power management in industrial and commercial electronic systems. This model outputs dual voltages of +5V and -5V DC with a maximum current capability of 500mA per channel, making it suitable for sensitive circuits requiring positive and negative rails.
The converter accepts a wide input voltage range, operable from 4.5V to 9V DC, which provides flexibility for diverse input sources and allows for seamless integration into varying system designs. Its maximum output power of 5 watts meets the requirements of small to medium-sized electronics, controllers, sensors, and embedded modules.
Key features include high isolation voltage of 1.6kV DC, ensuring reliable electrical separation between input and output. This protects both upstream and downstream components from voltage surges and noise, significantly enhancing operational safety. Continuous short circuit protection further improves reliability and equipment longevity.
The JCD0505D05 is built in a compact industry-standard DIP package (31.75mm x 20.32mm x 10.4mm), designed for through hole mounting, which simplifies PCB assembly and replacement. It supports dual output operation with an adjustment range of ±4.95V to ±5.05V DC, delivering stable voltage performance across its load range.
The converter maintains consistent performance across a wide ambient temperature range (-40°C to +100°C), ensuring suitability for harsh and demanding environments. With a mean time between failures (MTBF) of 1.1 million hours, system architects can rely on exceptional service life and minimal downtime.
Efficiency is rated at 79%, reducing heat dissipation and optimizing power usage in applications such as industrial controllers, IoT devices, sensors, communication modules, medical electronics, and laboratory equipment. Board mounting is simplified by its 8-pin DIP package, and dual output rails allow simultaneous powering of op-amp circuits and mixed-signal modules.
Provides isolated dual output voltages of +5V and -5V DC with up to 500mA current per channel. Accepts a wide input voltage range from 4.5V to 9V DC, supporting versatile power supply configurations. Maximum output power of 5 watts ensures reliable operation in demanding electronic circuits.
Designed for through hole mounting in DIP package for easy integration into PCBs. Features high isolation voltage of 1.6kV DC for enhanced safety and circuit separation. Compact dimensions (31.75mm x 20.32mm x 10.4mm) allow for efficient board space usage.
Suitable for board-level power conversion, industrial, and commercial applications. Operates reliably across a temperature range from -40°C to 100°C.
EnvMart provides advanced DC/DC converter solutions for electronics, laboratory, and industrial automation. Explore the complete XP Power JCD series for additional functionalities.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5 watts, ensuring reliable operation in demanding electronic circuits.
It accepts a wide input voltage range from 4.5V to 9V DC, allowing for flexibility in power supply configurations.
This model provides isolated dual output voltages of +5V and -5V DC, with up to 500mA current per channel.
It features a high isolation voltage of 1.6kV DC, which enhances safety and circuit separation.
The dimensions of this model are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
The efficiency of this unit is rated at 79%, which helps to reduce heat dissipation and optimize power usage.
It operates reliably across a temperature range from -40°C to 100°C, making it suitable for harsh environments.
This converter is designed for through hole mounting in a DIP package, which simplifies integration into PCBs.
The mean time between failures (MTBF) for this model is 1.1 million hours, indicating exceptional service life.
It can provide up to 500mA current per channel, suitable for powering sensitive circuits.
This model complies with RoHS standards, ensuring it meets environmental regulations.
This unit has two outputs, allowing for dual output operation.
