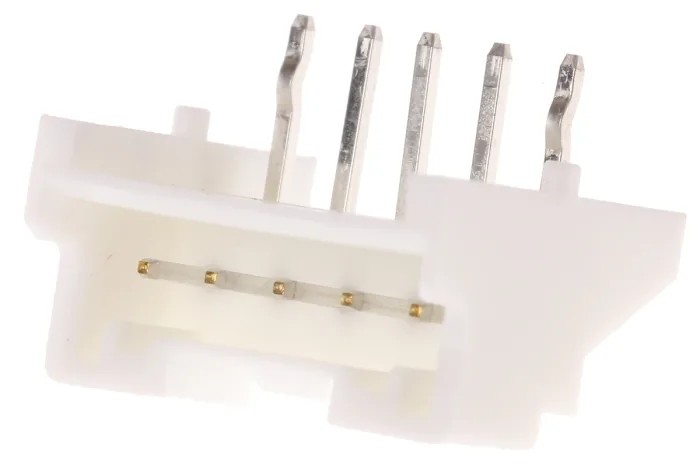

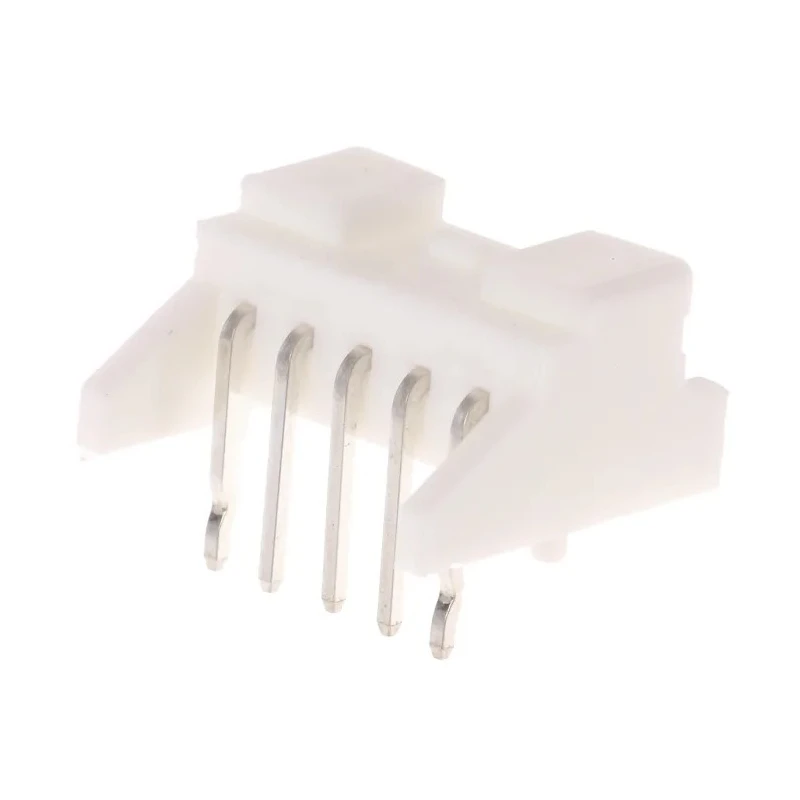

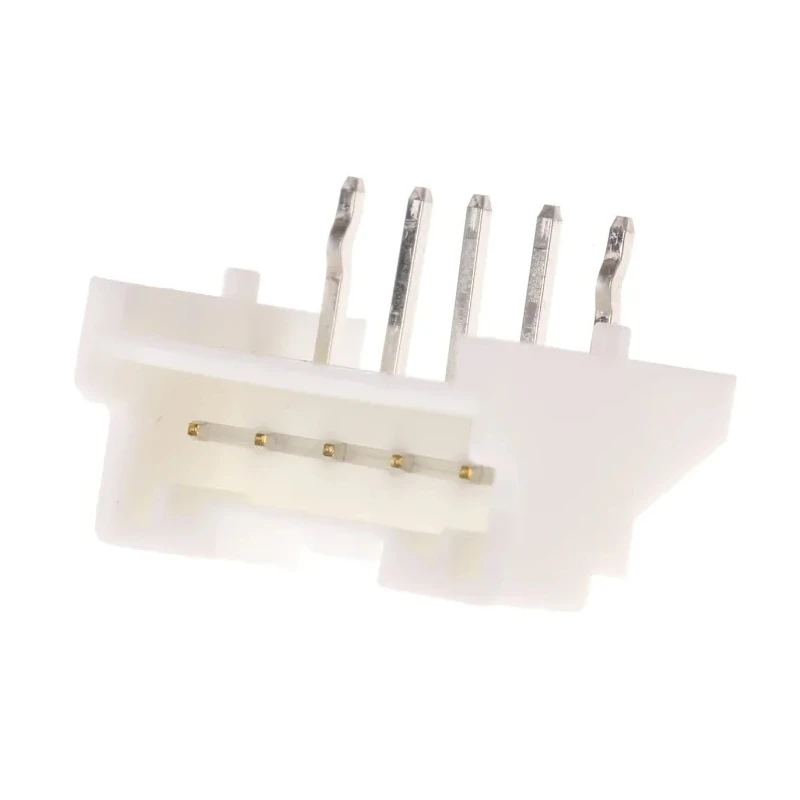

JST PA Series Right Angle Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded S05B-PASK-2 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded S05B-PASK-2 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S05B-PASK-2 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

The connector system supports wire-to-board connection with a secure locking mechanism.
Designed with copper alloy contacts plated in tin for reliable electrical performance.
Operates safely within a voltage of 250V and current rating of 3A.
Features a mating pin length of 3 mm and low insertion force header pins.
Rated for operating temperatures between -25°C and 85°C.
Includes polarising guides for easy and secure insertion during assembly.
The shrouded design enhances protection and prevents accidental disconnection due to vibration.
Suitable for industrial and electronic applications requiring dependable wire-to-board connections.

Product Description

JST S05B-PASK-2 (LF) (SN) PCB Header is a high-quality right angle, through hole connector designed with 5 contacts on a 2 mm pitch in a single row configuration. The shrouded header provides mechanical protection and prevents accidental contact or disconnection, enhancing durability and reliability in industrial and electronic assembly environments.

Constructed with copper alloy for the contact material and plated with tin, this connector ensures stable electrical conductivity suitable for 3 amp current and up to 250 volts. The mating pins are 3 mm long, enabling secure and low insertion force connections, supported by polarising guides for correct orientation and easy insertion.

The device is suitable for operating temperatures ranging from -25°C to 85°C, making it compatible with a broad range of environmental conditions. Its wire-to-board connector system and through hole mounting type allow it to be used effectively in various industrial, manufacturing, and electronic applications where robust, vibration-resistant connections are crucial.

This PCB header is part of the JST PA Series, widely recognized for reliable interconnection performance on a 2.0 mm pitch, making it ideal for applications requiring compact and secure PCB connections.

The connector system supports wire-to-board connections with locking features to prevent accidental disassembly. Made of copper alloy contacts plated in tin for corrosion resistance and consistent conductivity. Rated for 3A current and 250V voltage with a mating pin length of 3 mm.

Designed for operating temperatures from -25°C up to 85°C to withstand diverse environments. Right angle orientation with shrouded protection enhances safety and durability. Low insertion force header pins reduce wear and facilitate assembly.

Includes polarising guides to ensure correct and secure mating with housings. Applications include industrial electronics, PCB assemblies, and vibration-resistant wire-to-board connections. Explore more JST PCB Headers and connectors on EnvMart to find the right component for your electronic designs and industrial installations.
