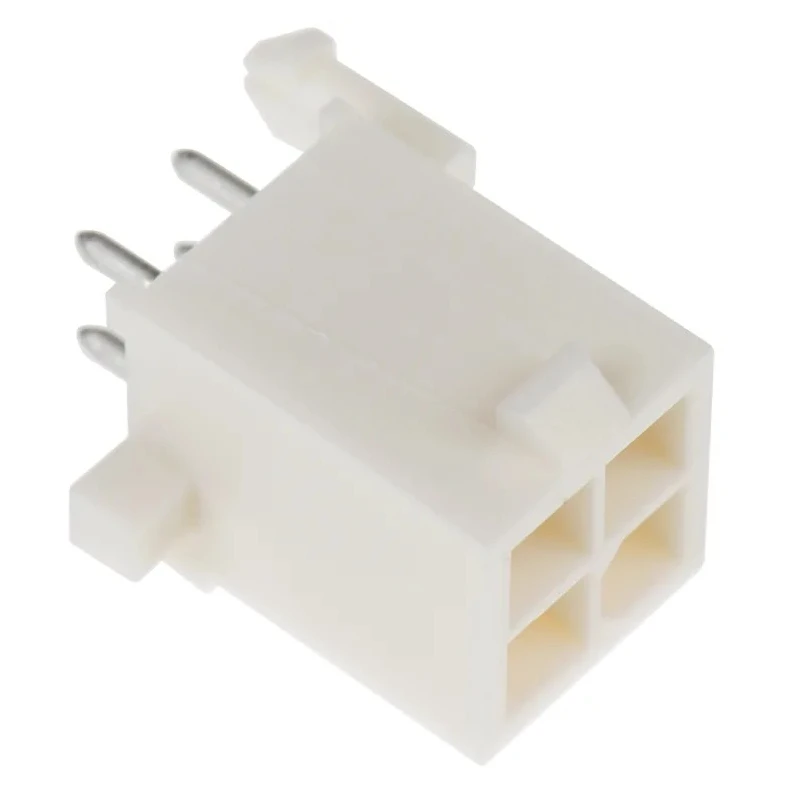

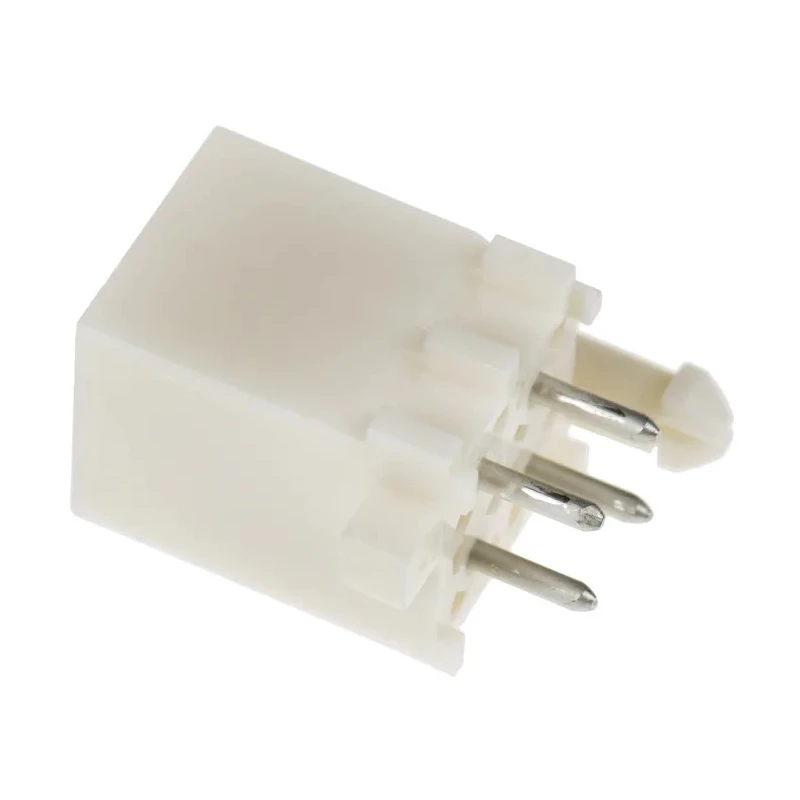

TE Connectivity Mini-Universal MATE-N-LOK Series 4 Straight Through Hole PCB Header, 4 Contacts, 4.14 mm Pitch, 2 1-770174-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Supports a maximum current of 9.5 amps for efficient power handling.
- Features a 4.14 mm pitch spacing with 4 brass contacts arranged in 2 rows.
- Constructed with a nylon housing and tin-plated brass contacts for corrosion resistance.
- Designed for through-hole mounting with a straight orientation and shrouded design for secure mating.
- Operates reliably within a temperature range from -55°C to 105°C.
- Includes a 3.69 mm tail pin length optimized for solder termination.
- Incorporates a positive locking latch and board retention features to ensure secure connection.
- Ideal for use in electronic components, power connectors, and PCB assemblies.
Product Description
TE Connectivity 1-770174-0 Mini-Universal MATE-N-LOK Series 4 Straight Through Hole PCB Header is engineered for robust wire-to-board connections in electronic and industrial applications. This connector supports a current rating of 9.5 amps and a voltage rating of 600 volts, making it suitable for power distribution and signal transmission tasks.
Constructed with a durable white UL94V-0 nylon housing, the connector features 4 brass contacts with tin plating. The 4.14 mm pitch and 2-row arrangement allow for compact yet effective PCB assembly. The straight orientation and shrouded design incorporate a positive locking latch system that ensures secure mating and reliable board retention.
The connector is designed for through-hole solder termination, facilitating stable mounting and electrical performance. It operates efficiently over a wide temperature range from -55°C to 105°C, suitable for various industrial, manufacturing, and electronic environments.
Applications include electronic component manufacturing, power connectors in industrial equipment, PCB assembly, and electrical wiring harnesses. The connector is part of the proven Mini-Universal MATE-N-LOK series known for quality and reliability.
Supports a maximum current of 9.5 amps for efficient power handling. Features a 4.14 mm pitch spacing with 4 brass contacts arranged in 2 rows. Constructed with a nylon housing and tin-plated brass contacts for corrosion resistance.
Designed for through-hole mounting with a straight orientation and shrouded design for secure mating. Operates reliably within a temperature range from -55°C to 105°C. Voltage rating of 600 volts suitable for various industrial applications.
Includes a 3.69 mm tail pin length optimized for solder termination. Incorporates a positive locking latch and board retention features to ensure secure connection. Ideal for use in electronic components, power connectors, and PCB assemblies.
Complies with industry standards though no specific certifications are listed.
Explore the extensive range of TE Connectivity connectors and PCB components available on EnvMart to optimize your electrical and electronics projects with high-quality and reliable parts.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 9.5 amps, making it suitable for efficient power handling in various applications.
The voltage rating for this model is 600 volts, which is appropriate for power distribution and signal transmission tasks.
It features a nylon housing and tin-plated brass contacts, ensuring corrosion resistance and reliable performance.
The pitch size of the contacts is 4.14 mm, allowing for compact assembly on PCBs.
This connector has 4 brass contacts arranged in 2 rows, designed for effective connectivity.
The tail pin length is optimized at 3.69 mm for effective solder termination during installation.
It operates reliably within a temperature range from -55°C to 105°C, suitable for various industrial environments.
This model is designed for through-hole mounting, facilitating stable installation and electrical performance.
Yes, it incorporates a positive locking latch and board retention features to ensure a secure connection.
This model utilizes a wire-to-board connector system, making it suitable for various electronic applications.
While it complies with industry standards, no specific certifications are listed for this model.
The connector has a straight orientation, which aids in easy installation on PCBs.
