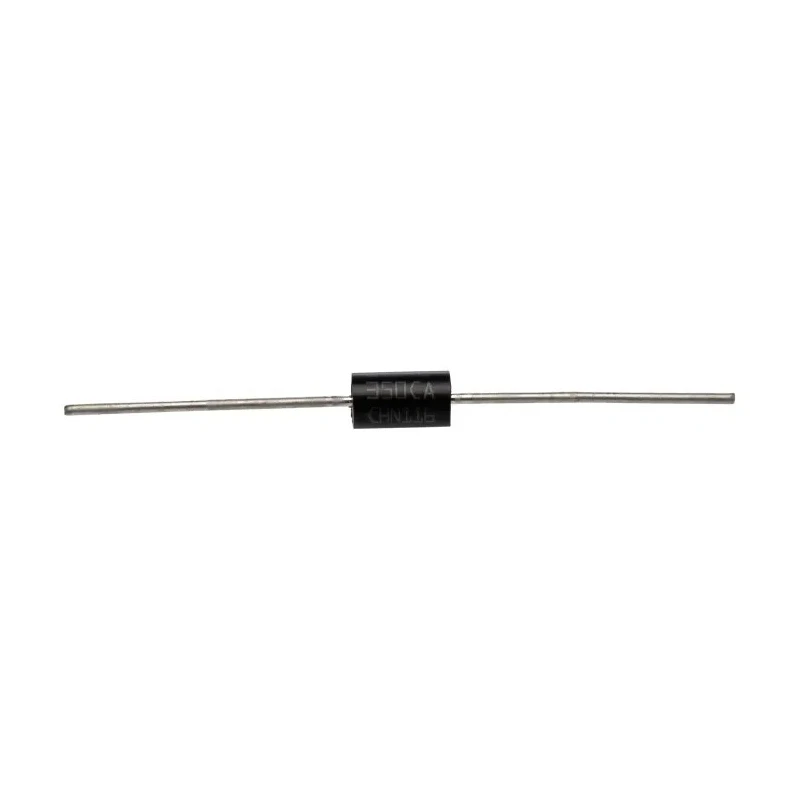

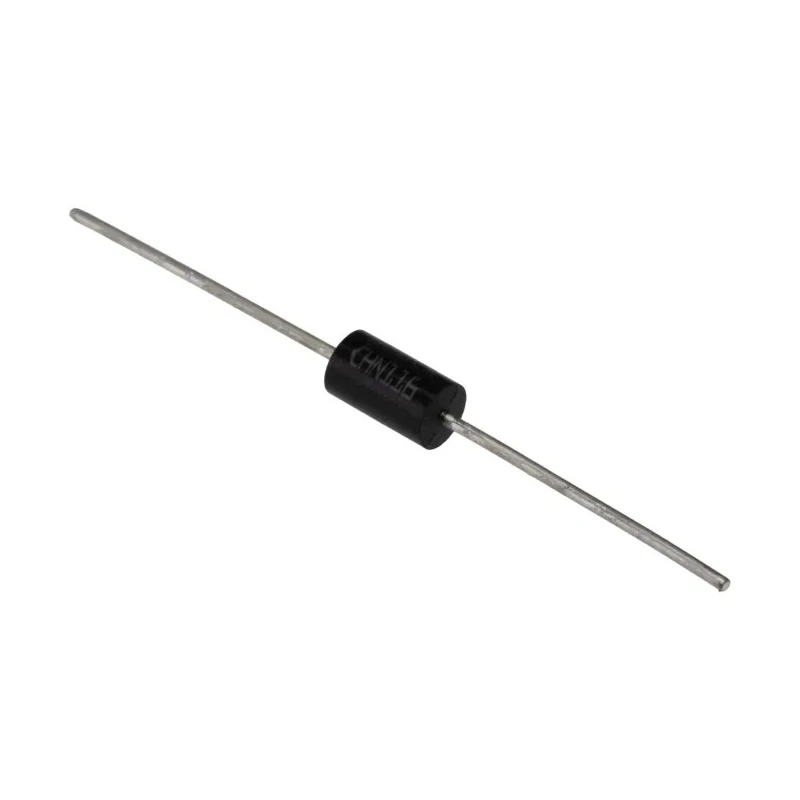

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, Through Hole DO-201 Package 1.5KE350CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE350CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 618V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 332V |
| Maximum Reverse Stand-off Voltage Vwm | 299V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration with bi-directional voltage clamping capability.
- Minimum breakdown voltage of 332 V and maximum reverse stand-off voltage of 299 V.
- DO-201 through hole package with 2 pins and axial lead form factor.
- Clamping voltage of 618 V ensures protection against voltage spikes.
- Wide operating temperature range from -65°C up to 175°C.
- Maximum peak pulse current of 16 A for handling transient events.
- Low maximum reverse leakage current of 1 μA for energy efficiency.
- Robust design suitable for industrial and electronic applications requiring voltage transient protection.
Product Description
STMicroelectronics 1.5KE350CA is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits against voltage spikes and transients. Featuring a peak pulse power dissipation of 1.5 kW, this diode operates reliably within a wide temperature range of -65°C to 175°C, making it suitable for demanding industrial, automotive, and consumer electronic circuit protection.
This device is housed in a robust DO-201 through hole package with axial leads and contains a single bi-directional diode. The minimum breakdown voltage is rated at 332 V with a maximum reverse stand-off voltage of 299 V, providing effective voltage clamp performance at a clamping voltage of 618 V. The diode can handle peak pulse currents up to 16 A, ensuring high transient surge tolerance.
The maximum reverse leakage current is very low at 1 μA, enhancing power efficiency and reducing leakage losses in sensitive circuits. It is tested with a standard 1 mA current to validate performance characteristics. With a compact size of approximately 9.5 mm length and 5.3 mm diameter, it easily integrates onto printed circuit boards in discrete semiconductor applications requiring reliable transient protection.
This TVS Diode is ideal for use in industrial controls, power supplies, automotive electronics, telecommunications equipment, and other applications sensitive to transient voltage damage. Designed for through hole mounting, it facilitates easy assembly and replacement in various systems.
Single diode, bi-directional configuration for superior transient voltage clamp. 1.5 kW peak pulse power dissipation for robust surge protection. Wide operating temperature range from -65°C to 175°C. Compact DO-201 axial package ensures easy through hole installation.
Low leakage current improves circuit efficiency and reliability. Suitable for industrial, automotive, and electronic device transient suppression. Explore more semiconductor protection devices and components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the STMicroelectronics 1.5KE350CA is 1.5 kW, providing robust surge protection against transient voltage spikes.
The clamping voltage of this model is 618 V, which ensures effective voltage clamping during transient events.
This TVS diode operates within a wide temperature range from -65°C to 175°C, making it suitable for various applications.
The maximum reverse stand-off voltage for this diode is 299 V, which helps protect circuits from overvoltage conditions.
This model contains a single element in its configuration, designed for bi-directional voltage clamping.
The maximum peak pulse current that the 1.5KE350CA can handle is 16 A, allowing it to manage significant transient events effectively.
The maximum reverse leakage current for this diode is 1 μA, which enhances energy efficiency in sensitive circuits.
This diode is housed in a DO-201 through hole package, facilitating easy installation onto printed circuit boards.
The dimensions of this diode are approximately 9.5 mm in length and 5.3 mm in diameter, making it compact for various applications.
The minimum breakdown voltage of the 1.5KE350CA is rated at 332 V, providing reliable protection against voltage spikes.
This model has a pin count of 2, which is typical for its through hole mounting configuration.
This TVS diode is suitable for use in industrial controls, power supplies, automotive electronics, and telecommunications equipment, among others.
