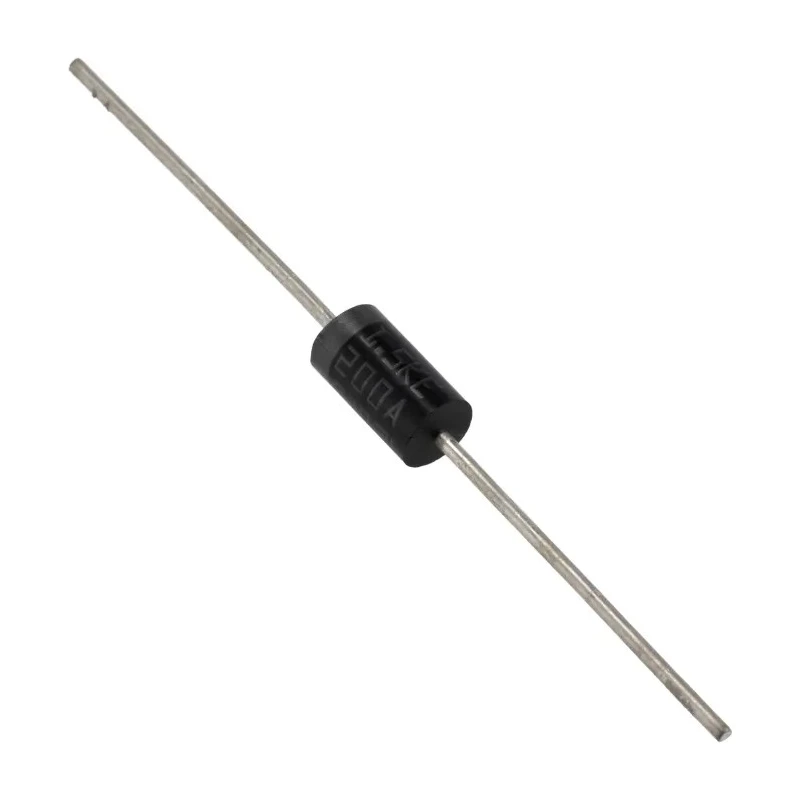

STMicroelectronics 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-201 1.5KE200A

STMicroelectronics 1.5KE200A is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) Diode designed for protecting circuits from potentially damaging voltage spikes. It delivers a peak pulse power dissipation of 1.5 kW in a compact and robust 2-Pin DO-201 through hole package, suitable for various industrial and electronic applications.

This TVS diode is configured as a single element with a uni-directional direction type, providing targeted surge protection. It features a minimum breakdown voltage of 190 volts and a maximum reverse stand-off voltage of 171 volts, ensuring precise electrical behavior during transient events. The device clamps voltage spikes at a maximum of 353 volts to shield sensitive components effectively.

With an operating temperature range from -65°C to 175°C, the 1.5KE200A can perform reliably across a wide range of environmental conditions. Its physical dimensions of 9.5 mm length and 5.3 mm diameter facilitate integration into through hole PCB designs, making it practical for industrial, electronics manufacturing, and repair applications.

The diode is part of the 1.5KE series by STMicroelectronics, known for quality transient voltage suppression solutions for power supplies, data lines, and other critical electronic systems.

Single diode configuration offers efficient transient voltage suppression. Uni-directional direction type ideal for protecting circuits from voltage spikes. Minimum breakdown voltage of 190 volts ensures precise clamping action.

Withstands maximum reverse stand-off voltage of 171 volts. Peak pulse power dissipation rated at 1.5 kW for robust surge protection. Clamp voltage up to 353 volts to safely handle transient surges. Operational temperature range from -65°C to 175°C for varied environments.

Package size dimensions approximately 9.5 mm length and 5.3 mm diameter for easy integration. Through hole mount type for secure PCB installation. Single element chip design ensures reliable performance.

This TVS diode is widely used in industrial electronics, power supplies, automotive circuitry, telecommunications equipment, and other fields requiring reliable transient voltage suppression.
