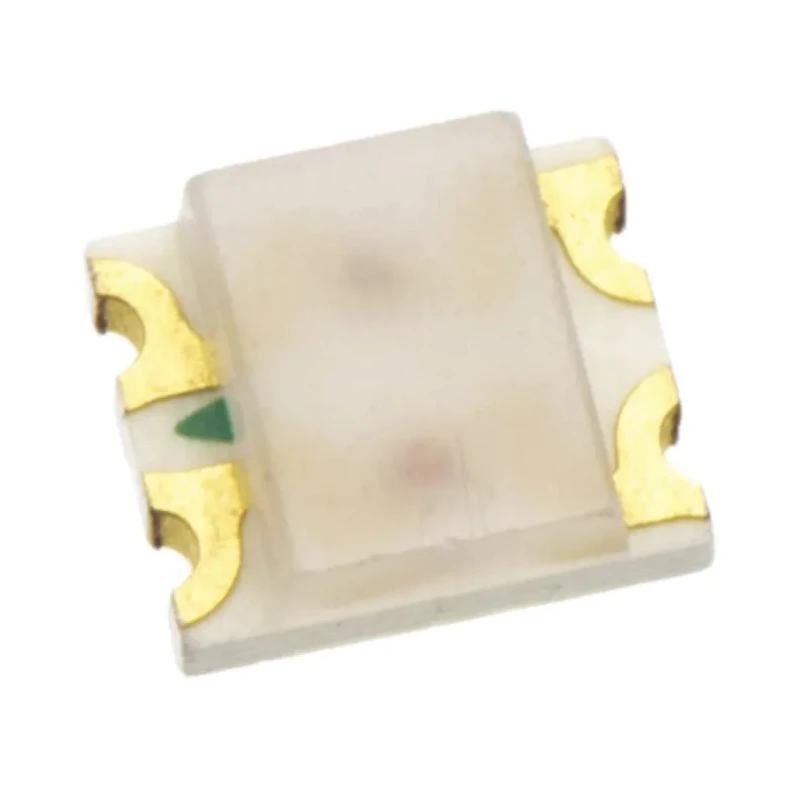

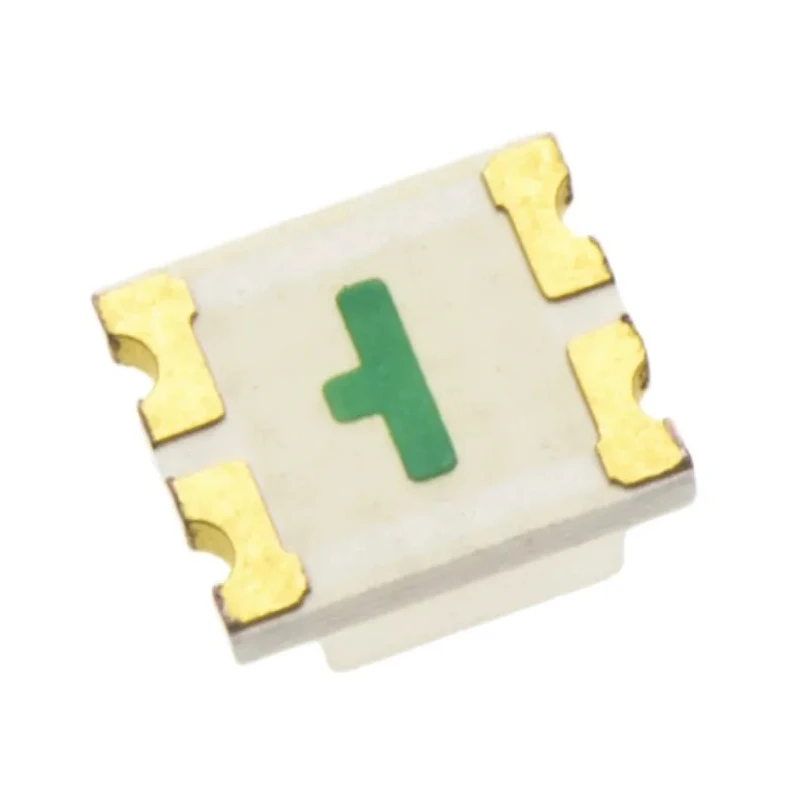

Broadcom 2.2 V Red, Green LED 3225 Surface Mount Bi-Colour ChipLED HSMF-C155
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-C155 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMF-C15x |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 170 ° |
| Package Type | 3225 |
| LED Colour | Red, Green |
| Dominant Wavelength | 626nm |
| Forward Voltage | 2.2V |
| Number of Pins | 4 |
| LED Luminosity | 10 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Dimensions | 3.2 x 2.7 x 1.1 mm |
| Lens Shape | Rectangular |
| - Operating temperature | -30°C to +85°C |
Key Features
- Bi-colour red and green LEDs in a compact 3225 surface mount package.
- Maximum forward current of 20 mA ensuring efficient operation.
- Wide viewing angle of 170 degrees for broad visibility.
- Package dimensions of 3.2 x 2.7 x 1.1 mm for standard 1210 footprint compatibility.
- 10 mcd LED luminosity providing clear visual indication.
- Clear rectangular lens with diffused optics for consistent light output.
- Operating temperature range from -30°C to +85°C suitable for diverse environments.
- Packaged in tape and reel format for automated assembly.
Product Description
Broadcom HSMF-C155 is a bi-colour red and green surface mount ChipLED designed for industrial and electronic applications requiring reliable LED indication. It features a standard 3225 package size measuring 3.2 x 2.7 x 1.1 mm, compatible with widely used SMT processes.
This LED offers a maximum forward current of 20 mA and a forward voltage of 2.2 V, delivering emission with a radiant intensity of 10 mcd and a wide 170° viewing angle for excellent visibility in display and indicator panels.
The rectangular clear lens uses diffused optics to provide uniform light distribution, making it suitable for applications such as push-button backlighting, symbol backlighting, status indicators, and front panel indicators often found in industrial controls, consumer electronics, and automotive dashboards.
The device operates reliably within a temperature range of -30°C to +85°C, supporting demanding environmental conditions. It comes supplied in tape and reel packaging format optimized for automated pick-and-place manufacturing, improving production efficiency.
Bi-colour red and green LED functionality provides versatile indication. Compact 3225 surface mount package enables high-density PCB layouts. Wide 170-degree viewing angle ensures visibility from various directions. Operating temperature range suitable for industrial use and varied climates.
High reliability and consistent luminosity for maintenance-free operation.
Broadcom HSMF-C155 LEDs serve a critical role in electronic component design, including applications in industrial equipment, instrumentation, control panels, and consumer electronics. Their industry-standard size and robust performance make them a trusted component for backlighting and indicator functions.
Explore a broad selection of LEDs and other electronic components at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the HSMF-C155 LED is 20 mA, ensuring efficient operation.
This model features a wide viewing angle of 170 degrees, providing broad visibility.
The package dimensions of the HSMF-C155 are 3.2 x 2.7 x 1.1 mm, which is compatible with the standard 1210 footprint.
The operating temperature range for the HSMF-C155 is from -30°C to +85°C, making it suitable for diverse environments.
It comes packaged in tape and reel format, optimized for automated pick-and-place manufacturing.
The LED luminosity of this model is 10 mcd, providing clear visual indication.
It features a clear rectangular lens with diffused optics for consistent light output.
The forward voltage for this LED is 2.2 V.
This model includes two LEDs, one red and one green, providing bi-colour functionality.
It is suitable for applications such as push-button backlighting, symbol backlighting, status indicators, and front panel indicators in various electronic devices.
The maximum power dissipation for this LED is 52 mW.
The HSMF-C155 belongs to the HSMF-C15x series of surface mount LEDs.
