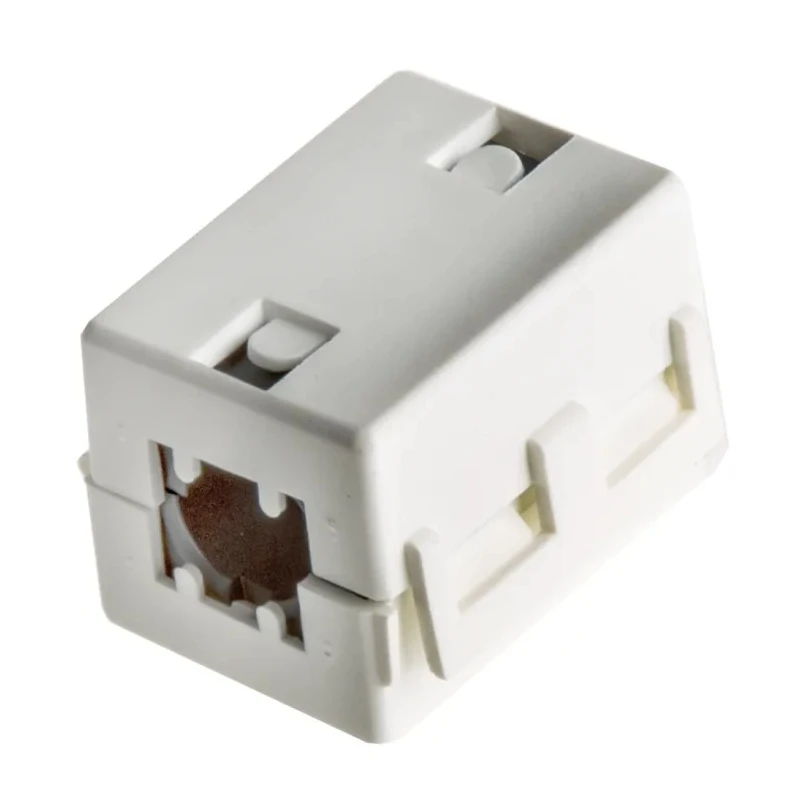

Rotronic Openable Ferrite Sleeve Diameter 10 mm Aperture EMI Suppression 11.05.1010

Rotronic 11.05.1010 Openable Ferrite Sleeve is engineered for effective electromagnetic interference (EMI) suppression in electronic cables and conduits. This high-quality ferrite sleeve features a 10 mm aperture diameter and a single aperture design, making it suitable for various cable management applications.

The ferrite core material provides impedance of 95 ohms at 25 MHz and 120 ohms at 100 MHz, ensuring excellent suppression of conducted and radiated EMI. Its openable design in a robust nylon clip housing allows for easy installation on pre-installed cables or cables fitted with connectors. The nylon housing also offers mechanical protection to the ferrite core, preventing damage during assembly or handling.

The external dimensions measure 32 mm in depth, 24.5 mm in width, and 23.5 mm in height, suitable for conduit use. The product is designed without a gap, ensuring uniform magnetic properties and consistent EMI attenuation. The nylon clip housing meets UL94V-0 flammability standards, ensuring safety and durability in demanding industrial environments.

Constructed from ferrite material optimized for EMI suppression. Single 10 mm aperture appropriate for cable conduits. Openable split tube core design for retrofitting existing cables. Dimensions: 32 mm depth, 24.5 mm width, 23.5 mm height.

Impedance: 95 Ω at 25 MHz, 120 Ω at 100 MHz. Nylon clip housing protects ferrite core from mechanical damage. Non-gapped core design for consistent performance. UL94V-0 compliant housing material. Used in industrial controllers, medical devices, computers, and office machines to minimize EMI.

Country of origin is Taiwan, Province of China. This Rotronic Ferrite Sleeve is ideal for industrial, medical, computer technology, and office applications requiring effective EMI filtering and reliable cable protection. Browse EnvMart for more electronic components and EMI suppression solutions.
