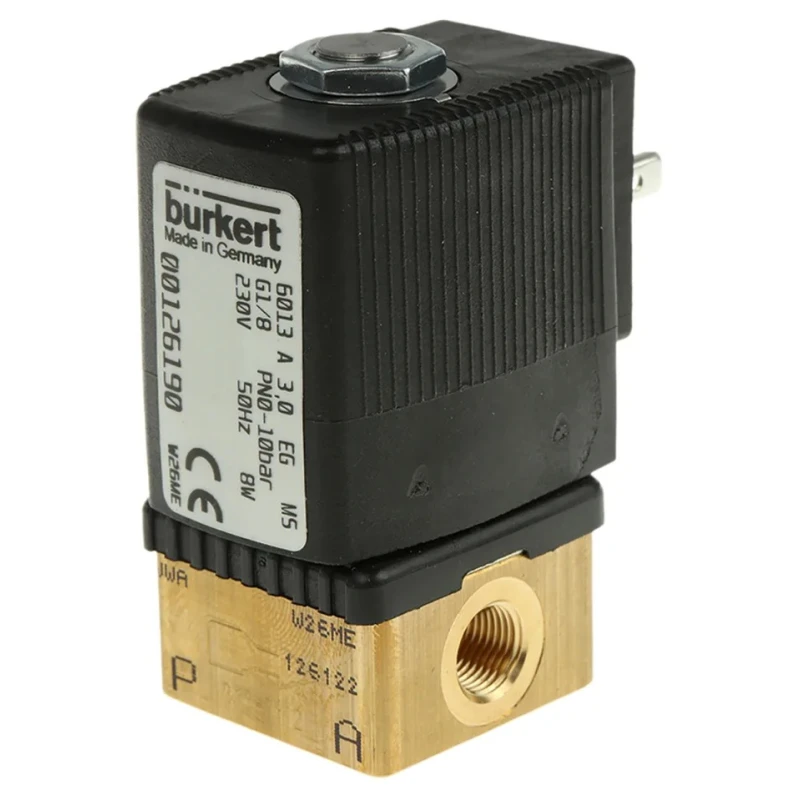

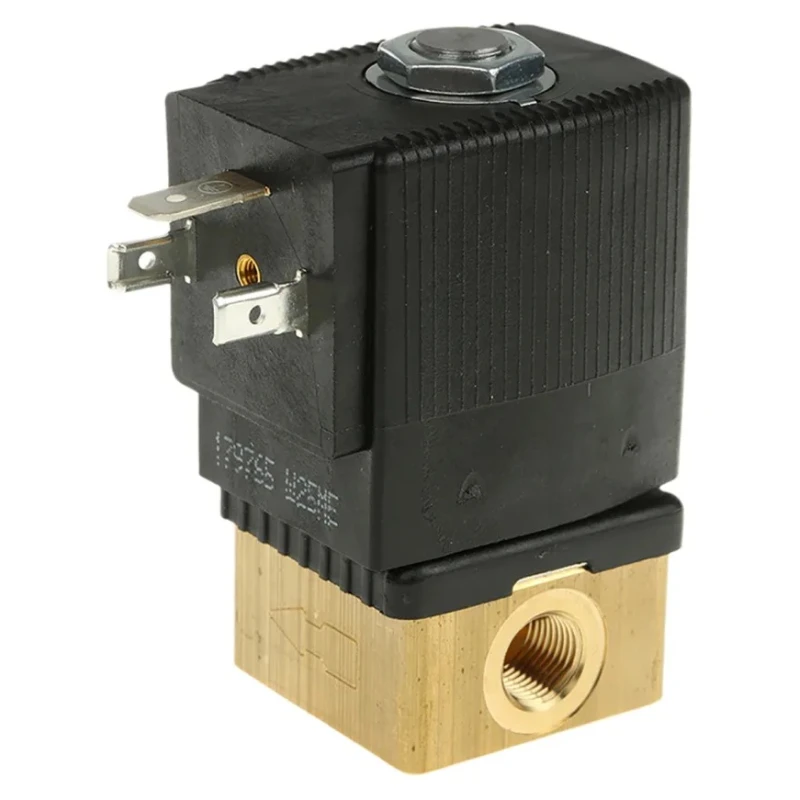

Burkert Brass Body Solenoid Valve 2 Port Normally Closed 230V AC 1/8 in G 3mm Orifice 126190
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 126190 |
| Series | 6013 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 3mm |
| Supply Voltage | 230V ac |
| Inlet Port Size | 1/8 in G |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Flow Factor Kv | 0.25m³/h |
Key Features
- This solenoid valve features a brass body with PTFE seal for durability and chemical resistance.
- Designed for use with water, steam, air, gases, hot oils, and hydrocarbons.
- The 2-port normally closed configuration ensures flow control when energized.
- Maximum operating pressure is up to 10 bar with operating temperatures from 0°C to 55°C.
- The valve includes a heat-resistant epoxy encapsulated coil with a three-pin DIN connector rated IP65.
- Compact form factor suitable for various industrial fluid handling applications.
- Flow factor Kv is 0.25 m³/h, providing controlled fluid flow performance.
- Constructed for reliable operation in industrial, water treatment, HVAC, manufacturing, and laboratory settings.
Product Description
Burkert 126190 is a high-quality solenoid valve with a brass body and PTFE seal, designed for precise fluid control in industrial and commercial applications. This 2-port, normally closed valve operates at 230V AC and features 1/8 inch G female inlet and outlet ports with a 3 mm orifice diameter.
The valve is suitable for a range of media including water, steam, air, gases, hot oils, and hydrocarbons, making it versatile for steam generation, fluid power, and pipeline systems. It is designed for maximum operating pressures up to 10 bar and can operate in ambient temperatures up to 55°C.

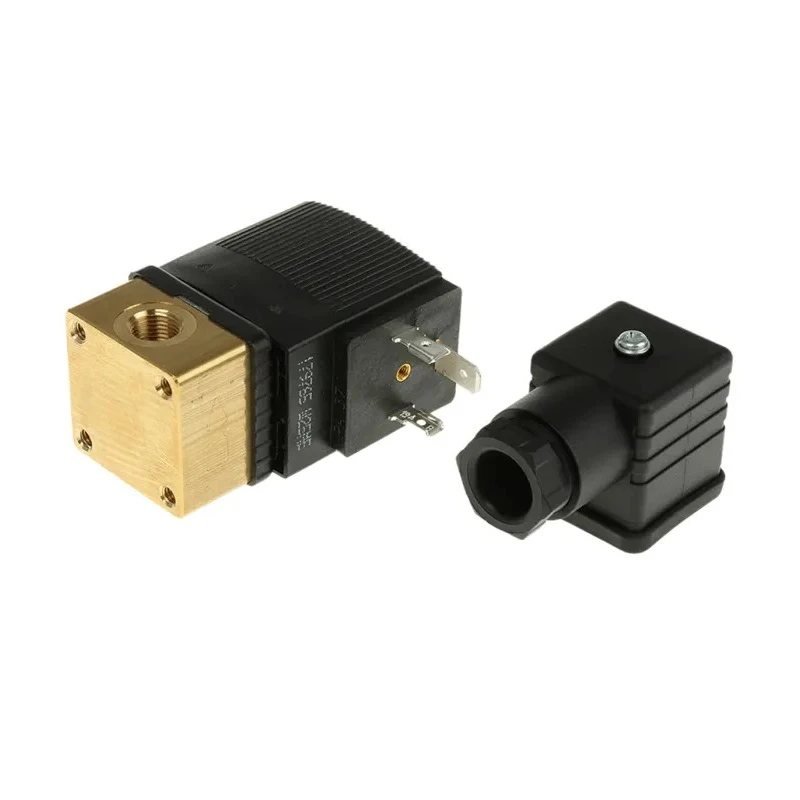

The coil is heat-resistant and epoxy encapsulated for durability, with a three-pin DIN connector rated IP65 that can be positioned in 360° increments for installation flexibility. The valve is part of Burkert’s 6013 series, known for compact design and reliability across various industrial processes.
Applications include fluid handling in HVAC systems, water treatment plants, manufacturing lines, laboratory fluid controls, and steam control systems. The robust brass construction ensures long service life and resistance to alkaline washing agents.
This solenoid valve features a brass body with PTFE seal for durability and chemical resistance. Designed for use with water, steam, air, gases, hot oils, and hydrocarbons. The 2-port normally closed configuration ensures flow control when energized.
Maximum operating pressure is up to 10 bar with operating temperatures from 0°C to 55°C. The valve includes a heat-resistant epoxy encapsulated coil with a three-pin DIN connector rated IP65. Compact form factor suitable for various industrial fluid handling applications.
Flow factor Kv is 0.25 m³/h, providing controlled fluid flow performance. Constructed for reliable operation in industrial, water treatment, HVAC, manufacturing, and laboratory settings.
Set includes one Burkert 126190 Solenoid Valve with full technical documentation. This product supports efficient fluid handling solutions in multiple sectors. Browse other Burkert industrial valves and accessories at EnvMart for comprehensive pipeline system options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
The orifice diameter of this model is 3 mm.
This valve operates within a temperature range of 0°C to 55°C.
It is designed for use with water, steam, air, gases, hot oils, and hydrocarbons.
The supply voltage for this solenoid valve is 230V AC.
This model features a 2-port configuration.
The flow factor Kv for this valve is 0.25 m³/h.
The default valve position for this solenoid valve is normally closed (NC).
It includes a heat-resistant epoxy encapsulated coil with a three-pin DIN connector rated IP65.
The inlet port size is 1/8 inch G and is female gender.
This solenoid valve is manufactured in Germany.
It is suitable for fluid handling in HVAC systems, water treatment plants, manufacturing lines, and laboratory fluid controls.
