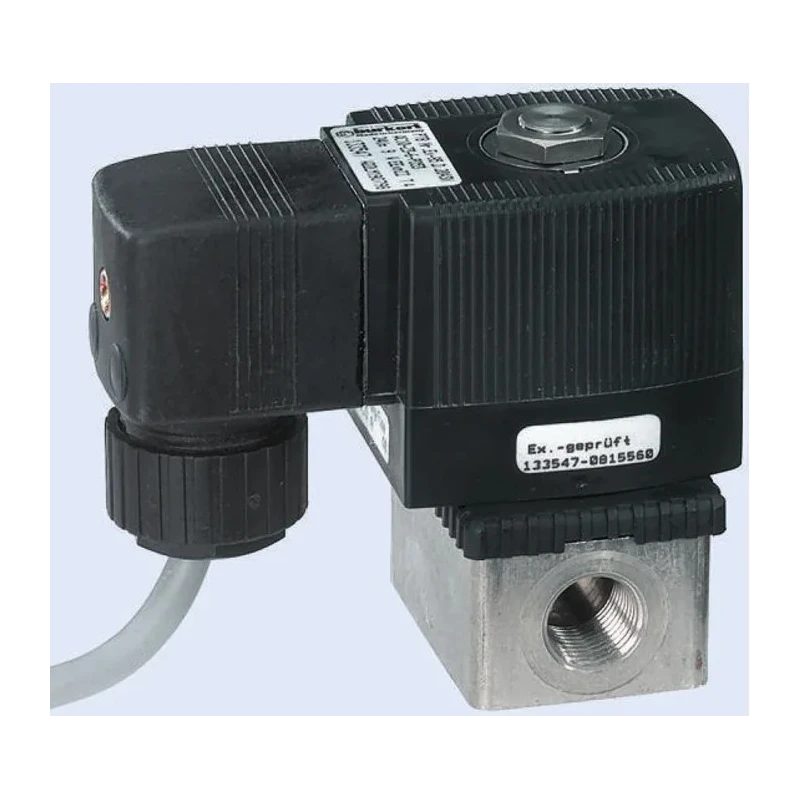

Burkert 2 Port Normally Closed Stainless Steel Solenoid Valve 230V AC/DC 1/8 in Orifice 2mm Series 6013EX 351926

Burkert 351926 is a high-quality 2 port normally closed solenoid valve fabricated from stainless steel, designed for reliable performance in industrial applications requiring fluid control at 230V AC/DC supply voltage. This Series 6013EX valve offers robust handling of neutral and aggressive gases and fluids such as compressed air, natural and town gas, hydraulic oil, and water, making it well-suited for filling, dosing, and batching operations.

The valve features a compact 2/2 way design with a 1/8 inch inlet port and a precise orifice diameter of 2mm that provides a flow factor Kv of 0.12 m³/h. Its maximum operating pressure supports up to 10 bar, while the operating temperature range from -30°C to 60°C ensures versatility in different environments. The outlet thread standard is G, enhancing connectivity with industrial piping.

Uniquely, the coil orientation is adjustable through 360°, allowing flexible installation with the coil preferably positioned uppermost. The solenoid coil comes with a moulded-in cable of 3 meters length. The valve's ingress protection rating of IP65 protects it against dust ingress and water jets, suitable for demanding industrial conditions.

Designed for use in hazardous areas, the valve holds ATEX certification, ensuring safe operation in explosive atmospheres. The device's fast actuation characteristics include a maximum opening time of 20 milliseconds and a maximum closing time of 30 milliseconds, delivering efficient fluid control.

This solenoid valve accommodates fluids with viscosities up to 21 mm²/s, supporting smooth flow of various media in industrial, laboratory, HVAC, water treatment, and manufacturing applications.

Compact 2/2 way normally closed solenoid valve made of stainless steel. Series 6013EX, suitable for aggressive media and technical vacuum. 230V AC/DC supply voltage with 1/8 inch inlet port and 2 mm orifice diameter. Maximum operating pressure of 10 bar and temperature range from -30°C to 60°C.

360° adjustable coil orientation with a 3-meter moulded-in cable. IP65 ingress protection and ATEX hazardous area certification. Fast response with maximum opening and closing times of 20 ms and 30 ms respectively. Flow factor Kv of 0.12 m³/h compatible with fluids up to 21 mm²/s viscosity.

This Burkert 351926 Solenoid Valve is an optimal choice for industrial fluid power systems, plumbing and pipeline projects, and pneumatic applications requiring durable, safe, and precise flow control. Browse the EnvMart Industrial Valves category for more quality Burkert valves and fittings.
