WISKA Earthing Kit Junction Box EC1210, Flame Retardant, Halogen-Free, Impact Resistant, IP66/67, Germany EC1210

WISKA EC1210 Earthing Kit Junction Box is a professional-grade junction box manufactured in Germany, designed to offer robust protection for wiring circuits and electrical connections. It is constructed from flame-retardant and halogen-free materials that resist vegetable and animal fats, mineral oil, diesel, alcohol, and weak acids, ensuring long-term durability in challenging environments.

The EC1210 model features a bellied lid design, which provides 10% more internal space compared to regular boxes, aiding ease of cable management and installation. Its solid thermoplastic housing comprises two different molded materials that enhance impact resistance, weatherproofing, and UV stability.

Equipped with 10 M20 entries, complete with elastic soft membranes and integrated threads compatible with cable glands, it eliminates the need for locknuts, reducing installation time. Additionally, 4 M20 self-sealing membrane entries at the base enable straightforward direct wall assembly without compromising the enclosure's IP rating.

The quick release lid screws are made of plastic, which prevents rusting and ensures secure closure. The box achieves IP66/67 ingress protection in compliance with DIN EN 60529 and passes the 750°C glow wire test according to EN 60695-2-11, confirming its high safety standards for electrical enclosures.

The kit is supplied complete with a 5-pole terminal and 4 captive quick-release lid screws. It is designed primarily for building construction applications, facilitating easy access to wiring circuits for connections, repairs, or modifications. Suitable for both indoor and outdoor use, the box withstands mechanical shocks, UV exposure, and harsh weather conditions.

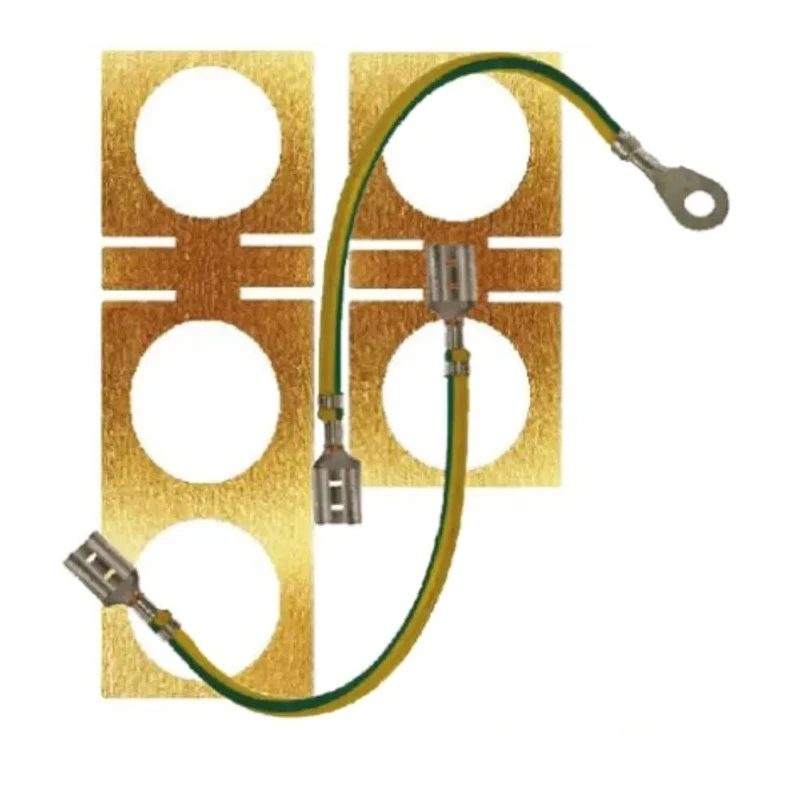

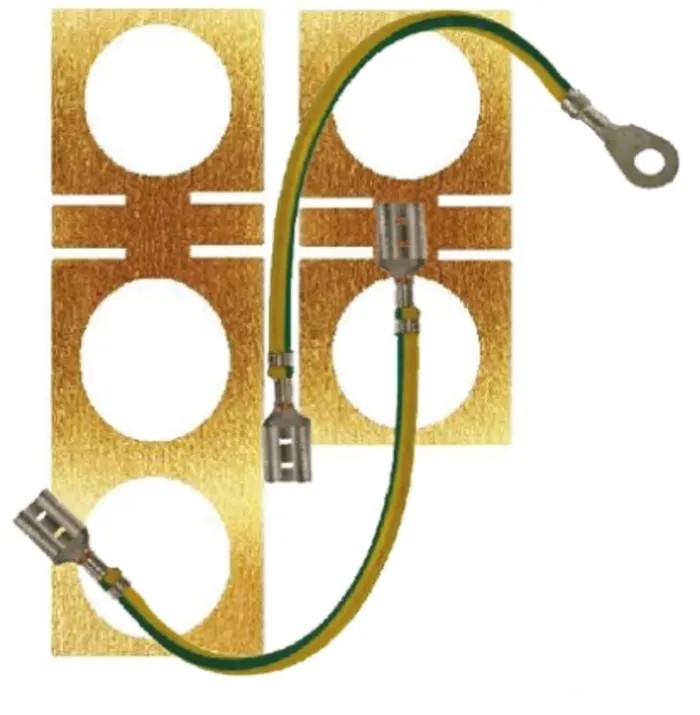

Optional accessories include a DIN rail mounting kit with clamps for extended mounting flexibility and an earthing kit designed to connect BW/CW cable glands when using SWA cables, enhancing grounding safety.

WISKA's EC1210 Earthing Kit Junction Box offers a reliable, durable, and versatile solution for electrical junction boxes in industrial, commercial, and residential installations, ensuring compliance with international standards and long-term operational safety.

The box features a bellied lid providing 10% more interior space. Consists of solid thermoplastic housing with double molded materials for durability. Includes 10 M20 threaded entries with elastic membranes and knockouts for M25 options.

Equipped with 4 self-sealing M20 membrane entries on the base for direct wall assembly. Quick release lid screws are plastic, rustproof, and secure. Weatherproof, UV resistant, shatterproof, and impact resistant construction.

Complies with DIN EN 60529 and EN 60695-2-11 standards for IP66/67 and glow wire test. Supplied with a 5-pole terminal and 4 captive quick-release screws. Suitable for indoor and outdoor electrical junctions in building construction.

Optional accessories available include DIN rail mounting kit and earthing kit for cable glands. Explore a comprehensive range of electrical enclosures and accessories at EnvMart for professional-grade electrical installation solutions.
