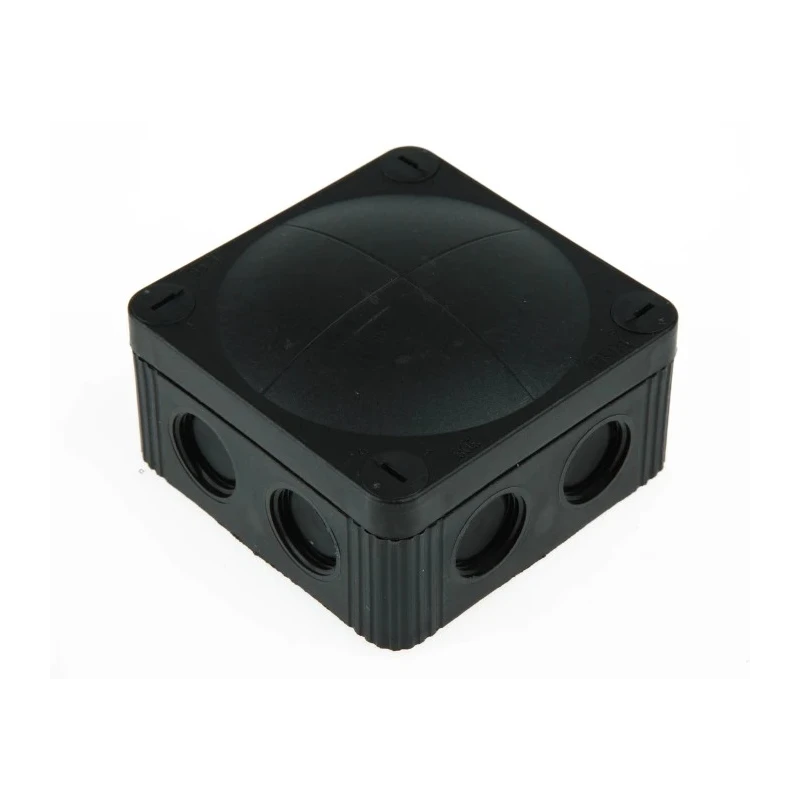

WISKA Combi Series Reinforced Fibreglass Polypropylene Junction Box 85mm x 85mm x 51mm Model 60580

WISKA 60580 Combi Series Reinforced Fibreglass Polypropylene Junction Box measuring 85mm x 85mm x 51mm is engineered for electrical enclosure applications requiring robust protection and ease of installation. This professional grade junction box provides excellent resistance to water ingress (IP66 to IP68 rating), flame, UV exposure, and mechanical impacts, making it suitable for indoor and outdoor industrial environments.

Constructed from solid thermoplastic materials including reinforced fibreglass and polypropylene, the box is flame retardant and halogen-free, offering reliability in challenging chemical and temperature conditions. Its patented combination of integrated threads and elastic self-sealing membranes facilitates direct mounting of cable glands without the need for locknuts, speeding installation.

The bellied lid provides 10% more internal space compared to standard boxes of its size, allowing more room for wiring and connections. Plastic quick-release lid screws prevent rust and provide secure closure, ensuring long-term durability and maintenance convenience.

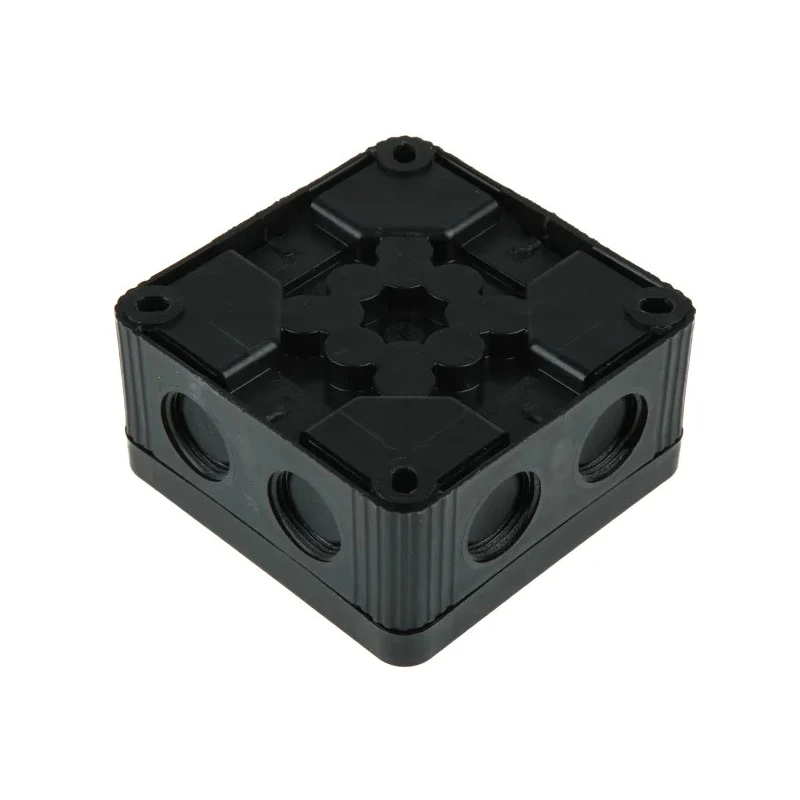

This junction box supports 8 cable entry points via COMBI 108 elastic membranes with integrated M20 threads, designed for secure and weatherproof cabling. Mounting options include a snap-on clip or use of internal openings located outside of the sealing area.

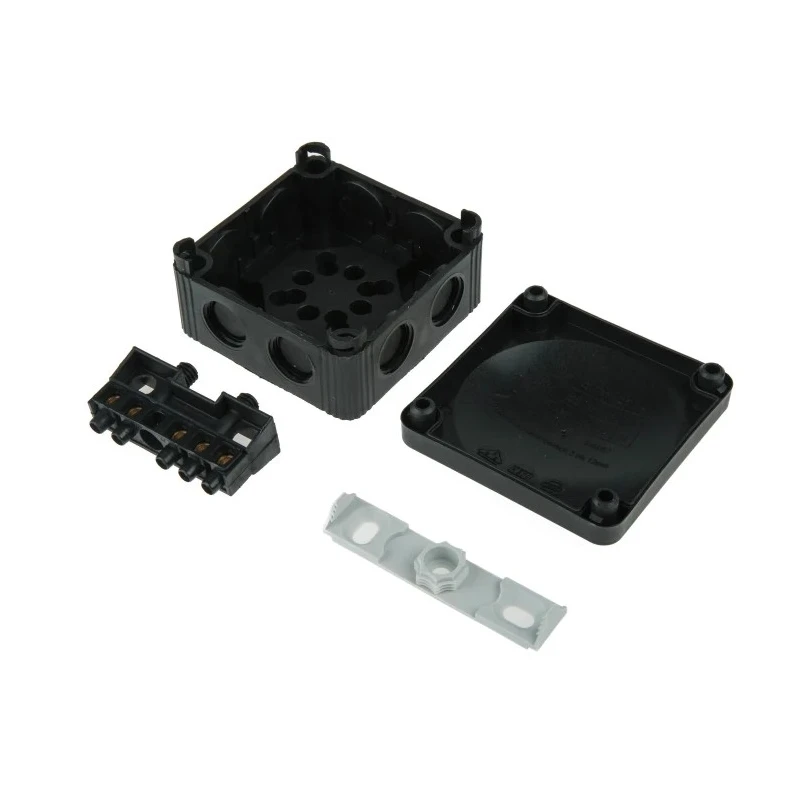

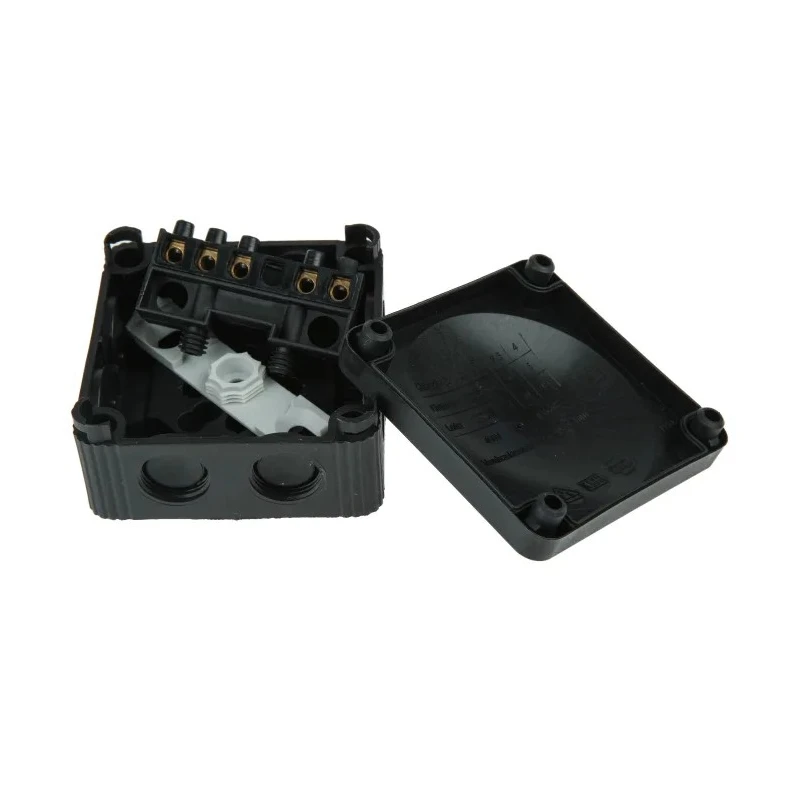

The box is supplied complete with a fast mounting clip and a 5-pole terminal, allowing immediate use for electrical circuit connections, repairs, or extensions. Its flame retardant and halogen-free materials resist damage from vegetable and animal fats, mineral oils, diesel, alcohol, and weak acids, expanding its applicability across various industrial sectors.

Typical applications include building construction wiring junctions, additional socket connections, lighting points, circuit repairs, and extending electrical circuits with secure and protected enclosure solutions.

Manufactured in Germany with certifications including VDE, EN 60529 IP66, glow wire test up to 750°C per EN 60695-2-11, KEMA-KEUR and CEBEC approvals, this junction box meets stringent quality and safety standards.

The housing is made from durable reinforced fibreglass and polypropylene materials. Dimensions are compact at 85mm length, 85mm width, and 51mm height for versatile applications. The box includes 8 self-sealing elastic membranes with integrated M20 threads allowing cable gland mounting without locknuts.

Features a bellied lid offering 10% more internal space compared to typical junction boxes. Plastic quick-release lid screws ensure rust-resistant, secure fastening for easy maintenance. Protection includes IP66, IP67, and IP68 ratings for water, UV, and impact resistance.

Flame retardant and halogen-free construction suitable for harsh environmental conditions. Comes with a mounting clip for snap-on fixing or internal screw mounting outside the sealing area. Includes a 5-pole terminal and fast mounting clip with the box.
