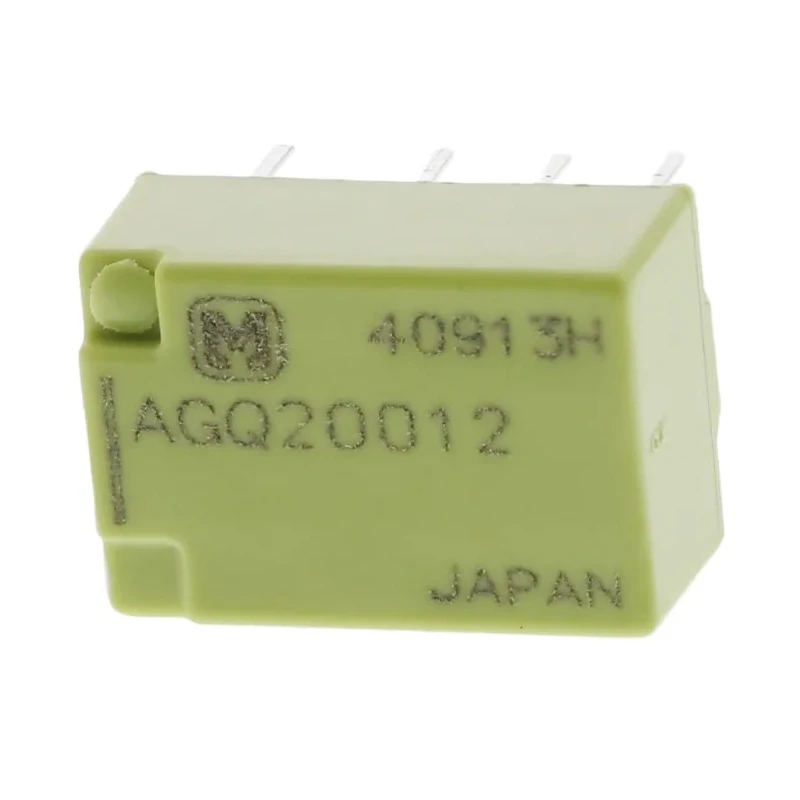

Panasonic PCB Signal Relay 12V DC Coil 1A DPDT AGQ20012
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.2mm |
| Length | 10.9mm |
| Model | AGQ20012 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
| Omron PCB Signal Relay, 12V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- Miniature relay designed for high-density printed circuit boards.
- Gold plated silver aluminium contact material ensures reliable conductivity.
- Operating temperature range from -40°C to 85°C for robust performance.
- Coil resistance is 1028 Ohms with power consumption of 140mW.
- Suitable for applications in transmission, telephony, measurement, audio-visual, and portable systems.
- Compliant with RoHS standards.
- PCB terminal mount type for secure installation.
Product Description
Panasonic AGQ20012 PCB Signal Relay features a 12V DC coil voltage and supports a switching current of 1A with a DPDT contact configuration. It is engineered for use in miniature applications requiring high-density printed circuit boards.
Constructed with gold plated silver aluminium contacts, this relay ensures excellent electrical conductivity and durability under varied operating conditions.
The relay operates effectively over a wide temperature range from -40°C to 85°C, making it suitable for industrial, telecommunications, measurement, audio-visual, and portable electronic applications.
Its coil resistance is 1028 Ohms with power consumption at 140mW, enabling energy-efficient operation. The relay is RoHS compliant, adhering to environmental and safety standards. Compact physical dimensions of 10.9mm length, 7.2mm width, and 5.2mm height, along with PCB terminal mounting, facilitate easy integration into printed circuit boards.
Miniature relay designed for high-density printed circuit boards. Gold plated silver aluminium contact material ensures reliable conductivity. Operating temperature range from -40°C to 85°C for robust performance. Coil resistance is 1028 Ohms with power consumption of 140mW.
Suitable for applications in transmission, telephony, measurement, audio-visual, and portable systems. Compliant with RoHS standards. Compact dimensions: 10.9mm length, 7.2mm width, and 5.2mm height. PCB terminal mount type for secure installation.
This Panasonic PCB Signal Relay AGQ20012 is ideal for electronics manufacturing, automation control, telecommunications equipment, and precision measuring devices where compact and reliable switching is required.
Discover more professional-grade relays and signal conditioning components at EnvMart for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It supports a switching current of 1A.
The relay has dimensions of 10.9mm in length, 7.2mm in width, and 5.2mm in height.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
It operates effectively within a temperature range of -40°C to 85°C.
This model uses PCB terminal mounting for secure installation.
The coil resistance is 1028 Ohms.
The coil power consumption is 140mW.
The contacts are made of gold plated silver aluminium, ensuring reliable conductivity.
Yes, this relay is compliant with RoHS standards.
It is suitable for applications in transmission, telephony, measurement, audio-visual, and portable systems.
The maximum switching DC voltage is 110V and the maximum AC voltage is 125V.
