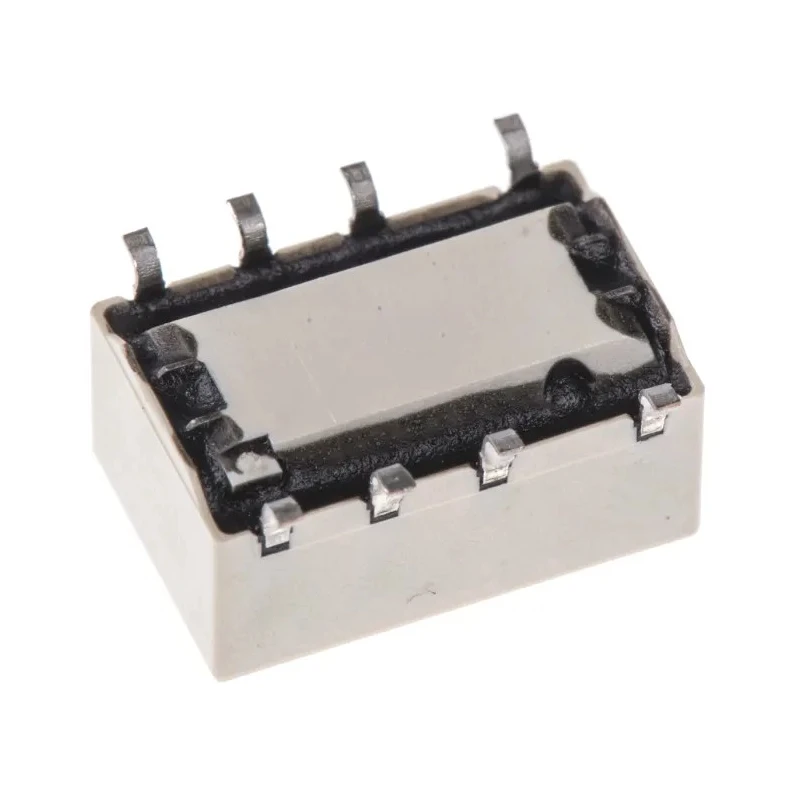

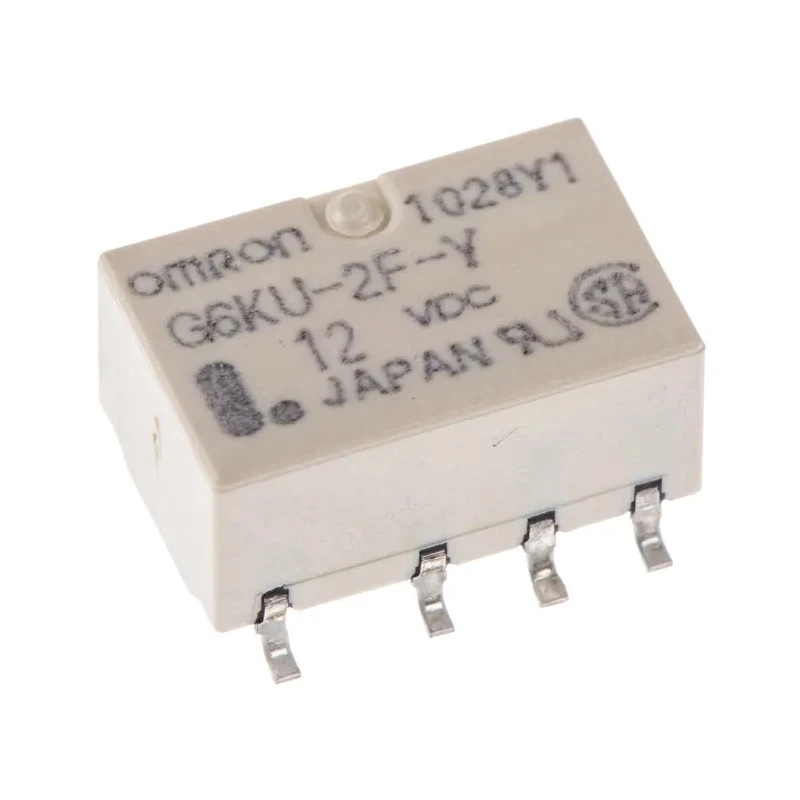

Omron Surface Signal Relay 12V DC Coil 1A DPDT G6KU-2F-Y DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6KU-2F-Y DC12 |
| Width | 7.8mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1315Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features

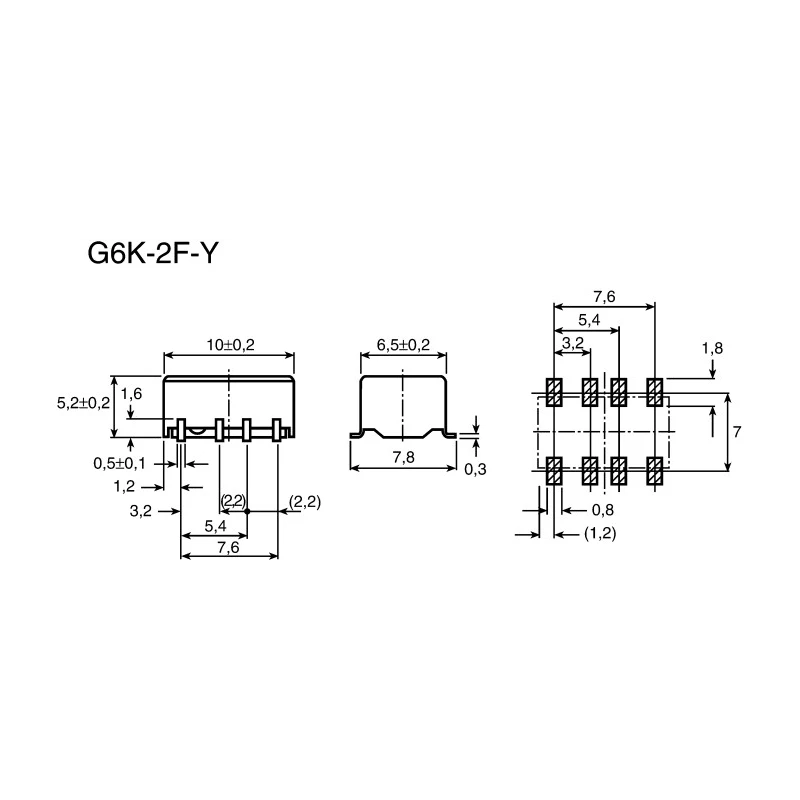

- This relay features a low profile subminiature SMT design measuring 5.2x7.8x10 mm.
- It has a fully sealed construction to ensure reliable performance in various environments.
- Low power consumption of approximately 100mW makes it energy efficient for signal control applications.
- Gold plated contacts provide excellent conductivity and durability.
- The relay supports switching AC voltage up to 125V ac and DC voltage up to 60V dc.
- Operating temperature range is from -40°C to 70°C, suitable for industrial use.
- Complies with RoHS standards with contact resistance of 100 mΩ and coil resistance of 1315 Ω.
- Recommended for electronic signal switching in industrial, automation, and electrical systems.
Product Description
Omron G6KU-2F-Y DC12 Surface Signal Relay is a compact, low profile subminiature relay designed for high reliability in signal switching applications. With a coil voltage of 12V DC and a DPDT contact configuration, this relay can handle a switching current of 1A, making it ideal for automation and control circuits.
The relay features a fully sealed construction which protects its internal components from dust and moisture, ensuring consistent performance over time. It uses gold plated contacts which provide superior conductivity and resistance to corrosion, increasing its lifespan in demanding industrial environments.
Dimensions measuring only 5.2 mm height, 7.8 mm width, and 10 mm length allow easy integration into compact electronic designs. It supports switching AC voltage up to 125V and DC voltage up to 60V, with a switching power rating of 30W, suitable for a wide range of signal control applications.
Operating efficiently with low coil power of only 100mW, it consumes minimal energy. The relay can operate reliably in temperatures from -40°C to 70°C, making it suitable for diverse industrial, laboratory, and automation systems. Compliance with RoHS standards ensures environmental safety.
This product is commonly used in industrial electronic controls, signal conditioning, automation equipment, and other electrical applications requiring compact, reliable signal relays with low power consumption and high switching integrity.
This relay features a low profile subminiature SMT design measuring 5.2x7.8x10 mm. It has a fully sealed construction to ensure reliable performance in various environments. Low power consumption of approximately 100mW makes it energy efficient for signal control applications.
Gold plated contacts provide excellent conductivity and durability. The relay supports switching AC voltage up to 125V ac and DC voltage up to 60V dc. Operating temperature range is from -40°C to 70°C, suitable for industrial use.
Complies with RoHS standards with contact resistance of 100 mΩ and coil resistance of 1315 Ω. Recommended for electronic signal switching in industrial, automation, and electrical systems. Explore more Signal Relays and electrical components on EnvMart to meet your advanced industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It can handle a switching current of 1A.
The relay measures 5.2 mm in height, 7.8 mm in width, and 10 mm in length.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay supports switching AC voltage up to 125V and DC voltage up to 60V.
The coil power consumption is approximately 100mW.
It operates reliably in temperatures from -40°C to 70°C.
The contacts are made from gold plated material, providing excellent conductivity.
Yes, it complies with RoHS standards.
The contact resistance is 100 mΩ.
This model is designed for surface mounting.
The switching power rating is 30W.
