Omron Surface Signal Relay 24V DC Coil 1A DPDT G6K-2G DC24

Free Delivery in India | Lowest Global Shipping Charges

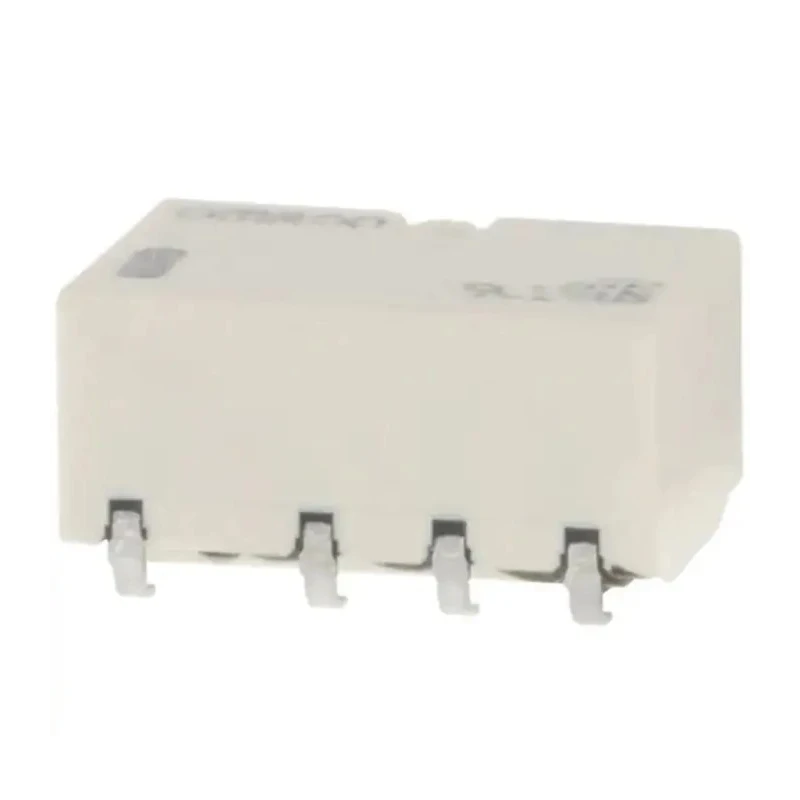

Omron Surface Signal Relay 24V DC Coil 1A DPDT G6K-2G DC24

Name: Omron Surface Signal Relay 24V DC Coil 1A DPDT G6K-2G DC24
Brand: Omron
SKU: 422596
Price: 5.23 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Height	5.4mm
Length	10mm
Model	G6K-2G DC24
Width	6.5mm
Mount Type	Surface
Contact Material	Silver Alloy
Series	HFD23
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	Surface Mount
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	5200Ω
Coil Voltage	24V dc
Switching DC Voltage	60V dc
Switching AC Voltage	125V ac
Coil Power	100mW

Key Features

Equipped with a 24V DC coil voltage suited for precise control circuits.
Double pole double throw (DPDT) contact configuration enables versatile switching functions.
Rated for 1A switching current for moderate load applications.
Surface mount type design supports compact PCB layouts.
Compact dimensions with length 10mm, width 6.5mm, and height 5.4mm.
Coil resistance rated at 5200Ω and coil power consumption of 100mW ensures efficient operation.
Silver alloy contact material provides superior conductivity and durability.
Operating temperature range from -40°C to 70°C for diverse environmental conditions.

Product Description

Omron G6K-2G DC24 Surface Signal Relay provides efficient electrical switching with a 24V DC coil voltage and 1A switching current. This DPDT relay utilizes a silver alloy contact material and features surface mount construction, enabling compact integration on circuit boards. The relay operates reliably within temperatures from -40°C to 70°C, making it suitable for a wide range of industrial, telecommunications, office automation, security systems, and home appliances.

Its lightweight of approximately 0.7 g contributes to high-speed mounting, while the fully sealed design protects internal components against environmental stress and enhances longevity.

Key specifications include a coil resistance of 5200Ω, coil power consumption of 100mW, contact resistance of 100mΩ, and switching capabilities of 125V AC / 60V DC voltages at 1A current. These features ensure precise and durable operation under varying electrical loads.

This Omron signal relay is an excellent choice for applications requiring compact size, high reliability, and versatile switching configurations such as telecommunications equipment, test and measurement apparatus, building automation systems, amusement equipment, and security installations.

Equipped with a 24V DC coil voltage suited for precise control circuits. Double pole double throw (DPDT) contact configuration enables versatile switching functions. Rated for 1A switching current for moderate load applications.

Surface mount type design supports compact PCB layouts. Compact dimensions with length 10mm, width 6.5mm, and height 5.4mm. Coil resistance rated at 5200Ω and coil power consumption of 100mW ensures efficient operation. Silver alloy contact material provides superior conductivity and durability.

Operating temperature range from -40°C to 70°C for diverse environmental conditions. Fully sealed construction for enhanced reliability in industrial usage. Ideal for telecommunication, security, industrial, and home appliance automation applications.

Discover high-performance relays including this Omron model by exploring the Signal Relay category at EnvMart for your industrial and automation needs.
