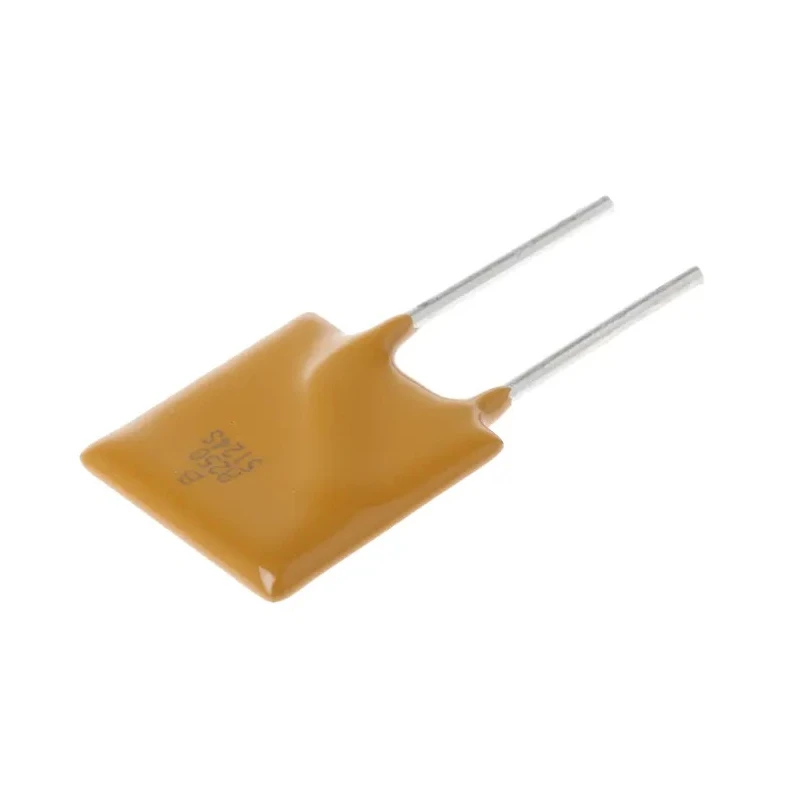

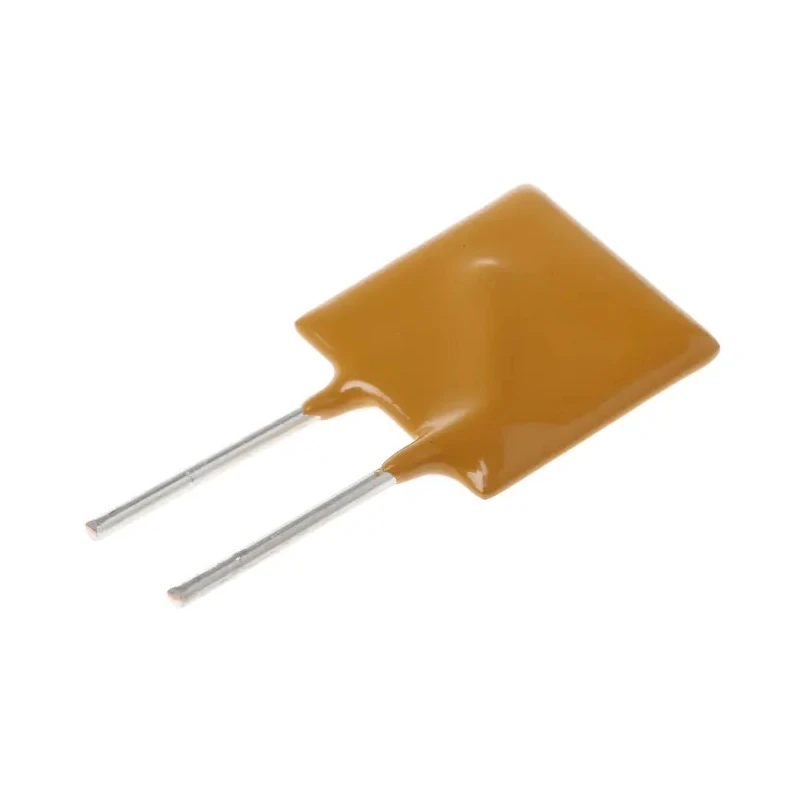

Bourns 2.5 A Resettable Fuse, 30V, Radial Leaded MF-R250

Bourns MF-R250 is a high-quality resettable fuse designed to protect electrical circuits from excessive current conditions. This fuse features a nominal hold current of 2.5 amps and a trip current of 5 amps, making it ideal for safeguarding sensitive electronic components and devices. It operates at a maximum voltage of 30 volts DC, suitable for use in low voltage electronic and electrical equipment.

The device employs a radial leaded design, which facilitates easy installation onto printed circuit boards. The compact dimensions (12 mm length, 18.3 mm height, and 3 mm width) enable integration in space-constrained applications. The fuse's body is made from a cured, flame retardant epoxy polymer material that complies with UL 94V-0 standards, ensuring safety and reliability under operating stresses.

In the event of an electrical overload or short circuit, the MF-R250 rapidly changes to a high resistance state, interrupting the current flow. Once the fault condition is removed and power is restored, the fuse automatically resets to its low resistance state, providing maintenance-free operation. This resettable capability makes it cost-effective and reduces downtime by avoiding the need for fuse replacement.

This fuse supports a maximum current rating of 40A and dissipates up to 1.2 watts of power. It operates reliably within an ambient temperature range from -40°C to 85°C, making it suitable for a wide range of industrial, automotive, instrumentation, security systems, computing peripherals, medical equipment, and telecommunications applications.

The radial lead orientation with a lead diameter of 0.81 mm allows for secure soldering and optimal electrical contact. The Bourns MF-R250 fuse series is UL, CSA, and TUV approved, ensuring compliance with international safety standards.

Features a trip current of 5A for effective overcurrent protection. Compact design with 12mm length and 18.3mm height for PCB mounting. Flame retardant epoxy polymer construction meets UL 94V-0 requirements. Automatically resets after fault conditions, eliminating fuse replacement.

Operates reliably from -40°C to 85°C ambient temperature range. Radial leaded device with 0.81mm lead diameter for easy installation. Rated for 40A maximum current and 1.2W power dissipation. Suitable for industrial, automotive, medical, and telecommunications equipment.

UL, CSA, and TUV certifications ensure adherence to safety standards.
