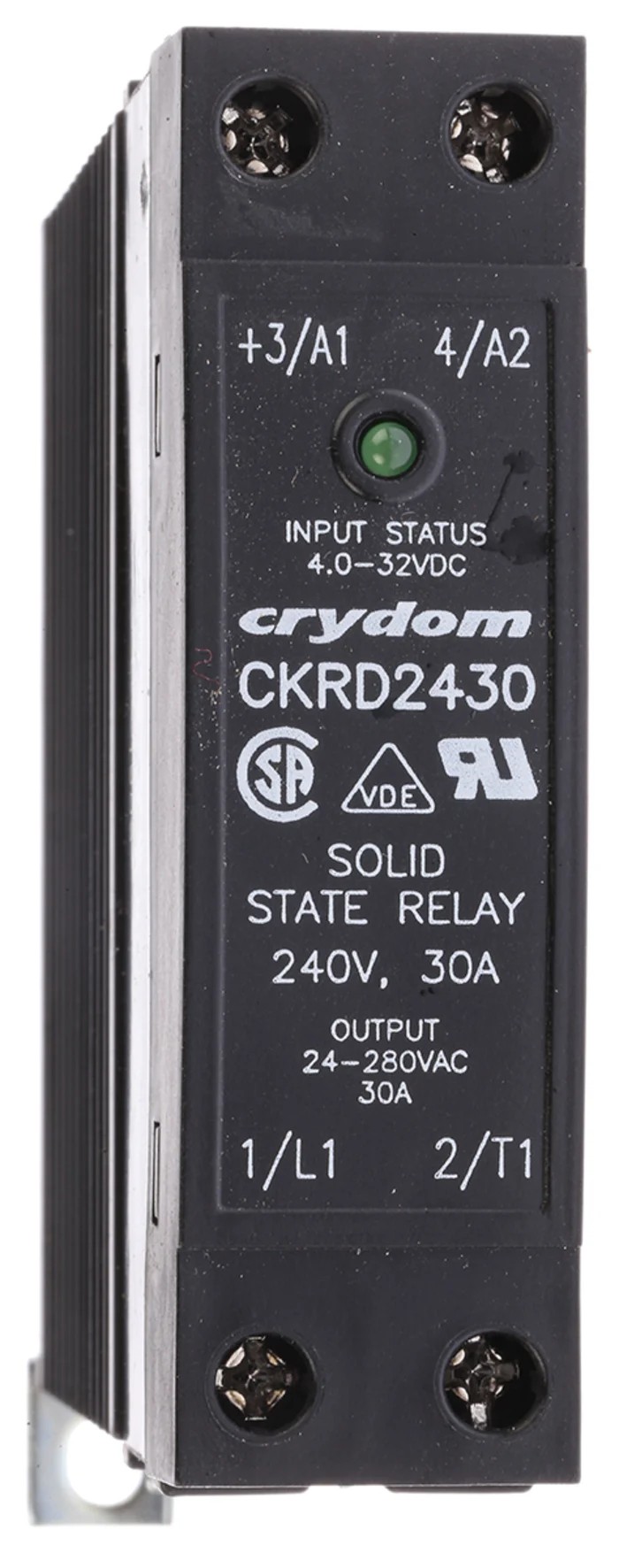

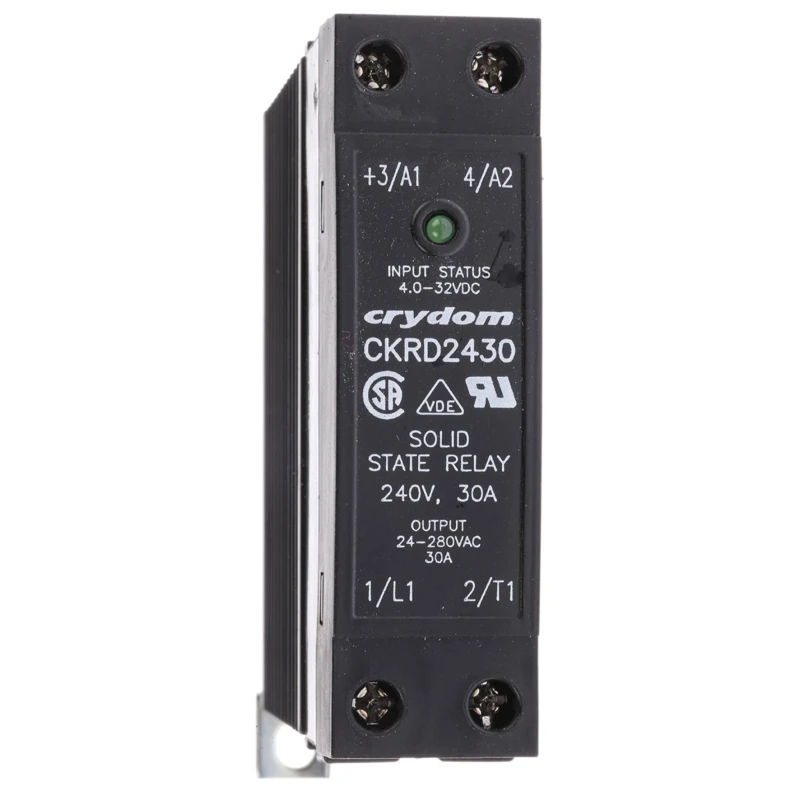

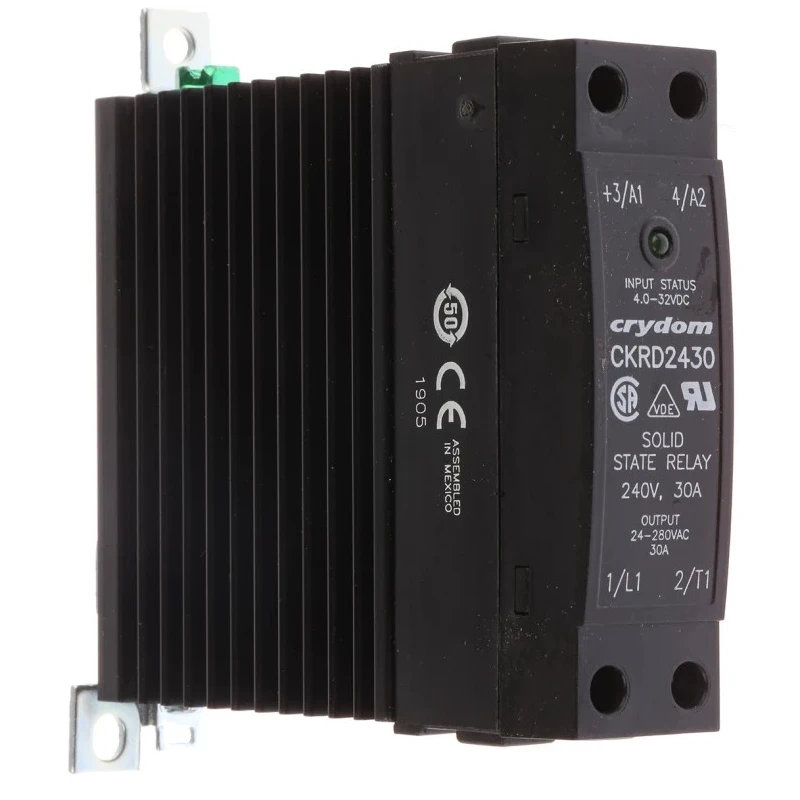

Crydom CKRD Series Solid State Relay, 30 A Load Current, 280 Vrms Load Voltage, 32V Control, DIN Rail Mount CKRD2430
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crydom |
| Height | 99mm |
| Length | 81.9mm |
| Model | CKRD2430 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | CKRD |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 30A |
| Standards/Approvals | RoHS |
| Minimum Load Voltage | 32V |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
Key Features
- The relay supports a wide operating voltage range from 24 to 280 V AC for various light to medium-duty applications.
- An aluminum baseplate provides impact resistance and corrosion protection for durability.
- Zero-cross switching function minimizes electrical noise during operation.
- Operating temperature range spans from -40°C to +80°C enabling use in harsh environments.
- The relay uses screw terminals for secure electrical connections.
- It includes a green LED indicator for clear operational status.
- The off-state leakage current is low at 10 mA, enhancing reliability.

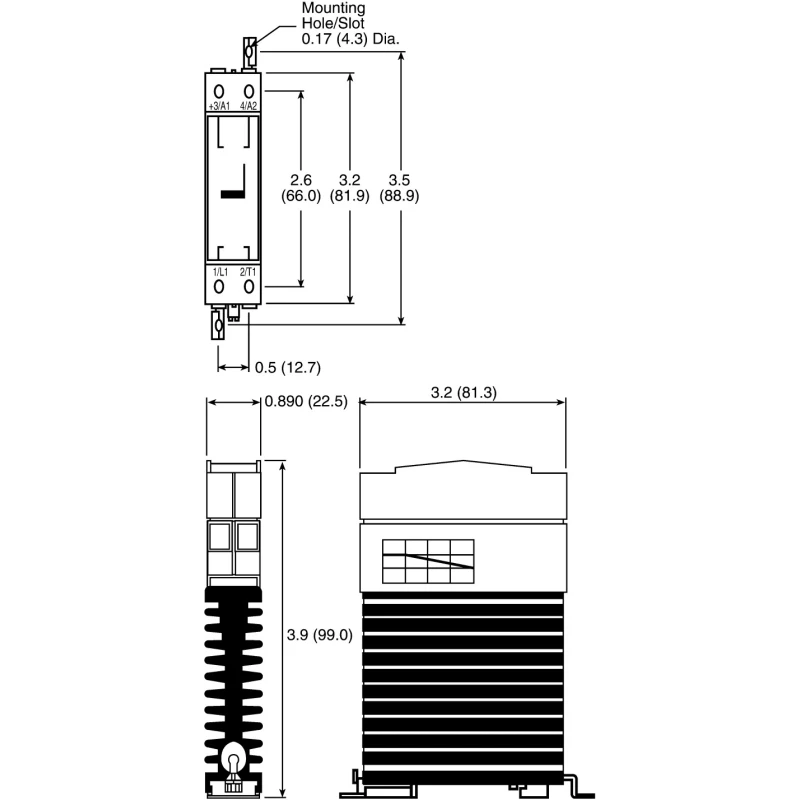

- Compact dimensions with height 99 mm, length 81.9 mm, and width 22.5 mm suit standard DIN rail installations.
Product Description
Crydom CKRD2430 Solid State Relay offers a robust solution for switching loads in industrial and automation electric circuits. Featuring a DIN rail mount and screw terminal connections, the relay integrates seamlessly into industrial automation panels and electrical enclosures.
The device operates efficiently with a wide voltage range and incorporates a zero-cross switching function that reduces electrical noise, ensuring smooth operational performance. Its aluminum baseplate enhances resistance to impacts and corrosion, suitable for demanding industrial settings.
This relay supports a broad temperature range from -40°C to 80°C, making it ideal for applications in environments with thermal fluctuations. The green LED status indicator aids technicians in troubleshooting and monitoring.
Crydom CKRD2430 solid-state relay has a compact form factor (99 mm height, 81.9 mm length, 22.5 mm width) complying with DIN rail standards. The off-state leakage current is minimized to 10 mA, and the output type is Silicon Controlled Rectifier (SCR), facilitating durable and silent switching with no mechanical wear points.
Its IP20 classification protects the unit from solid foreign objects larger than 12 millimeters but does not provide protection against liquids, suitable for dry indoor industrial environments. The relay is ideal for industrial automation, HVAC systems, manufacturing equipment, medical devices, and control panels.
The relay supports a wide operating voltage range from 24 to 280 V AC for light to medium-duty applications. An aluminum baseplate resists impact and corrosion. Zero-cross switching reduces electrical noise during activation.
Compact DIN rail mount for easy installation in control panels. Broad operating temperature range from -40°C to 80°C. Includes a green LED operational status indicator. Screw terminal type ensures secure wiring connections.
Low off-state leakage current of 10 mA improves efficiency. Output type is SCR for consistent solid-state switching. IP20 rated for protection against solid objects. This product is made in China and comes compliant with RoHS environmental standards.
Find more Solid State Relays and industrial electrical components in the EnvMart Electronics & Electricals category for reliable automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 30 A.
It supports a wide operating voltage range from 24 to 280 V AC.
This model is designed for DIN rail mounting, making it suitable for installation in control panels.
The operating temperature range spans from -40°C to 80°C, allowing use in harsh environments.
The output type is Silicon Controlled Rectifier (SCR), which allows for solid-state switching.
The off-state leakage current is low at 10 mA, enhancing its reliability.
Yes, it includes a green LED indicator for clear operational status monitoring.
It uses screw terminals for secure electrical connections.
This model has an IP20 rating, which protects against solid foreign objects larger than 12 millimeters.
The dimensions are 99 mm in height, 81.9 mm in length, and 22.5 mm in width.
It complies with RoHS environmental standards.
This relay is suitable for industrial automation, HVAC systems, manufacturing equipment, and control panels.
