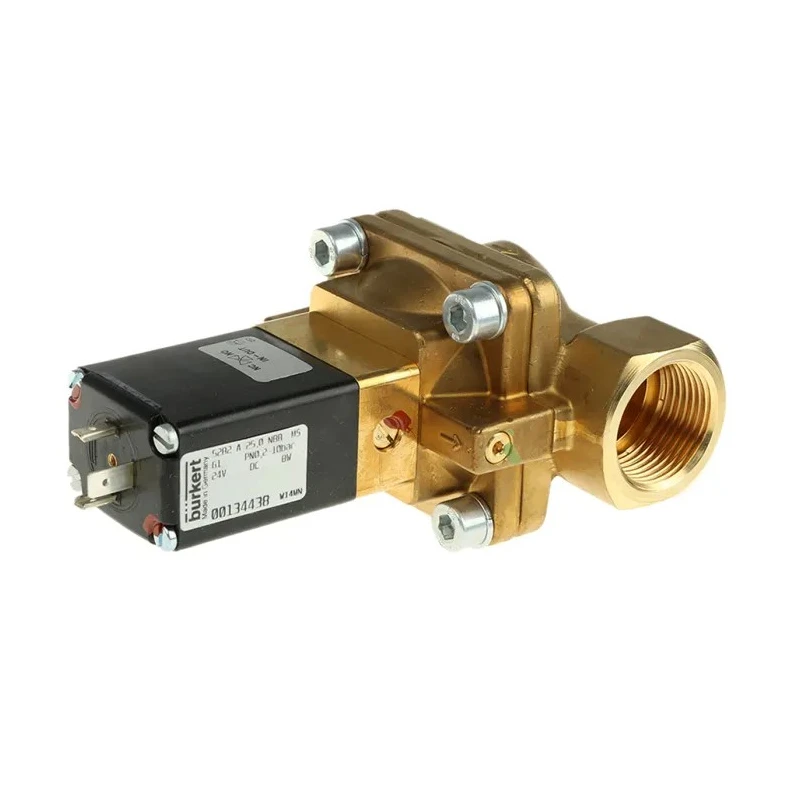

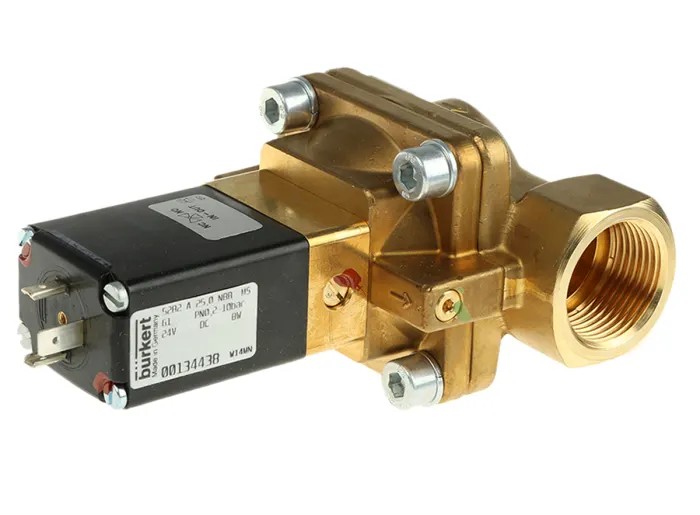

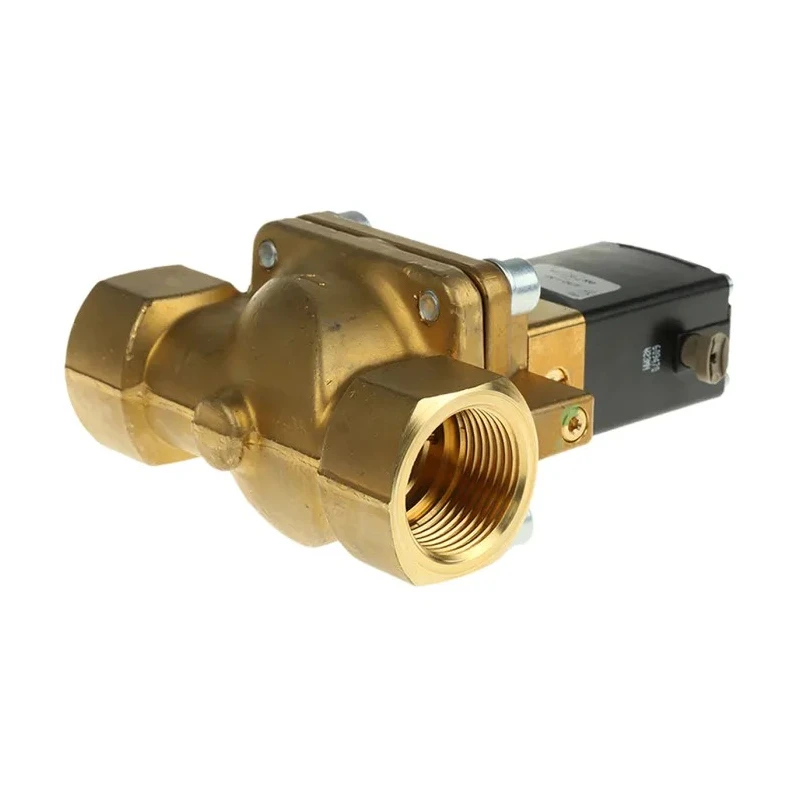

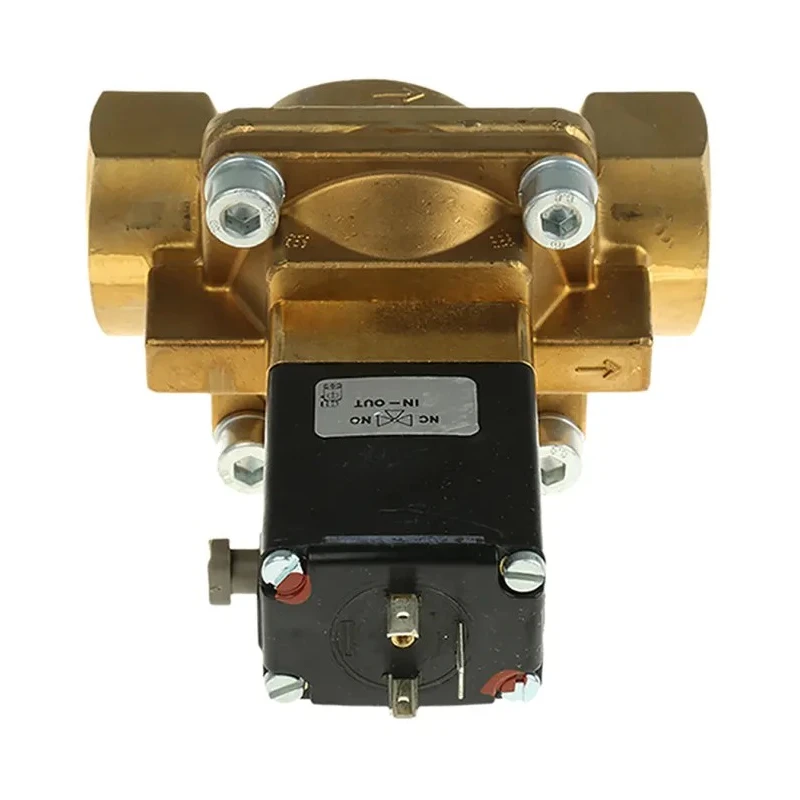

Burkert Solenoid Valve 2 Port NC Brass Body 24V DC 10 bar 25mm Orifice 5282 Series 134438
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 134438 |
| Series | 5282 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 25mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | AGA, CGA |
| Standards/Approvals | UR, Hazardous Locations Expl. proof, CGA/AGA, CSA, UL, EEx m/ed |
| Default Valve Position | NC |
| Maximum Opening Time | 0.8s |
| Flow Factor Kv | 10m³/h |
| Maximum Closing Time | 4s |
| RS PRO Solenoid Valve, 2 Port, NC, 24V 1 in, 1 inRS Stock No. | 255-4184Brand: RS PRO |
| Burkert Solenoid Valve 134434, 2 Port, NC, 24V dcBrand | Burkert |
Key Features
- Includes a diaphragm seal in the pilot valve for fluid separation.
- Coil is protected from dirty fluids and corrosion for enhanced durability.
- Suitable for gas and fluid handling industrial applications.
- Maximum operating pressure of 10 bar and temperature rating up to 55°C.
- Valve features high reliability with lockable manual override as standard.
- Opening time of 0.8 seconds and closing time of 4 seconds controlled by integrated restrictor screws.
- Protection rating IP65 suitable for hazardous and explosion proof locations.
- Body material brass ensures corrosion resistance and long service life.
Product Description
Burkert 134438 solenoid valve is a two-way normally closed valve supplied with 24V DC voltage and features a durable brass body designed for industrial fluid and gas applications. It incorporates a diaphragm seal in the pilot valve to ensure effective fluid separation and coil protection, making the valve highly resistant to dirty fluids and corrosion.
This valve is part of the Burkert series 5282 and is engineered for use with neutral gases and liquids, providing a maximum operating pressure of 10 bar and operating temperatures ranging from 0°C to 55°C. The valve offers precise flow control with an orifice diameter of 25 mm and a flow factor Kv of 10 m³/h.
It has fast response times with a maximum opening time of 0.8 seconds and a closing time of 4 seconds, optimized by integrated restrictor screws. The valve includes a lockable manual override for maintenance and emergency operation and features IP65 protection suitable for hazardous and explosion-proof locations certified by standards such as UR, CGA/AGA, CSA, and UL.
This solenoid valve is ideal for use in industrial, mechanical, laboratory, HVAC, and fluid power systems, especially where reliability and resistance to harsh operating environments are critical. Its compact design facilitates installation in fluid handling and pneumatic applications in manufacturing, water treatment, and chemical processing industries.
Includes a diaphragm seal to separate fluid and protect coil. Suitable for neutral gases and liquids handling. Brass valve body for corrosion resistance and durability. Operational at pressures up to 10 bar and temperatures up to 55°C.
Fast opening (0.8s) and closing (4s) times with integrated restrictor screws. Lockable manual override provided as standard. Protection class IP65 for hazardous location suitability. Complies with relevant industrial hazardous area certifications.
Explore a wide range of high-quality Solenoid Valves and fluid control components available to meet diverse industrial requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
The orifice diameter of the Burkert 134438 model is 25 mm.
This valve requires a supply voltage of 24V DC.
The operating temperature range for this solenoid valve is from 0°C to 55°C.
The maximum opening time is 0.8 seconds, and the maximum closing time is 4 seconds.
This valve is suitable for handling neutral gases and liquids.
Yes, the valve includes a lockable manual override for maintenance and emergency operation.
The protection rating of this model is IP65, making it suitable for hazardous and explosion-proof locations.
The body material of this valve is brass, which provides corrosion resistance.
This solenoid valve complies with various standards including UR, CGA/AGA, CSA, UL, and is certified for hazardous locations.
This solenoid valve has 2 ports and operates in a normally closed (NC) position.
The flow factor Kv of this valve is 10 m³/h.
