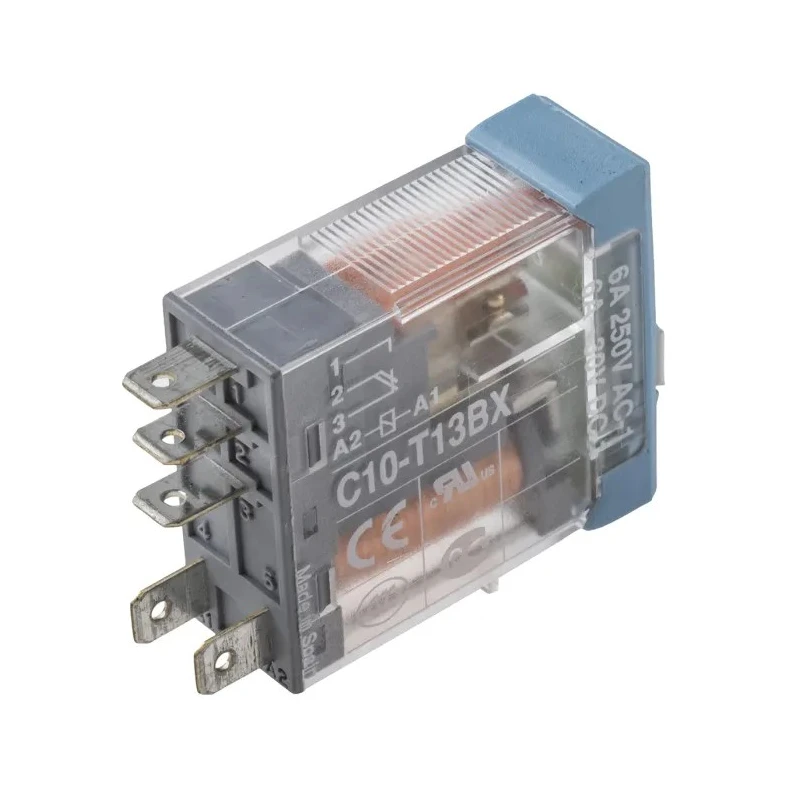

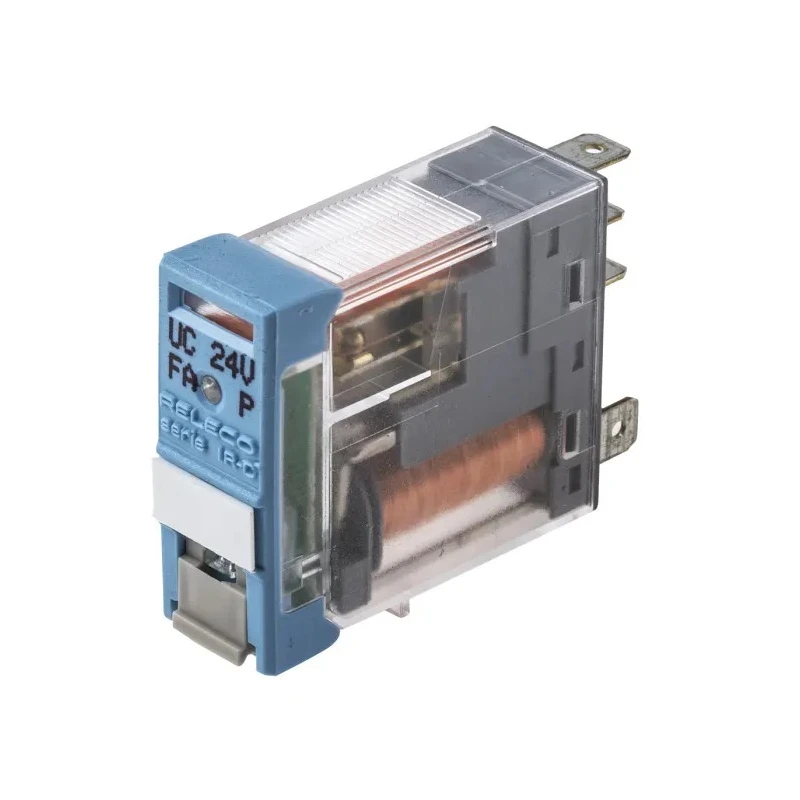

Releco PCB Power Relay with 24V AC Coil, 6A Switching Current, SPDT, Gold Plated Contacts C10-T13BX / AD 24 V

Releco C10-T13BX / AD 24 V PCB Power Relay is a high-quality power relay designed for PCB mounting applications with a coil voltage of 24V AC. It provides a 6A switching current through a Single-Pole Double-Throw (SPDT) contact configuration, making it versatile for both AC and DC switching duties. The gold plated contacts ensure enhanced conductivity and durability for reliable long-term operation.

This relay belongs to the C10 series fabricated with a coil resistance of 742 ohms and coil power of 1.1 watts, optimized for energy-efficient switching. It supports switching powers up to 1.5 kVA, with maximum switching voltages of 250V AC and 30V DC, suitable for a variety of automation, industrial control, and electrical circuit applications.

Its robust quick connect terminals and compact dimensions (35.4mm height, 28.8mm length, 12.5mm width) allow easy integration into printed circuit boards, while the wide operating temperature range from -40°C to 60°C ensures reliable performance in diverse environmental conditions. Additional features include a colour-coded test button that functions for testing or latching, LED indication for coil status, and a mechanical flag indicator for contact position, boosting diagnostic convenience.

Releco power relays are compliant with key international standards including EN, CSA, UL, RoHS, and IEC ensuring product quality and safety. Typical use cases include industrial automation systems, electrical equipment control, signal conditioning, and other demanding electronics and electrical applications.

This model is designed specifically for PCB mounting with quick connect terminals and is part of a trusted series known for robust contact systems, including bifurcated and non-bifurcated contact versions, ensuring suitability across a range of signal switching and power requirements in manufacturing, control panel building, and automation sectors.

This relay uses gold plated contacts for reliable conduction. It has a coil resistance of 742 ohms and coil power rating of 1.1 W. The relay is designed for PCB mounting and quick connect terminals. Operating temperature ranges from -40°C to 60°C for wide environmental adaptability.

This model is part of the C10 series and supports switching AC voltages up to 250V and DC voltages up to 30V. Its compact dimensions are 35.4mm height, 28.8mm length, and 12.5mm width. The relay includes test button, LED indication, and mechanical flag indicators for easy status monitoring.

Suitable for industrial and automation applications requiring robust and precise relay switching. Explore the wide range of Power Relays from Releco at EnvMart to find reliable components for your electrical and industrial automation projects.
