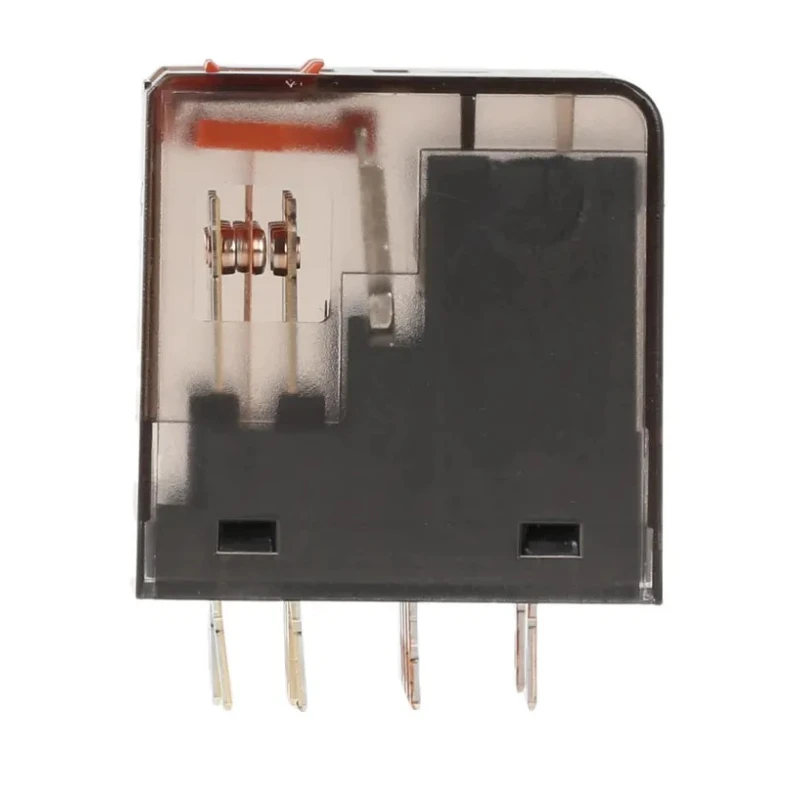

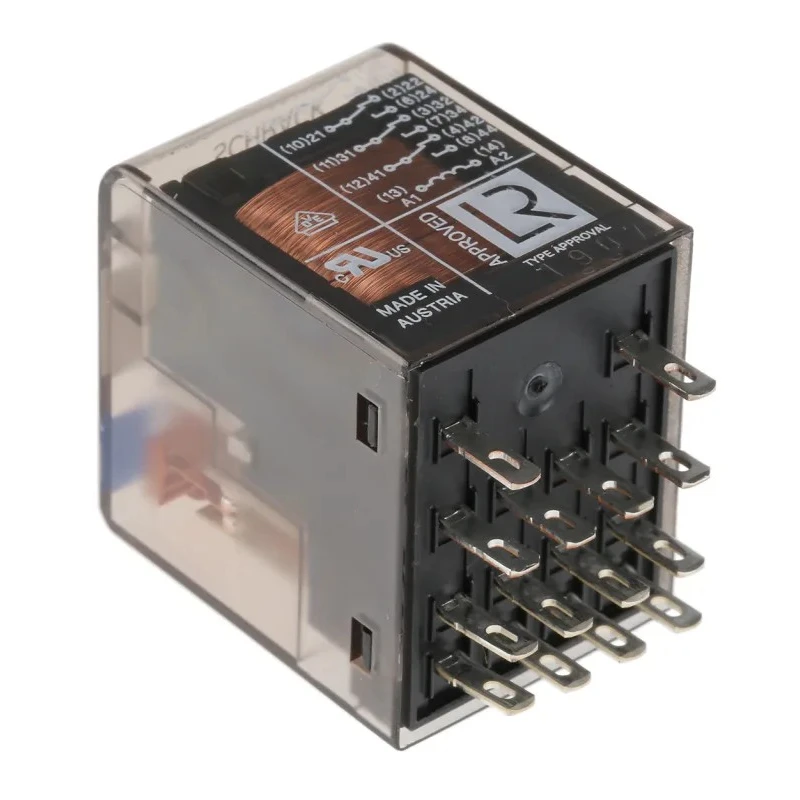

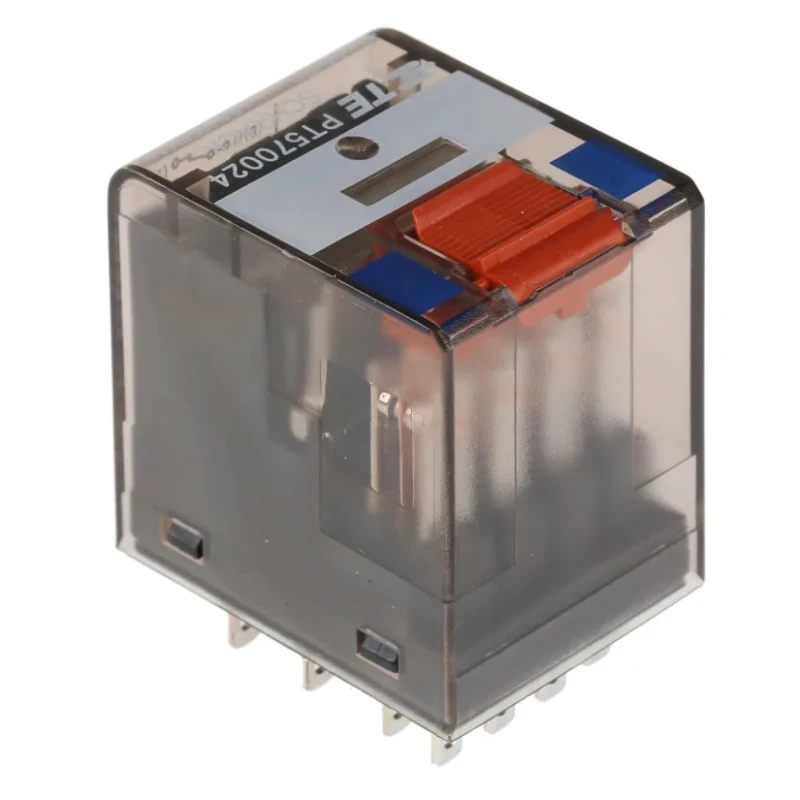

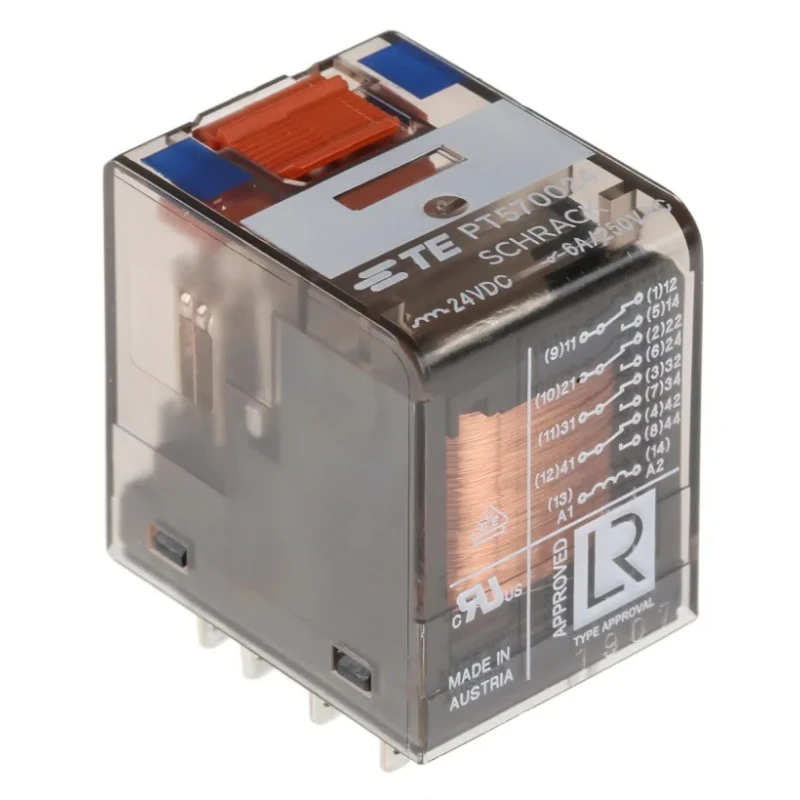

TE Connectivity 24V DC Coil Power Relay, 6A Switching Current, 4PDT, Silver Nickel Alloy Contacts PT570024 1-1393154-2

TE Connectivity PT570024 1-1393154-2 is a high-quality power relay designed for industrial and electrical automation applications requiring reliable switching capabilities. This relay operates with a 24V DC coil voltage and supports a 6A switching current with a 4PDT contact configuration, making it suitable for controlling multiple circuits simultaneously.

The relay features quick connect terminals which facilitate convenient wiring and maintenance. The coil resistance of 777 ohms and isolation coil to contact rating of 2.5kV (AC) provides dependable electrical isolation and consistent performance across varying conditions. The device is built with silver nickel alloy contacts that ensure long-term durability and excellent conductivity.

Designed to operate in environments ranging from -40°C to 70°C, this relay can function reliably in harsh temperature conditions. Electrical ratings include a switching AC voltage up to 240V AC and switching power of 1.5kVA, making it well suited for industrial control panels, automation systems, HVAC, and other commercial electrical applications.

The compact form factor with dimensions 35mm height, 28mm length, and 22.5mm width allows space-efficient installation. It is certified under IEC, RoHS, UL, and VDE standards, ensuring high safety and regulatory compliance for industrial use.

Additional features include a mechanical indicator for contact position visibility, an integrated LED for coil status indication, and a manual lockable test facility, enabling operators to verify relay operation easily.

This relay includes a quick connect terminal type for easy installation. The coil resistance is precisely 777 ohms for stable switching operation. Designed for operating temperatures from -40°C to 70°C, suitable for varied environments.

Switching AC voltage rating is up to 240V AC for versatile applications. Contact material of silver nickel alloy ensures durability and good conductivity. Compact dimensions with 35mm height, 28mm length, and 22.5mm width optimize space usage.

Certified under IEC, RoHS, UL, and VDE standards, ensuring compliance and safety. Includes mechanical indicator, manual and lockable test facility with LED indicator for operation status.

This TE Connectivity Power Relay is ideal for industrial machinery, electrical automation systems, HVAC control systems, and various manufacturing and commercial electrical applications. Its robust design and multiple certifications make it a reliable component for complex electrical circuit switching and control tasks.
