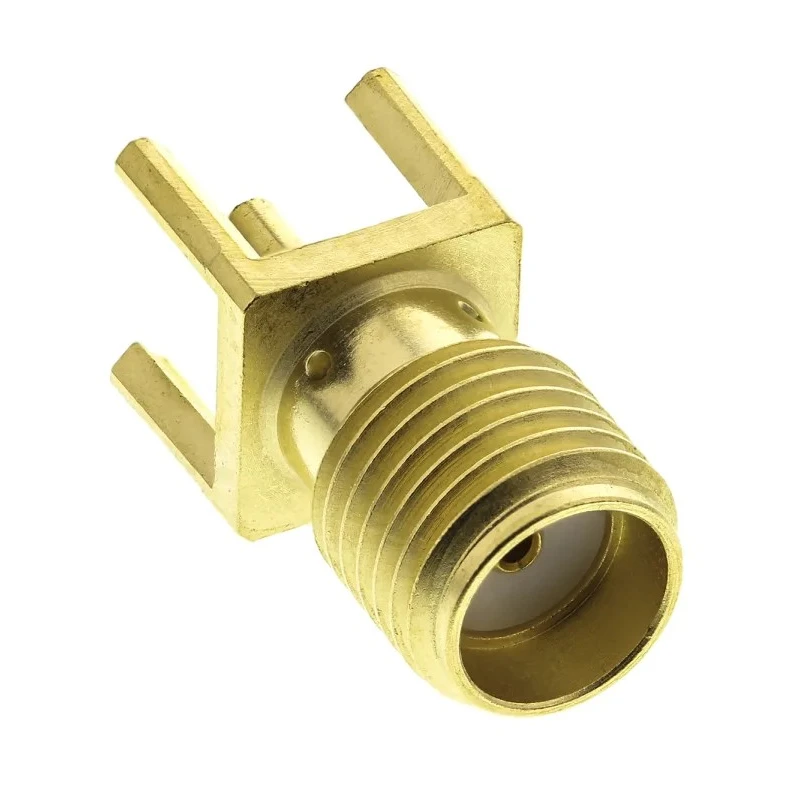

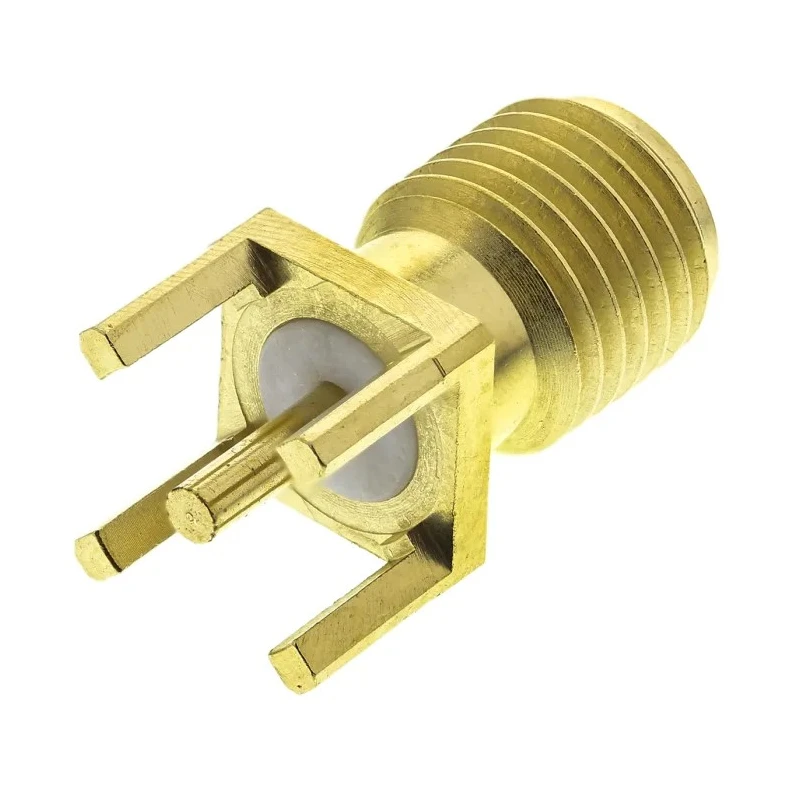

Radiall SMA Series 50 Ω Coaxial Connector PCB Female SMA, Straight Body Solder R125426000W
Specifications
| Country of Origin | France |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R125426000W |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector PCB Female SMA, 50 Ω, Straight Body SolderRS Stock No. | 738-5897Brand: RS PRO |
| RS PRO Coaxial Connector PCB Female SMA, Straight Body SolderBrand | RS PRO |
Key Features
- SMA connector type designed for PCB mounting provides reliable signal transmission.
- Gold-plated stainless steel body ensures durability and corrosion resistance.
- Operates up to 18 GHz frequency suitable for RF applications.
- Contact material is beryllium copper plated with gold over nickel for excellent conductivity.
- Wide operating temperature range from -65°C to 165°C accommodates harsh environments.
- Standard size with straight orientation for seamless PCB integration.
- Solder termination type facilitates secure mechanical and electrical connection.
- Manufactured in France ensuring high quality standards.
Product Description
Radiall R125426000W SMA Series coaxial connector is a 50 ohm impedance female SMA connector designed for printed circuit board (PCB) mounting. It features a straight body solder termination which provides a robust and secure connection for electronic components, especially for RF and microwave applications.
The connector body is made from gold-plated stainless steel, offering excellent resistance to corrosion and mechanical wear. The centre contact uses beryllium copper with a gold over nickel plating to ensure outstanding electrical conductivity and long-lasting performance.
This SMA connector operates at frequencies up to 18 GHz, making it suitable for high-frequency signal transmission in telecommunications, test and measurement equipment, and other industrial electronic systems.
Designed for reliable use in demanding environments, it supports a wide temperature range from -65°C to 165°C, ensuring stable performance under extreme conditions. The standard size and straight orientation allow for easy integration into PCBs with solder termination type for secure mechanical and electrical bonding.
Manufactured in France, this Radiall connector complies with SMA series performance expectations, but has no specific approvals or certifications listed. SMA connector type designed for PCB mounting provides reliable signal transmission.
Gold-plated stainless steel body ensures durability and corrosion resistance. Operates up to 18 GHz frequency suitable for RF applications. Contact material is beryllium copper plated with gold over nickel for excellent conductivity.
Wide operating temperature range from -65°C to 165°C accommodates harsh environments. Standard size with straight orientation for seamless PCB integration. Solder termination type facilitates secure mechanical and electrical connection.
Manufactured in France ensuring high quality standards.
This product is widely used in industrial, telecommunications, laboratory, and manufacturing environments requiring robust RF coaxial connections on PCBs. Explore more Coaxial Connectors and SMA series products at EnvMart to find the best solutions for your project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMA connector operates at frequencies up to 18 GHz, making it suitable for high-frequency RF applications.
It supports a wide operating temperature range from -65°C to 165°C, accommodating harsh environments.
It features a solder termination type, which facilitates a secure mechanical and electrical connection.
The contact material is beryllium copper plated with gold over nickel, ensuring excellent conductivity.
This model has a 50 ohm impedance rating, making it suitable for various RF applications.
It has a straight body orientation, allowing for seamless integration into printed circuit boards (PCBs).
It is manufactured in France, ensuring adherence to high quality standards.
The body is made from gold-plated stainless steel, providing corrosion resistance and durability.
It is widely used in industrial, telecommunications, laboratory, and manufacturing environments requiring robust RF coaxial connections on PCBs.
This connector is classified as a standard size, which aids in its compatibility with various PCB designs.
This model is a female SMA connector, designed for PCB mounting.
The body plating is gold, which enhances its resistance to corrosion and improves signal transmission.
