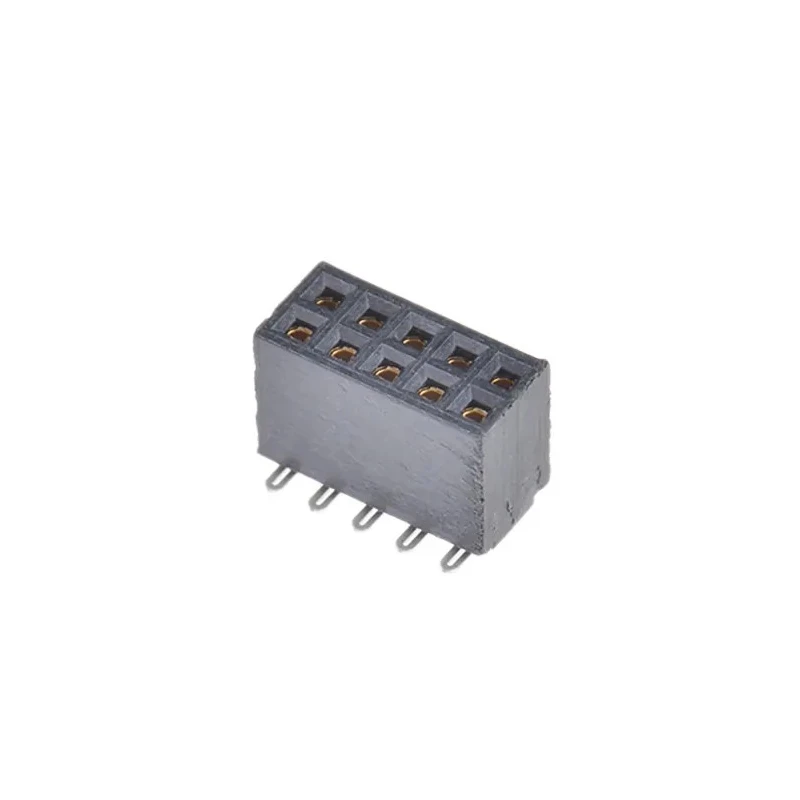

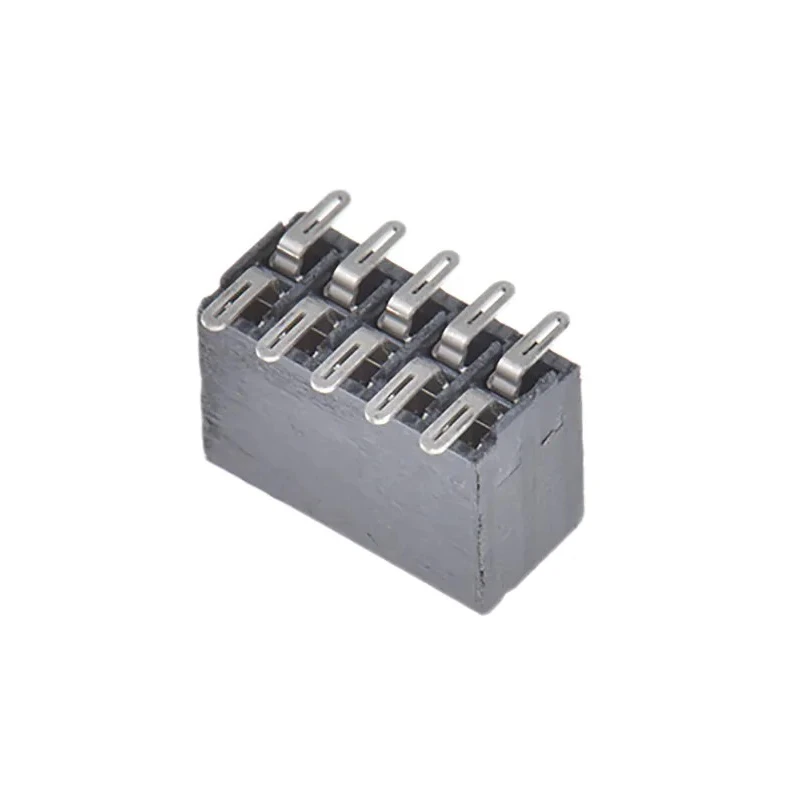

Samtec SFMC Series Straight Surface PCB Socket 10-Contact 2 Row 1.27 mm Pitch Solder SFMC-105-02-S-D

The Samtec SFMC-105-02-S-D is a high-quality SFMC Series Straight Surface PCB Socket designed for demanding electronic component applications. Featuring 10 contacts arranged in 2 rows with a 1.27 mm row pitch, this socket enables compact and reliable board-to-board connectivity. It incorporates a gold-plated beryllium copper alloy contact system with phosphor bronze spring fingers, ensuring excellent electrical performance and durability.

Constructed with a liquid crystal polymer housing, the socket offers robust mechanical strength and thermal stability, suitable for operating temperatures ranging from -55 °C to 125 °C. The socket supports a maximum current of 12 A and withstands voltages up to 310 V, making it suitable for diverse industrial and commercial electronic applications.

The solder termination type and surface mount technology allow for straightforward PCB integration with a straight orientation that maintains signal integrity. This socket type is ideal for use in telecommunications, computer hardware, instrumentation, and automotive electronics where secure and flexible connections are essential.

The socket has 10 contacts arranged in 2 rows for compact integration. Features a 1.27 mm pitch ensuring precise signal interfacing. Made with a liquid crystal polymer housing for durable and stable mounting. Gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance.

Supports current up to 12 A and voltage rating of 310 V for reliable performance. Operates reliably within a temperature range of -55 °C to 125 °C. The straight orientation and surface mount design facilitate easy PCB placement.

Compatible with high-speed data up to 8 Gbps.

This Samtec socket is well-suited for electronic assembly manufacturing, testing, and repair environments, providing a dependable interface for board-to-board connections. Its compliance with industry standards, despite having no specific approvals, ensures quality and performance in industrial electronics, telecommunications, laboratory equipment, and consumer electronics sectors.
