STMicroelectronics Brushed DC Motor Driver IC 48 V 4 A PowerSO 20-Pin L6201PSTR

Free Delivery in India | Lowest Global Shipping Charges

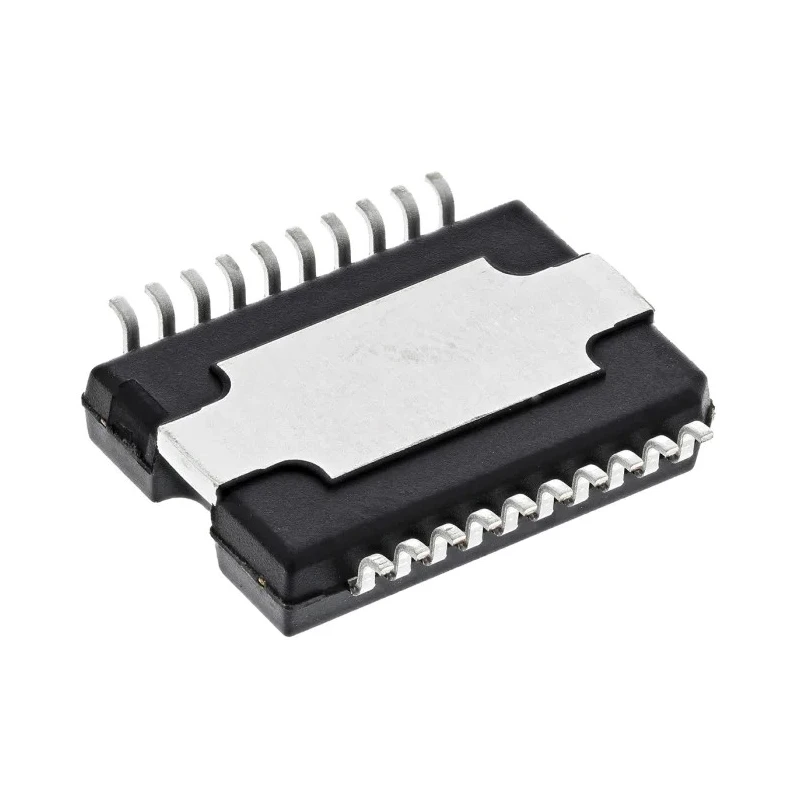

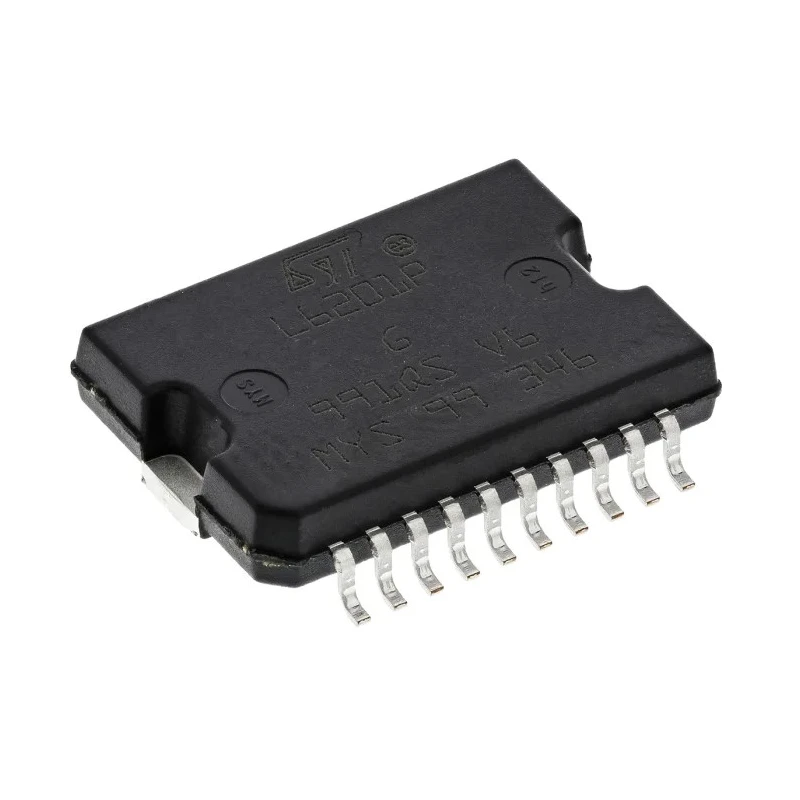

STMicroelectronics Brushed DC Motor Driver IC 48 V 4 A PowerSO 20-Pin L6201PSTR

Name: STMicroelectronics Brushed DC Motor Driver IC 48 V 4 A PowerSO 20-Pin L6201PSTR
Brand: STMicroelectronics
SKU: 219350
Price: 24.01 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	3.3mm
Length	16mm
Model	L6201PSTR
Width	11.1mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L6201
Configuration	Full Bridge
Output Current	4A
Maximum Operating Temperature	150°C
Package Type	PowerSO
Minimum Operating Temperature	-40°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	48V
Maximum Supply Voltage	48V
Minimum Supply Voltage	12V
Supply Current	30μA
Maximum IGBT Collector Current	4A
Typical Switching Frequency	100kHz
Inverter Power Rating	20W

Key Features

Designed to operate at supply voltages from 12 V to 48 V for versatile usage.
Supports full bridge configuration enabling bidirectional motor control.
Capable of continuous output current of up to 4 A to manage demanding loads.
Equipped with a 20-pin PowerSO surface mount package for compact PCB integration.
Operating temperature range from -40°C to 150°C suitable for harsh environments.
Typical switching frequency of 100 kHz for efficient motor actuation.
Low supply current of 30 μA ensures energy-efficient operation.
Inverter power rating is 20 W, suitable for various brushed DC motor applications.

Product Description

STMicroelectronics L6201PSTR is a robust Brushed DC Motor Driver IC designed for motor and motion control systems requiring power up to 48 V and 4 A current output. Packaged in a compact 20-pin PowerSO surface mount, it integrates seamlessly with microcontrollers, DSPs, or FPGAs, making it ideal for industrial motor driver applications.

The device supports full bridge configuration allowing precise bidirectional control of brushed DC motors. Operating across a wide voltage range from 12 V to 48 V and temperatures from -40°C up to 150°C, it ensures reliable performance even in demanding industrial environments.

This motor driver IC features a typical switching frequency of 100 kHz and low supply current of 30 μA, delivering efficient and effective motor actuation with minimal power consumption. Mechanical dimensions include a length of 16 mm, width of 11.1 mm, and height of 3.3 mm, contributing to space-saving designs.

With an inverter power rating of 20 W, L6201PSTR supports numerous brushed motor control tasks in sectors such as industrial automation, robotics, and consumer electronics. Although it has no automotive standard certification, it remains suited for a broad range of industrial and manufacturing use cases.

Key features of this IC include compatibility with standard control logic inputs, full bridge motor drive configuration, and efficient thermal management suited for continuous operation in industrial applications.

Designed for reliable brushed DC motor control with full bridge output stage. Operates efficiently over wide voltage and temperature ranges. Compact surface mount PowerSO package enables easy PCB integration. Supports high switching frequency for smooth motor performance.

Low standby current reduces energy consumption in idle states. Suited for industrial motors, robotics, automation, and power management. Explore more Motor Driver ICs from STMicroelectronics in our electronics components category for your industrial and manufacturing power control needs.
