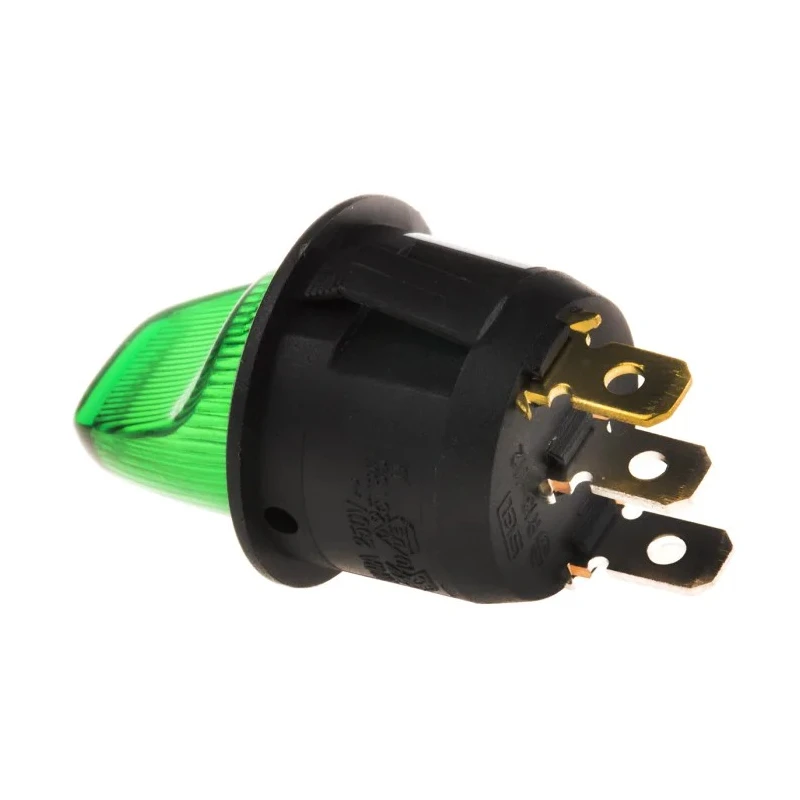

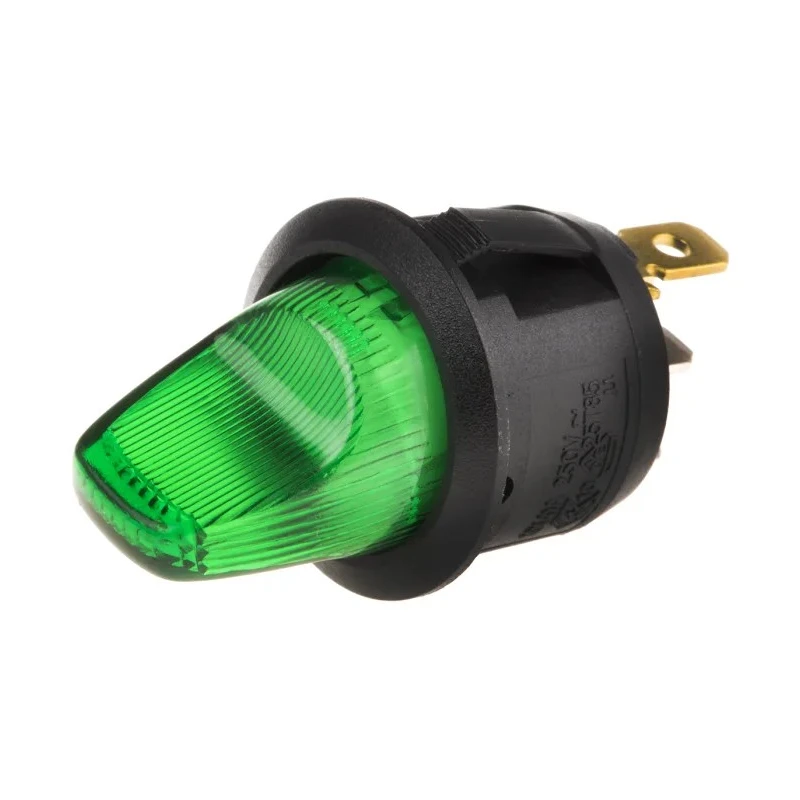

RS PRO Toggle Switch Panel Mount On-Off SPST Tab Terminal 12 V dc 250 V ac 419-855

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch Panel Mount On-Off SPST Tab Terminal 12 V dc 250 V ac 419-855

Name: RS PRO Toggle Switch Panel Mount On-Off SPST Tab Terminal 12 V dc 250 V ac 419-855
Brand: RS PRO
SKU: 118074
Price: 360.29 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	419-855
Mount Type	Panel
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	20.2 mm
Terminal type	Tab
Standards/Approvals	CQC, CSA, ENEC, UL, VDE
Switch Operation	On-Off
Actuator Length	16mm
Contact DC Voltage	12V dc
Switch Contact Current	16A
Contact AC Voltage	250V ac
Actuator Material	Polycarbonate
RS PRO Toggle Switch, Panel Mount, On-Off, SPST, Tab Terminal, 12 V dcBrand	RS PRO

Key Features

The toggle switch features a green illuminated paddle to indicate the ON position.
Constructed with a flame retardant Nylon 66 case and a robust Polycarbonate actuator.
Easy panel mounting into a 20.2 mm cutout with snap-in design and 4.8 x 0.8 mm quick connect terminals.
Rated for a contact current of 16A with high reliability and durability standards.
Operates within a temperature range of -20°C to 85°C, suitable for harsh environments.
Sealed construction offers protection against moisture and water ingress.
Complies with international standards including CQC, CSA, ENEC, UL, and VDE.
Compact dimensions of 23 x 40 mm make it ideal for busy electrical panels.

Product Description

RS PRO 419-855 Toggle Switch is a high-quality, illuminated panel mount switch designed for industrial and commercial electrical applications. Featuring a single pole single throw (SPST) configuration, this switch supports On-Off operation for efficient control of electrical circuits at 12 V dc and 250 V ac.

The switch is engineered with a flame retardant Nylon 66 case that meets UL94V-2 standards, ensuring safety and durability. The paddle actuator is made of tough Polycarbonate, giving it excellent impact resistance and a professional look with green illumination when switched on.

Designed for user convenience, it mounts easily into panels with a 20.2 mm diameter cutout and uses snap-in quick connectors and 4.8 x 0.8 mm tab terminals for fast installation and maintenance.

This toggle switch supports a contact current of 16A, with a contact resistance maximum of 50mΩ, making it dependable for frequent switching cycles. It is sealed for moisture and water protection and can operate reliably in ambient temperatures ranging from -20°C up to 85°C.

The compact dimensions of 23 mm by 40 mm suit installation in crowded panel environments, ensuring space efficiency without compromising quality or function.

Certified to comply with multiple international standards including CQC, CSA, ENEC, UL, VDE and RoHS compliant, this RS PRO switch guarantees professional quality and performance. This makes it suitable for electrical panels, automation control systems, HVAC, manufacturing, and other industrial uses.

The toggle switch features a green illuminated paddle to indicate the ON position. Constructed with a flame retardant Nylon 66 case and Polycarbonate actuator. Panel mount design with 20.2 mm cutout and snap-in quick connectors.

16A contact current rating with a low 50mΩ contact resistance. Operates from -20°C to 85°C and has sealed moisture protection. Compact 23 x 40 mm size ideal for panel installations. Complies with CQC, CSA, ENEC, UL, and VDE standards and RoHS compliant.

For professional-grade Toggle Switches with durability and ease of installation, choose the RS PRO 419-855 model. Explore more quality electrical components by browsing the Electronics & Electricals category at EnvMart.
