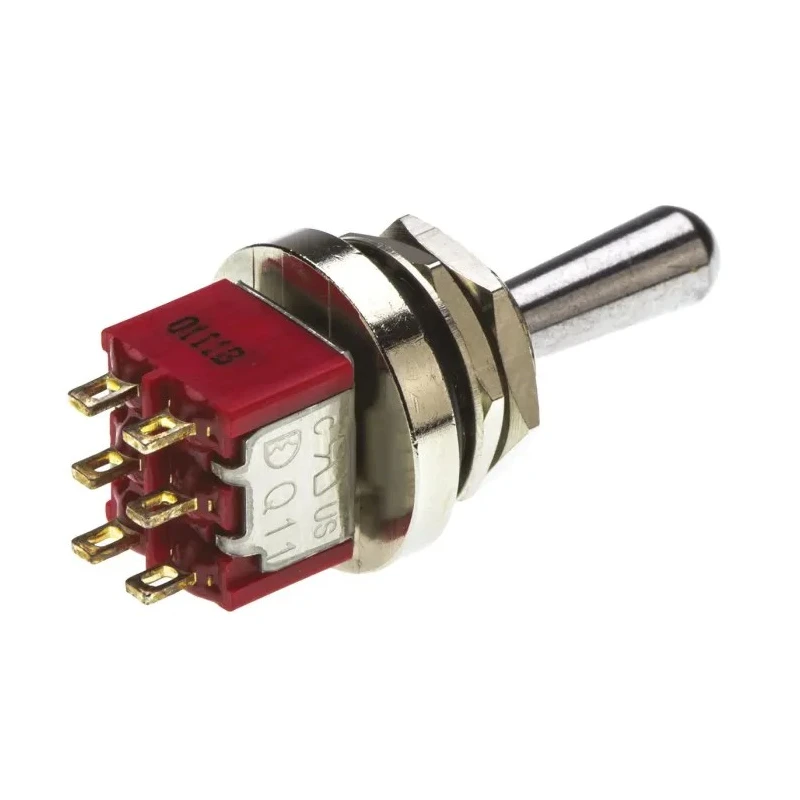

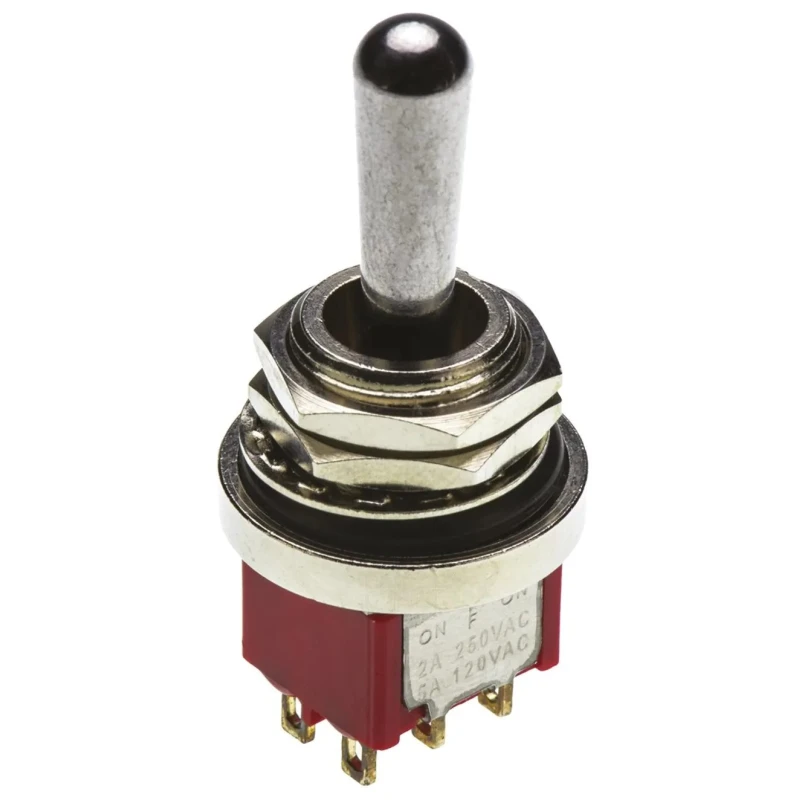

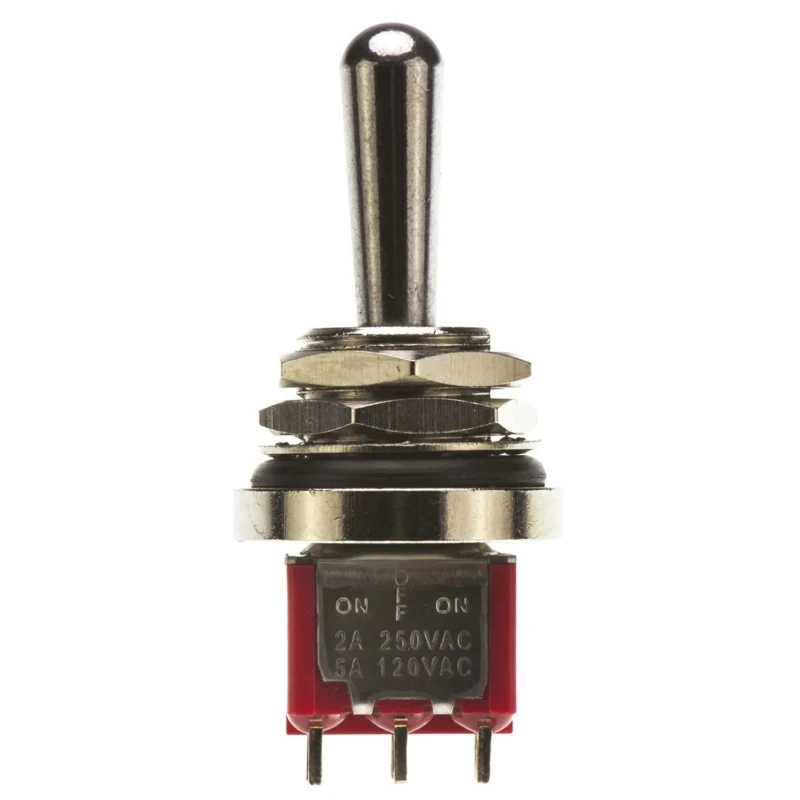

RS PRO Panel Mount Toggle Switch On-Off-On DPDT 5A 26V DC 120V AC Chrome Plated Brass Actuator 394-437

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel Mount Toggle Switch On-Off-On DPDT 5A 26V DC 120V AC Chrome Plated Brass Actuator 394-437

Name: RS PRO Panel Mount Toggle Switch On-Off-On DPDT 5A 26V DC 120V AC Chrome Plated Brass Actuator 394-437
Brand: RS PRO
SKU: 117628
Price: 1536.17 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	394-437
Mount Type	Panel
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-Off-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	11.91 mm
Terminal type	Solder
Standards/Approvals	RoHS, CE, UL, CSA
Switch Operation	On-Off-On
Actuator Length	17.56mm
Contact DC Voltage	26V dc
Switch Contact Current	5A
Mechanical Life	40000Operations
Contact AC Voltage	120V ac
Actuator Material	Chrome Plated Brass

Key Features

This toggle switch features a double pole double throw (DPDT) contact configuration for versatile circuit control.
The switch operation is On-Off-On, allowing momentary and maintained switching positions.
It is designed for panel mounting with solder type terminals for secure connections.
The actuator is chrome plated brass, ensuring durability and smooth operation.
Panel cutout size is 11.91 mm with an actuator length of 17.56 mm for fitting and operation.
The switch supports a mechanical life of 40,000 operations under optimal conditions.
Operating temperature range spans from -30°C to 85°C, suitable for varied environments.
Complies with RoHS, CE, UL, and CSA standards assuring quality and safety.

Product Description

RS PRO 394-437 is a high-quality panel mount toggle switch featuring a double pole double throw (DPDT) contact configuration and On-Off-On switch operation. It is designed to carry up to 5 Amps of current with contact voltages rated at 26 V DC and 120 V AC, making it suitable for a wide range of electrical and automation applications.

This toggle switch incorporates solder terminal types and is constructed with a durable chrome plated brass actuator, providing robust and reliable performance. The panel cutout size is precisely 11.91 mm, and the actuator length extends to 17.56 mm, ensuring a precise fit in control panels.

The switch is epoxy sealed to prevent contamination during soldering, with a Diallyl Phthalate (DAP) case that meets the UL94V-0 flammability rating. Silver contacts ensure excellent electrical conductivity and durability. This device is suitable for industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.

The switch supports operation in ambient temperatures from -30°C to 85°C and offers a mechanical life estimated at 40,000 switch operations, providing longevity in demanding environments. Compliance with RoHS, CE, UL, and CSA standards further guarantees safety and regulatory adherence.

This switch is ideal for industrial automation systems requiring reliable DPDT switching functionality. It enables flexible circuit configurations with On-Off-On momentary switching options. Designed for secure panel mounting with standard solder terminals for ease of installation.

The robust chrome plated brass actuator ensures a strong tactile feel and durability. Epoxy sealed terminals resist contamination, extending switch life under soldering conditions. The switch operates safely within a wide temperature range from -30°C to 85°C.

High quality construction with a DAP compliant case meets stringent safety certifications. Suitable for use in electrical control, HVAC, manufacturing, and automation applications.

RS PRO branded switches are known for their reliability and compliance in demanding industrial environments. Explore a wide range of Toggle Switches in our Electronics & Electricals category for suitable control solutions.
