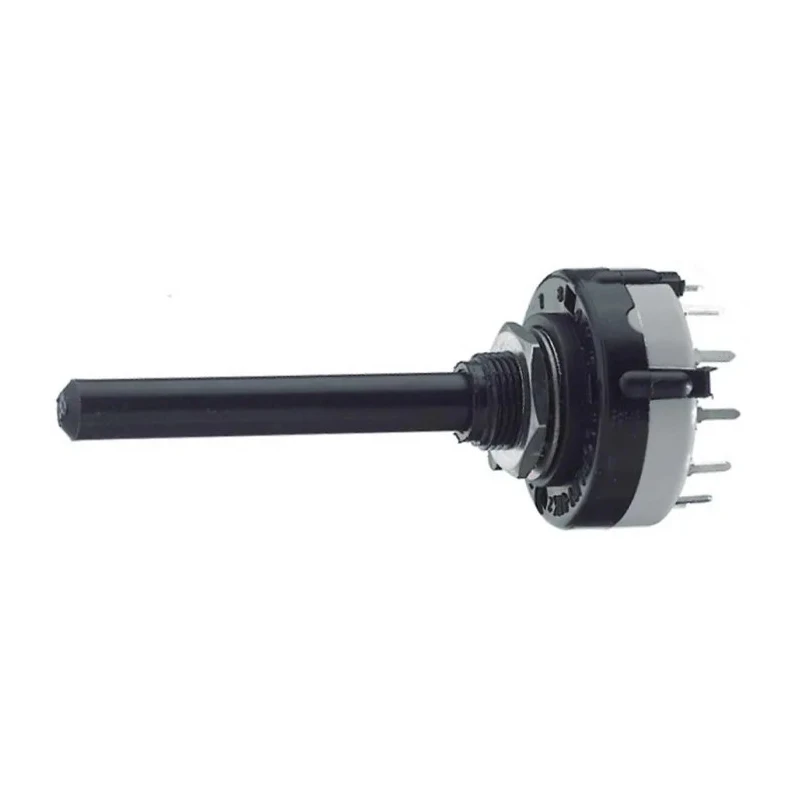

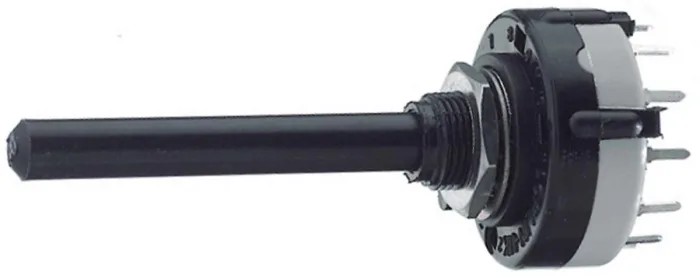

Lorlin 4P Rotary Switch, 150mA Contact Current, Nylon Housing, Solder Terminals CK1047
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1047 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4P |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Rated for 150mA contact current at 250V AC and 24V DC.
- Constructed with durable nylon housing for reliable operation.
- Features 4 pole contact configuration for versatile switching applications.
- Panel mount type with solder terminals for secure connection.
- Operates within temperature range of -30°C to 85°C.
- Mechanical life rating of 10,000 cycles ensuring long-term durability.
- Compact dimensions with 27.5mm diameter and 59.1mm height.
- 90 degree angle of throw with 30º indexing for precise switching control.
Product Description
Lorlin CK1047 is a 4 pole rotary switch designed to handle a contact current of 150mA at up to 250V AC and 24V DC. It features a robust nylon housing and solder terminals suitable for panel mounting in industrial and electrical automation applications.
This rotary switch has a compact diameter of 27.5mm and an overall height of 59.1mm. The actuator has a 1.5-inch long spindle with a 0.25-inch diameter and a 30mm flat to facilitate secure mounting with grub screws. The bush measures 8mm in length with a 9.52x32TPI thread, ensuring stable installation.
The switch operates efficiently within a temperature range from -30°C to 85°C and offers a mechanical life of 10,000 cycles, making it suitable for demanding environments. Its 90-degree angle of throw and shorting make-before-break (MBB) contact types support precise and reliable switching operations.
Manufactured in the United Kingdom, this model complies with RoHS standards, ensuring environmentally safe materials and construction. Typical use cases include industrial control panels, automation systems, and electrical equipment requiring compact and reliable rotary switching.
Rated for 150mA contact current at 250V AC and 24V DC. Durable nylon housing providing electrical insulation and mechanical protection. Panel mount type with solder terminals facilitating secure electrical connections. 4 pole contact configuration allowing complex switching schemes.
Temperature rating from -30°C to 85°C for diverse environments. Mechanical life of 10,000 cycles ensuring longevity in industrial applications. Compact 27.5mm diameter and 59.1mm height for space-efficient installation. Complies with RoHS environmental standards and manufactured in United Kingdom.
This rotary switch is part of the CK series, offering a reliable and precise switching solution for electrical and automation systems. It is ideal for industrial, laboratory, manufacturing, and commercial environments where repetitive switching and durability are critical. Explore related Rotary Switches and electrical components in EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 150mA.
It is rated for a maximum of 250V AC and 24V DC.
This rotary switch operates efficiently within a temperature range of -30°C to 85°C.
The mechanical life rating of this switch is 10,000 cycles.
This model is designed for panel mounting with solder terminals.
The switch has a diameter of 27.5mm and a height of 59.1mm.
It features a 4 pole contact configuration, allowing for versatile switching applications.
The housing of this model is constructed from durable nylon, providing electrical insulation and mechanical protection.
The angle of throw for this rotary switch is 90 degrees.
Yes, it complies with RoHS standards, ensuring environmentally safe materials and construction.
This rotary switch is equipped with solder terminals for secure electrical connections.
It is manufactured in the United Kingdom.
