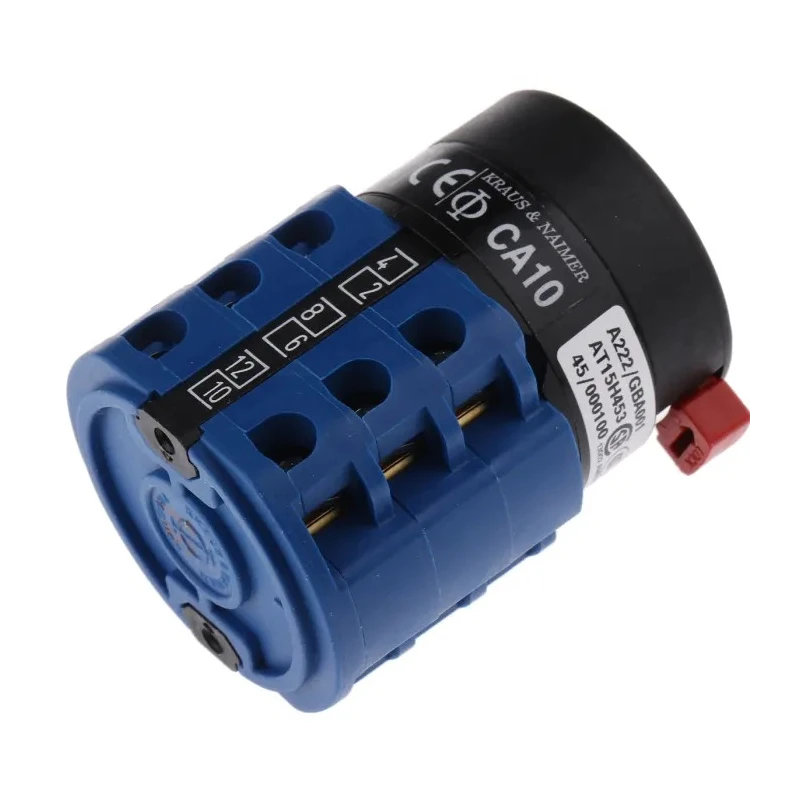

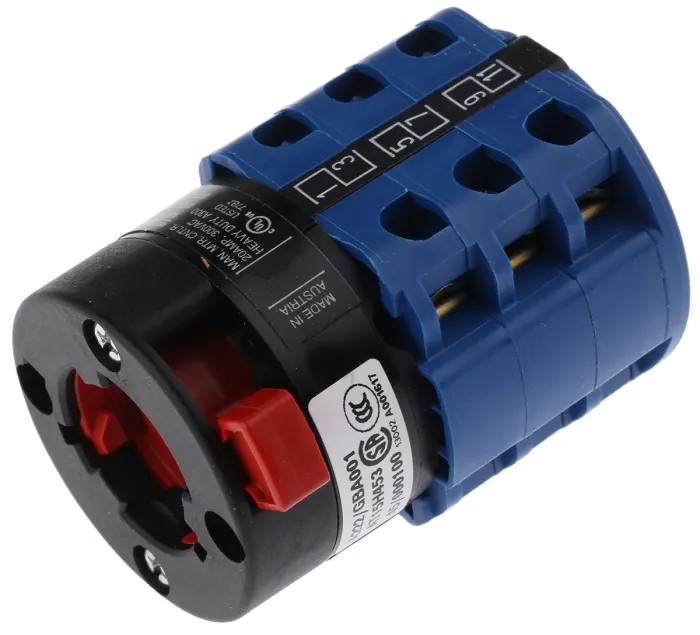

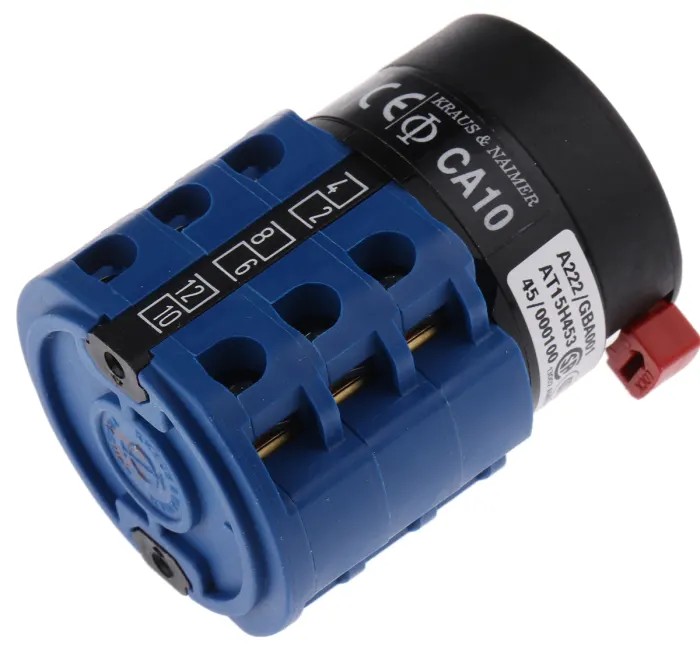

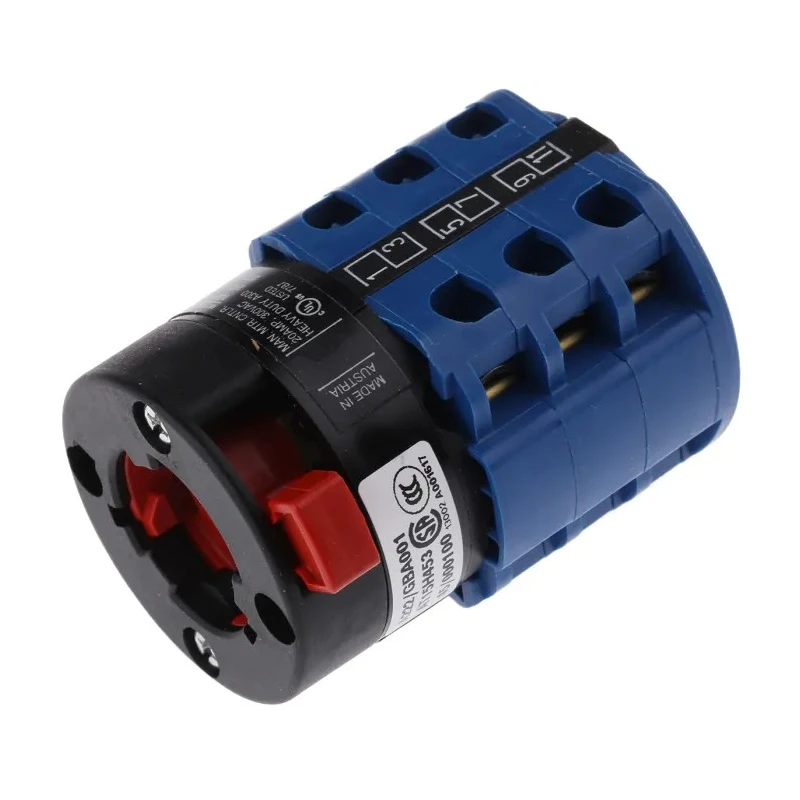

Kraus & Naimer Rotary Switch Cam Switch Panel Mount 2 Position 60° 18 Poles 20A CA10.A222/GBA001.*FT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Kraus & Naimer |
| Length | 70.7mm |
| Model | CA10.A222/GBA001.*FT |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Series | CA |
| Maximum Operating Temperature | 55°C |
| Actuator Type | Rotary Knob |
| Number of Positions | 2 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Finger-Proof |
| Number of Poles | 18 |
| Standards/Approvals | CENELEC EN50005 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 660V |
| Contact Current | 20A |
| Angle of Throw | 60 ° |
| Kraus & Naimer 2 Position 60 °, Rotary Knob Actuator 20 ABrand | Kraus & Naimer |
| ABB, 3P 2 Position 60°, 25ABrand | ABB |
Key Features
- Rotary knob actuator with 60° angle of throw for precise switching.
- Robust panel mount design suitable for industrial applications.
- Rated contact current of 20A at 660V for demanding electrical setups.
- Constructed with finger-proof terminals ensuring operator safety.
- IP65 rated for dust and water resistance.
- Operates reliably in temperatures ranging from -25°C to 55°C.
- Long mechanical life of up to 1,000,000 operations for durability.
- Conforms to CENELEC EN50005 standards for quality assurance.
Product Description
Kraus & Naimer CA10.A222/GBA001.*FT is a high-quality rotary switch cam switch designed for panel mounting. It features a rotary knob actuator with a 60° angle of throw and offers 2 positions for reliable switching operations. Rated at 20A contact current and capable of handling up to 660V contact voltage, this switch is engineered for demanding industrial and electrical automation applications.
The switch has 18 poles and finger-proof terminal design, enhancing operator safety during installation and maintenance. Its IP65 rating ensures protection against dust ingress and water jets, making it well-suited for harsh environments.
This Cam Switch performs reliably within a temperature range from -25°C to 55°C and boasts a mechanical life of up to 1,000,000 operations, ensuring longevity and consistent performance in industrial settings.
The product meets the stringent requirements of the CENELEC EN50005 standard, which certifies its compliance with European electrical safety and performance norms. Its compact form factor, with dimensions of 70.7 mm length and 48 mm width, allows easy integration into electrical panels and automation systems.
Rotary knob actuator with 60° throw angle. Panel mount type for flexible installation. Rated 20A contact current at 660V. Finger-proof terminal type for enhanced safety. IP65 protection rating for industrial applications.
Temperature operating range from -25°C to 55°C. Mechanical life of 1,000,000 operations. Meets CENELEC EN50005 standards. Compact dimensions of 70.7 mm by 48 mm.
This rotary switch is ideal for use in industrial automation, electrical panels, and control systems where reliable switching with robust construction is essential. For more industrial-grade switches and electrical components, explore the extensive catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch has a contact current rating of 20A.
It can handle a maximum contact voltage of 660V.
The actuator has a 60° angle of throw.
This model features 18 poles.
The switch has an IP65 rating, indicating it is dust-tight and protected against water jets.
It operates reliably within a temperature range from -25°C to 55°C.
It features finger-proof terminals for enhanced safety during installation and maintenance.
The mechanical life of this model is rated for up to 1,000,000 operations.
It conforms to the CENELEC EN50005 standards for electrical safety and performance.
The dimensions are 70.7 mm in length and 48 mm in width.
This switch is designed for panel mounting.
It is suitable for industrial automation, electrical panels, and control systems.
