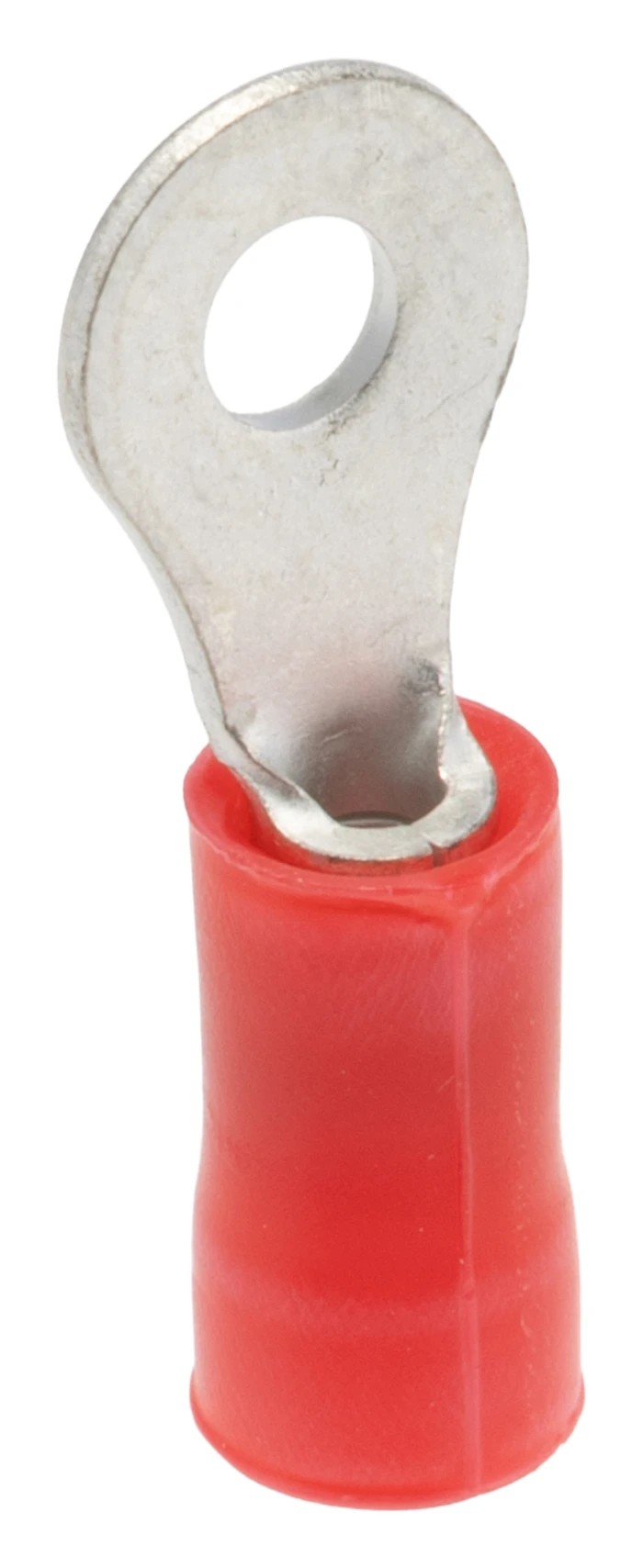

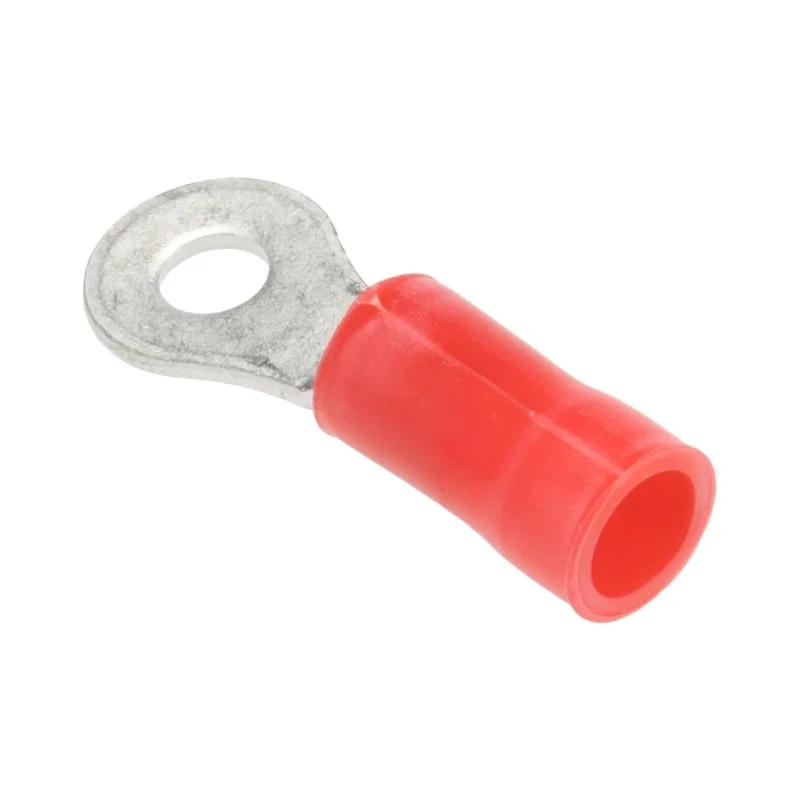

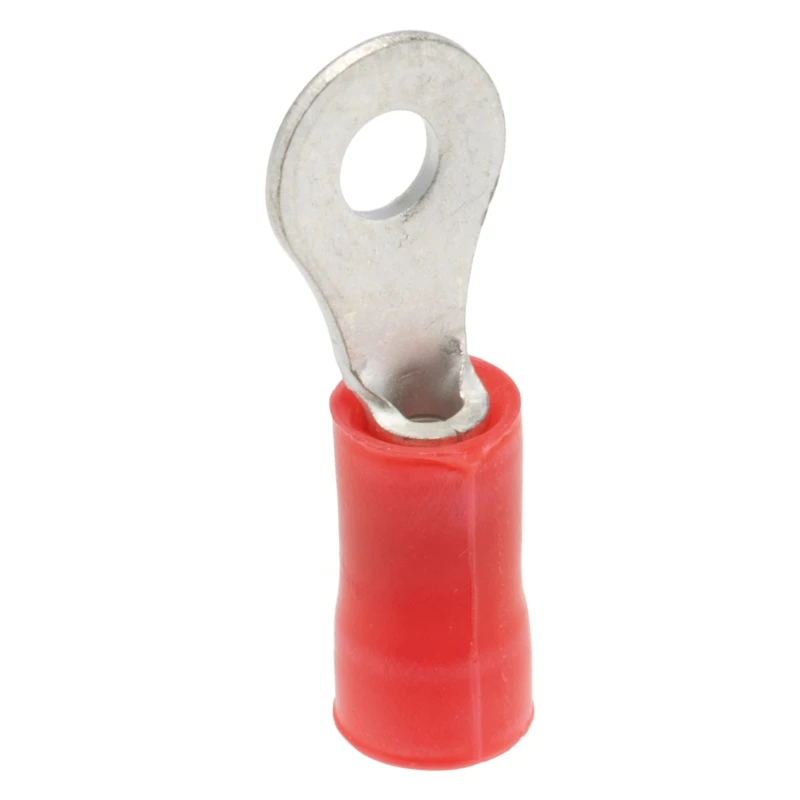

TE Connectivity PLASTI-GRIP Insulated Ring Terminal 2.84 mm Stud Size 22 AWG to 16 AWG Wire Size Red 34143
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 34143 |
| Insulation | Insulated |
| Overall Length | 20.55mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.02mm |
| Stud Size | 2.84 mm |
Key Features
- Constructed with high conductivity copper contact plated with tin for corrosion resistance.
- Insulated with high dielectric strength 94V-0 rated vinyl sleeve for electrical safety.
- Red color coding for easy identification matching wire sizes 22 AWG to 16 AWG.
- Outer ring diameter of 7.14 mm and inner ring diameter of 3.02 mm for compatibility with specified stud sizes.
- Overall length of 20.55 mm and thickness of 0.79 mm provide durable mechanical strength.
- Serrated inner barrel ensures maximum electrical contact and tensile strength after crimping.
- Operating temperature up to 105°C suitable for various industrial applications.
- Easy wire insertion enabled by funneled entry design of the wire barrel.
Product Description
TE Connectivity 34143 PLASTI-GRIP Insulated Ring Terminal is engineered for secure and efficient wire connections in electronics and electrical applications. It suits 2.84 mm stud size and accommodates wire sizes ranging from 22 AWG to 16 AWG.
This ring terminal features a high conductivity copper contact plated with tin to prevent corrosion, ensuring long-term reliability in electrical systems. The vinyl insulation is rated 94V-0, providing high dielectric strength for operational safety.
The red insulation indicates its compatibility with wire gauge sizes 22 AWG to 16 AWG, simplifying identification and selection during installation. The ring terminal measures an outer ring diameter of 7.14 mm and an inner ring diameter of 3.02 mm. Its overall length is 20.55 mm, with a thickness of 0.79 mm, imparting mechanical robustness for demanding environments.
The serrated inner barrel design maximizes electrical contact area and tensile strength post-crimping. The funneled wire barrel entry improves ease of wire insertion, speeding up installation processes.
Rated for a maximum operating temperature of 105°C, this ring terminal is suitable for diverse industrial, laboratory, automotive, and electrical manufacturing uses. It is manufactured in the United States to high quality standards, ensuring dependable performance.
High conductivity copper contact with tin plating resists corrosion. Vinyl insulation sleeve provides electrical insulation and safety. Red color coding aids in wire size identification. Serrated barrel improves electrical connection and durability.
Compatible with wire sizes 22 AWG to 16 AWG and 2.84 mm stud size. Operates safely up to 105°C maximum temperature. Compact design with precise dimensions for industry-standard compatibility. Explore TE Connectivity products and Ring Terminal solutions for electronics components, available in the EnvMart catalog for industrial and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal can accommodate a maximum wire size of 16 AWG.
It is compatible with a stud size of 2.84 mm.
The overall length of this ring terminal is 20.55 mm.
The contact is made of copper and is plated with tin, while the insulation is made of vinyl.
It is rated for a maximum operating temperature of 105°C.
The outer ring diameter is 7.14 mm and the inner ring diameter is 3.02 mm.
The serrated inner barrel maximizes electrical contact area and tensile strength after crimping.
This model features red color coding for easy identification of wire sizes.
It is designed for wire sizes ranging from 22 AWG to 16 AWG.
The thickness of this terminal is 0.79 mm.
This ring terminal is manufactured in the United States.
The vinyl insulation sleeve is rated 94V-0, providing high dielectric strength for safety.
