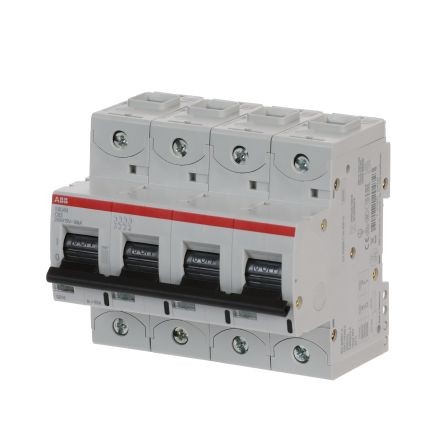

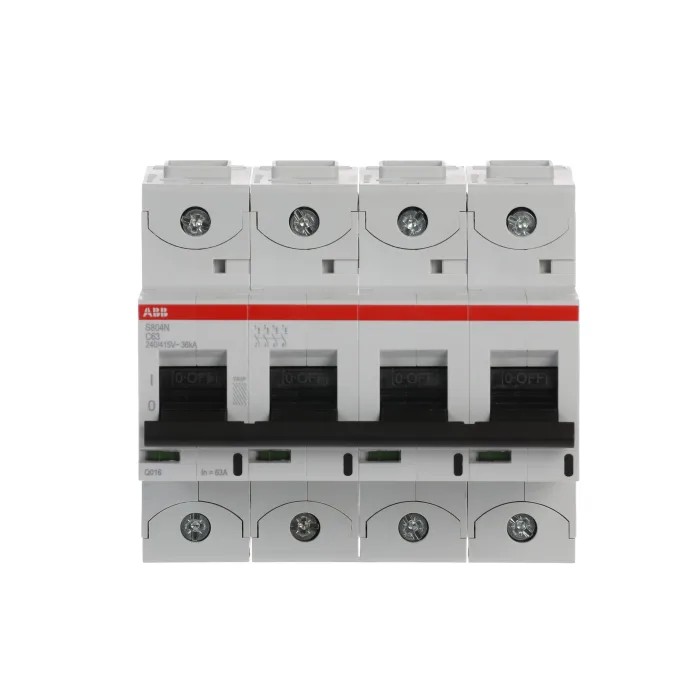

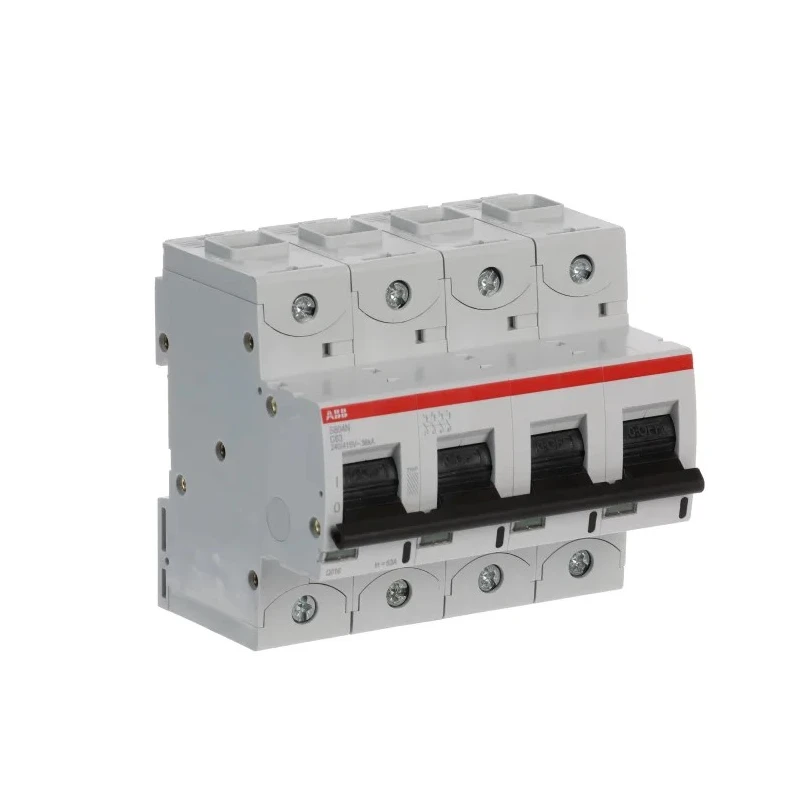

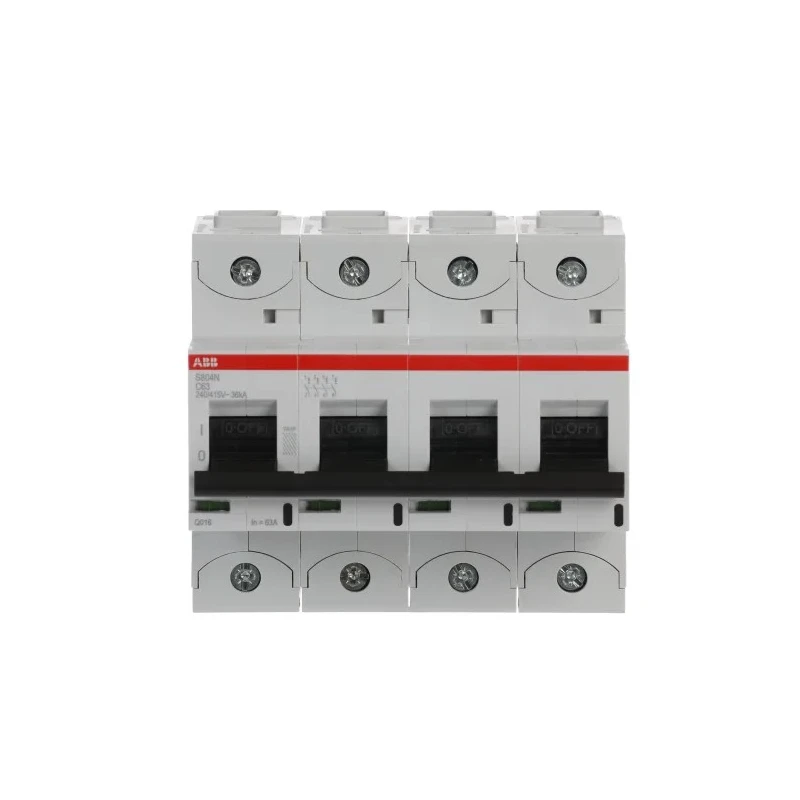

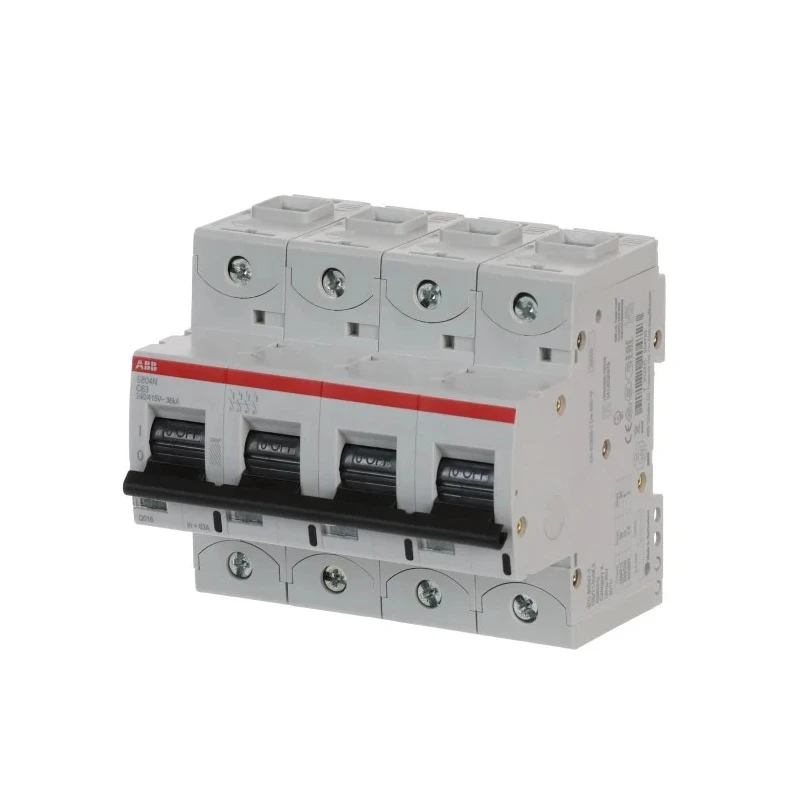

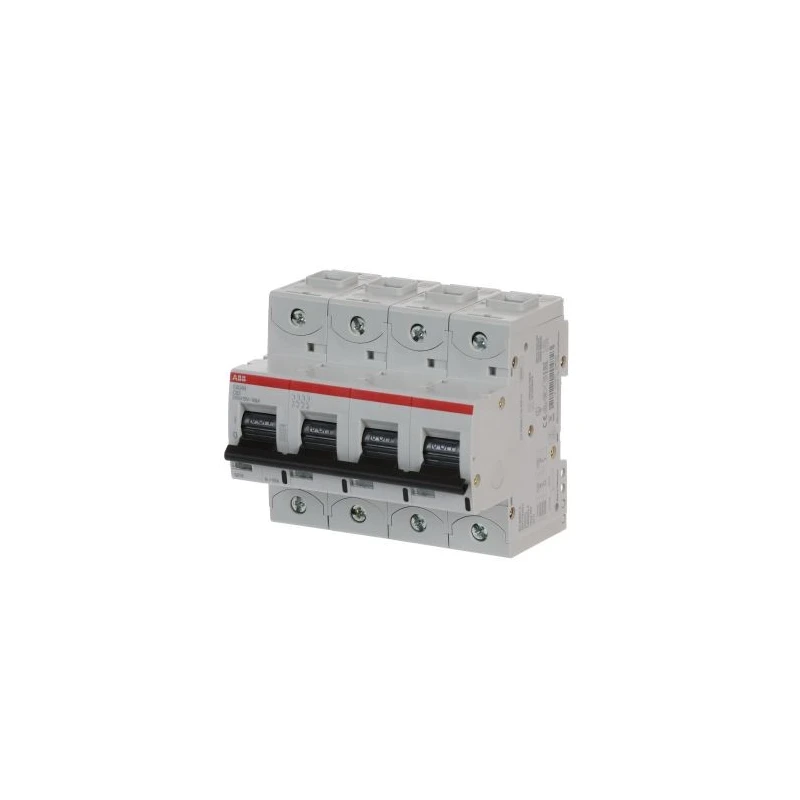

ABB High Performance S800N Miniature Circuit Breaker, 4-Pole, 63A, Type C, 400/690V AC, 375V DC, 36 kA 2CCS894001R0634

ABB 2CCS894001R0634 is a High Performance S800N Miniature Circuit Breaker designed for industrial, residential, commercial, and electrical automation applications. This 4-pole circuit breaker supports a rated current of 63 amperes with type C tripping characteristics suitable for a wide range of electrical systems. It is engineered to provide precise overload and short circuit protection, ensuring safety and reliability across various electrical circuits.

The device supports rated AC voltages of 400 V and 690 V as well as DC voltage up to 375 V, accommodating diverse usage scenarios. Its high breaking capacity of 36 kA allows it to interrupt significant fault currents safely without damage. The MCB integrates electromagnetic and thermomagnetic tripping mechanisms that deliver comprehensive circuit protection.

Designed for DIN rail installation, the circuit breaker includes cage terminals allowing connections from the top and bottom, compatible with stranded conductors up to 50 mm² and flexible conductors up to 70 mm². Compact dimensions (106 mm width, 95 mm height, 82.5 mm depth) and IP20 ingress protection rating make it suitable for many control panels and electrical enclosures.

Operating efficiently within ambient temperatures ranging from -25°C to +60°C and capable of storage between -40°C to +70°C, this breaker maintains low power consumption around 6.4W during normal conditions, optimizing energy efficiency.

Internationally certified to IEC/EN 60898-1 and IEC/EN 60947-2 standards and manufactured in Switzerland, the ABB S800N series ensures compliance and quality. The toggle switch actuator facilitates easy manual resetting after tripping events.

This miniature circuit breaker limits current to prevent damage from overloads and short circuits. Dual tripping mechanisms provide enhanced protection and operational safety. High breaking capacity makes it suitable for demanding electrical environments.

DIN rail mounting allows efficient installation in electrical panels. Cage terminal connections offer flexible wiring options. Compact size supports space-constrained electrical assemblies. Complies with key international electrical standards for circuit breakers.

Designed to operate over a wide temperature range and environmental conditions. Low power loss supports energy-saving electrical systems.

This ABB miniature circuit breaker is ideal for residential buildings, commercial complexes, industrial facilities, and various automation setups requiring reliable circuit protection. Browse more products in the Miniature Circuit Breaker category at EnvMart for additional electrical protection solutions.
