Molex Male PCB Connector Housing 5 Contacts, 4.2 mm Pitch, 1 Row Straight Nylon Housing 1727092005

Free Delivery in India | Lowest Global Shipping Charges

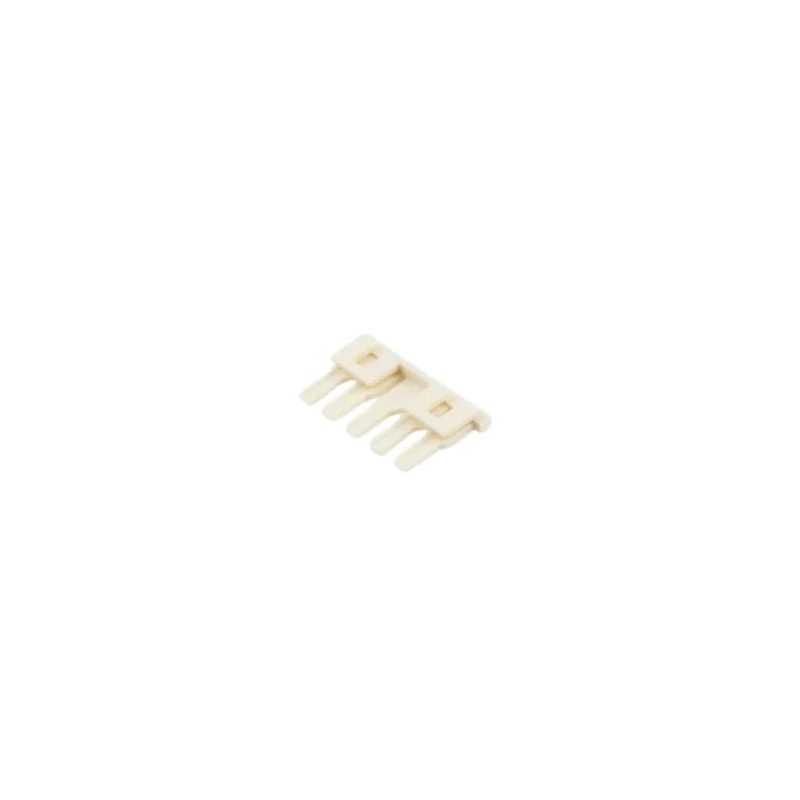

Molex Male PCB Connector Housing 5 Contacts, 4.2 mm Pitch, 1 Row Straight Nylon Housing 1727092005

Name: Molex Male PCB Connector Housing 5 Contacts, 4.2 mm Pitch, 1 Row Straight Nylon Housing 1727092005
Brand: Molex
SKU: 163631
Price: 936.04 USD
Availability: InStock



Category PCB Connector Housing Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Orientation	Straight
Length	22.2mm
Width	2.73mm
Housing Material	Nylon
Series	172709
Number of Rows	1
Pitch	4.2mm
For Use With	1727081002 Mini-Fit Sigma Receptacle Housing, 1727621002 Mini-Fit Sigma Plug Housing, 1727673002 Mini-Fit Sigma Plug Housing
Number of Contacts	5
Connector Gender	Male

Key Features

Constructed from high-quality nylon for durability and chemical resistance.
Features 5 contacts and a single row configuration.
Designed with a 4.2 mm pitch for compact PCB arrangements.
Straight orientation simplifies PCB integration.
Compatible with Mini-Fit Sigma receptacle and plug housings.
Offers terminal position assurance for secure connections.
Operates reliably within a temperature range of -40°C to +105°C.
Manufactured in the United States ensuring quality standards.

Product Description

Molex 1727092005 Male PCB Connector Housing is a premium component designed for secure and efficient electronic connections in industrial and automation applications. Featuring a 4.2 mm pitch and 5 contact positions arranged in a single row, this connector housing provides reliable male interface compatibility for various PCB-mounted systems.

Constructed from robust nylon housing material, this connector exhibits excellent chemical resistance and durability to withstand demanding operating environments. Its straight body orientation facilitates easy installation on circuit boards, maintaining compact layout without compromising secure contact.

The connector integrates terminal position assurance which guarantees correct mating of contacts, reducing the risk of misconnections and enhancing overall circuit reliability. Designed to operate in temperatures ranging from -40°C to +105°C, it suits diverse industrial, manufacturing, automotive, and electronic device applications requiring consistent power connectivity.

This housing is compatible with Molex Mini-Fit Sigma plug and receptacle housings such as 1727081002, 1727621002, and 1727673002, making it a versatile choice for system integrations demanding scalable and modular connections.

Constructed from high-quality nylon for durability and chemical resistance. Features 5 contacts and a single row configuration. Designed with a 4.2 mm pitch for compact PCB arrangements. Straight orientation simplifies PCB integration.

Compatible with Mini-Fit Sigma receptacle and plug housings. Offers terminal position assurance for secure connections. Operates reliably within a temperature range of -40°C to +105°C. Manufactured in the United States ensuring quality standards.

This connector housing suits industrial automation, electronic manufacturing, electrical equipment assembly, and mechanical applications requiring dependable power and signal connection. It supports system designers and OEMs seeking durable and standard-compliant PCB connector solutions.

Explore Molex branded connectors and housing components on EnvMart for advanced quality and trusted reliability in electronic interconnect products.
