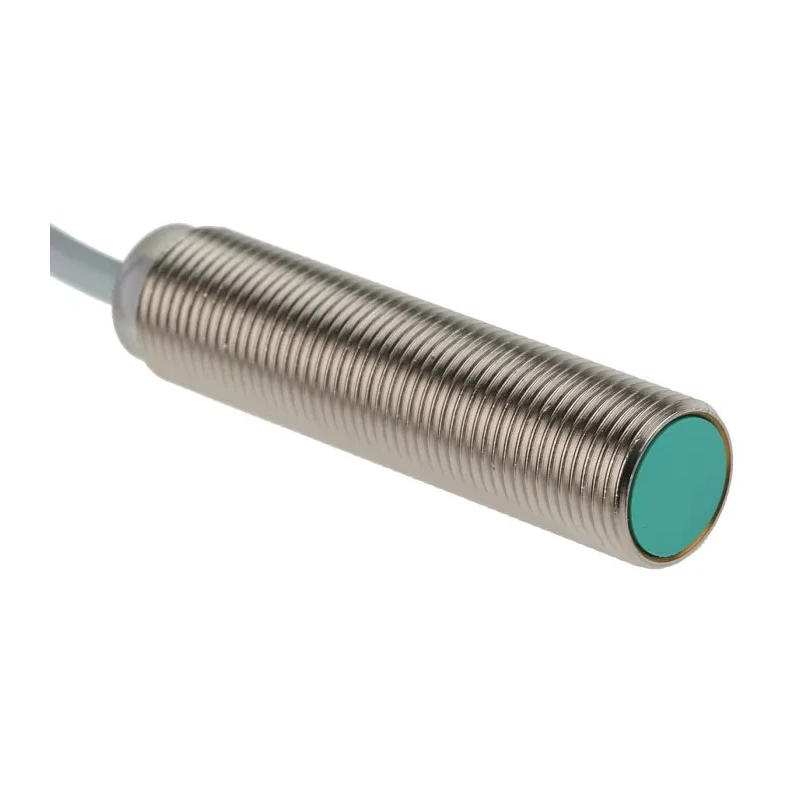

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 x 1, NPN Output, 36 V DC 200mA, 4 mm NBB4-12GM50-E0
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 50mm |
| Model | NBB4-12GM50-E0 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | NPN |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2.55kHz |
| Standards/Approvals | cULus, EN 60947, IEC 60947 |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 4mm |
Key Features
- Features a rugged M12 x 1 threaded barrel design for secure flush mounting.
- Rated IP68 for excellent protection against dust and water ingress.
- Operates on 36 V DC supply voltage with a maximum switching current of 200 mA.
- Constructed with brass white bronze coated housing for enhanced durability.
- Suitable for extreme temperatures ranging from -40°C to 85°C.
- Incorporates LED indication for operational status monitoring.
- Includes short circuit and reverse polarity protection to ensure reliability.
- Supports a maximum switching frequency of 2.55 kHz for fast response applications.
Product Description

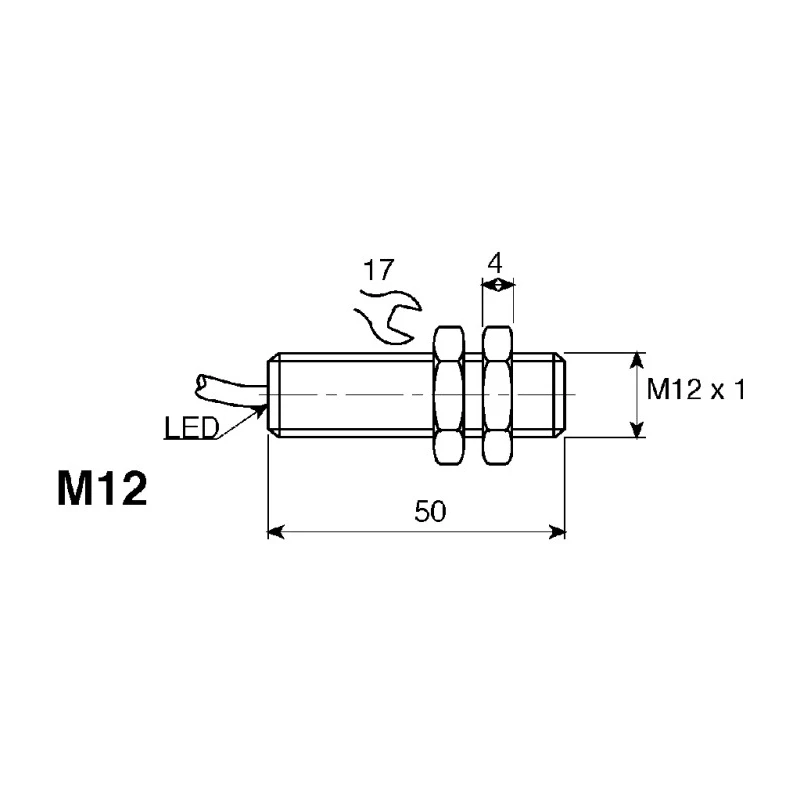

Pepperl + Fuchs NBB4-12GM50-E0 Threaded Barrel Inductive Proximity Sensor features an M12 x 1 threaded barrel body with a length of 50 mm and diameter of 12 mm, designed for flush mounting in automation systems.
This sensor offers a maximum detection distance of 4 mm and is rated IP68, ensuring robust resistance to dust and water ingress. The housing is made from brass with a white bronze coating, enhancing mechanical strength and corrosion resistance.
Operating within a temperature range of -40°C to 85°C, this sensor is suited for harsh industrial environments including manufacturing plants, automation gear, and control systems.
Powered by a DC supply voltage of 36 V, it includes an NPN output type capable of switching currents up to 200 mA. The sensor supports a fast switching frequency of 2.55 kHz, making it suitable for high-speed detection tasks.

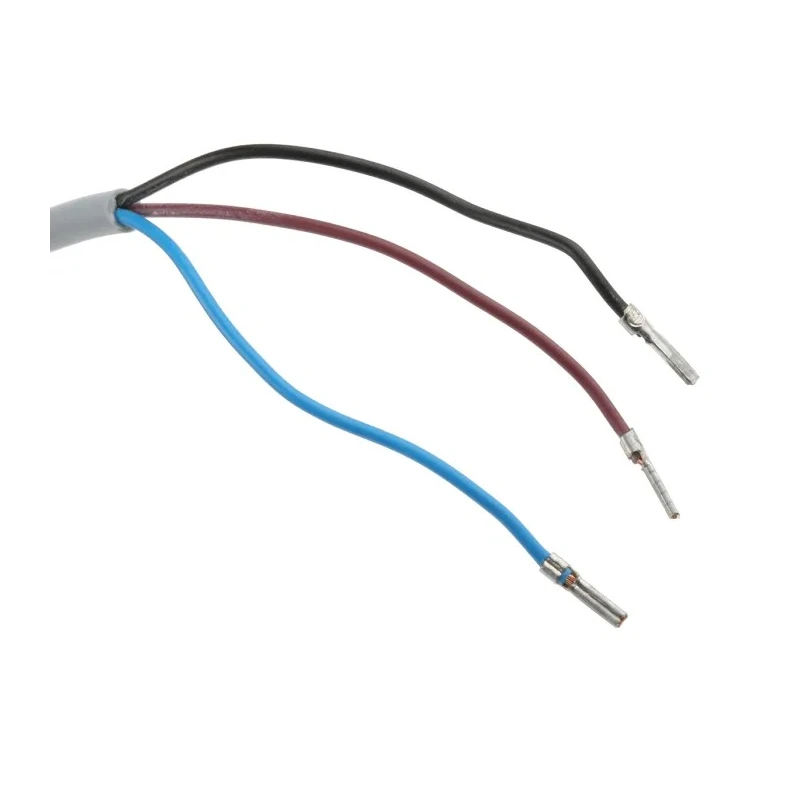

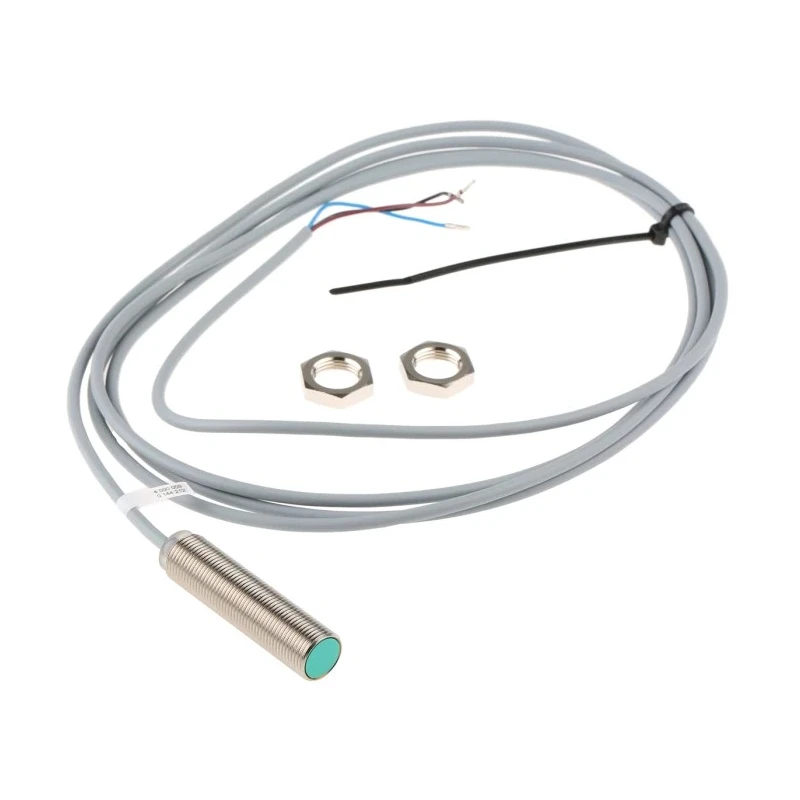

Additional protective features include short circuit and reverse polarity protection, increasing device reliability and operational safety. Installation is simplified with a pre-wired 2 m PVC cable and flush mount design, enabling integration in compact control panels and automation lines.
Certifications to UL, EN 60947, and IEC 60947 standards assure quality and compliance for industrial applications. Features a rugged M12 x 1 threaded barrel design for secure flush mounting. Rated IP68 for excellent protection against dust and water ingress.
Operates on 36 V DC supply voltage with a maximum switching current of 200 mA. Constructed with brass white bronze coated housing for enhanced durability. Suitable for extreme temperatures ranging from -40°C to 85°C. Incorporates LED indication for operational status monitoring.
Includes short circuit and reverse polarity protection to ensure reliability. Supports a maximum switching frequency of 2.55 kHz for fast response applications. Pre-wired with 2 m PVC cable for easy installation. Complies with standards cULus, EN 60947, and IEC 60947.
This Pepperl + Fuchs inductive proximity sensor is ideal for use in industrial automation, manufacturing systems, robotics, and control applications requiring precise non-contact object detection under demanding environmental conditions.
Explore a broad range of Proximity Sensors and automation components at EnvMart for enhanced process control and system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 4 mm.
It operates on a DC supply voltage of 36 V.
This unit can handle a maximum switching current of 200 mA.
It is suitable for operation in temperatures ranging from -40°C to 85°C.
This model features an NPN output type.
This sensor is rated IP68, providing excellent protection against dust and water ingress.
It supports a maximum switching frequency of 2.55 kHz.
The housing is constructed from brass with a white bronze coating for enhanced durability.
It features a threaded barrel design for secure flush mounting and comes pre-wired with a 2 m PVC cable for easy installation.
It complies with cULus, EN 60947, and IEC 60947 standards.
The body style of this sensor is a threaded barrel.
It utilizes a cable terminal type for connections.
