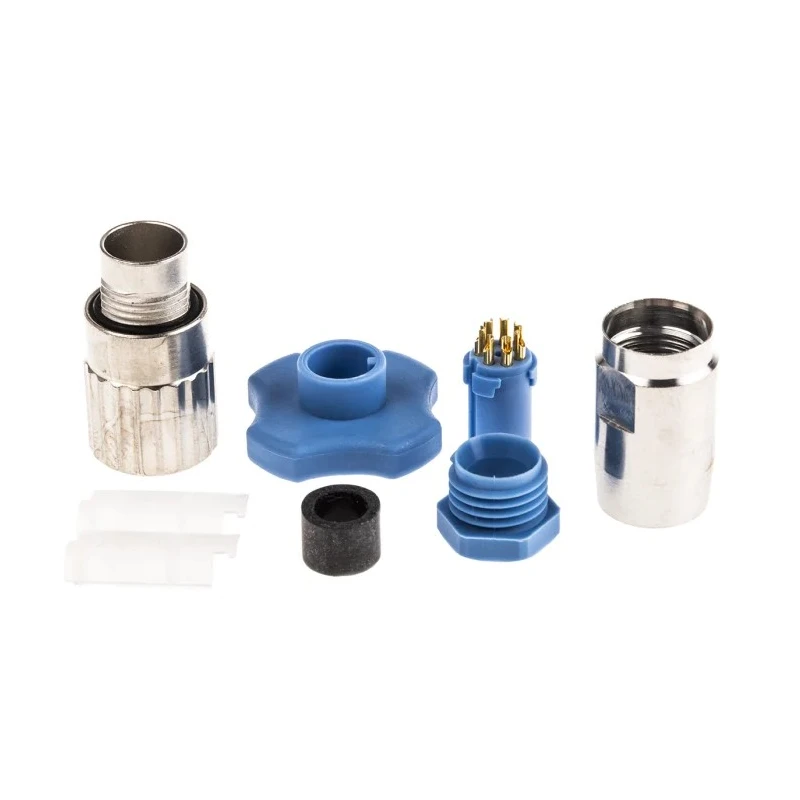

TE Connectivity Circular Connector Subminiature Socket Female 7 Contacts Cable Mount IP65 TRIAD 01 Series IP65

TE Connectivity IP65 circular connector, model IP65, is a subminiature socket connector with 7 female contacts intended for cable mounting applications. It features a polybutylene terephthalate housing for robust insulation and mechanical durability. The nickel-plated copper zinc alloy contact material provides reliable electrical conductivity and resistance to corrosion.

This connector supports a current rating of 1A and operates at a voltage of 60V, making it suitable for low power industrial and electronic applications. It can function over a wide temperature range from -40°C to 80°C, allowing use in diverse environmental conditions.

The TRIAD 01 series design includes a screw-locking mechanism offering excellent shielding to meet EMC requirements while providing ingress protection to IP65 standards, ensuring water and dust tightness. The connector body dimensions include a plug length of 40mm and socket length of 38mm, with an outside diameter of 12mm, maintaining a compact and subminiature form factor.

This connector is fully compatible with Binder 711/712 industrial circular connectors, providing interchangeability within standard industrial setups. The termination type uses soldering for secure cable attachments, and the contact orientation is straight, facilitating easy assembly during cable harnessing.

Manufactured in Germany, this TE Connectivity connector ensures high quality and reliability for industrial, electronic components, power and connector systems. Constructed with polybutylene terephthalate housing for durable insulation and mechanical strength.

Features nickel-plated copper zinc alloy contacts ensuring corrosion resistance. Rated for 1A current and 60V voltage suitable for low power connections. Operates reliably in temperatures ranging from -40°C to 80°C. Designed with screw-locking TRIAD 01 series housing providing excellent EMC shielding and IP65 ingress protection.

Compatible with Binder 711//712 connectors ensuring interchangeability. Uses solder termination for secure and reliable connections. Orientation is straight for direct cable alignment and easy assembly. Manufactured in Germany meeting high quality standards.

This product is ideal for industrial, manufacturing, electronic assembly, and power connector applications requiring reliable and compact circular connectors with ingress protection.
