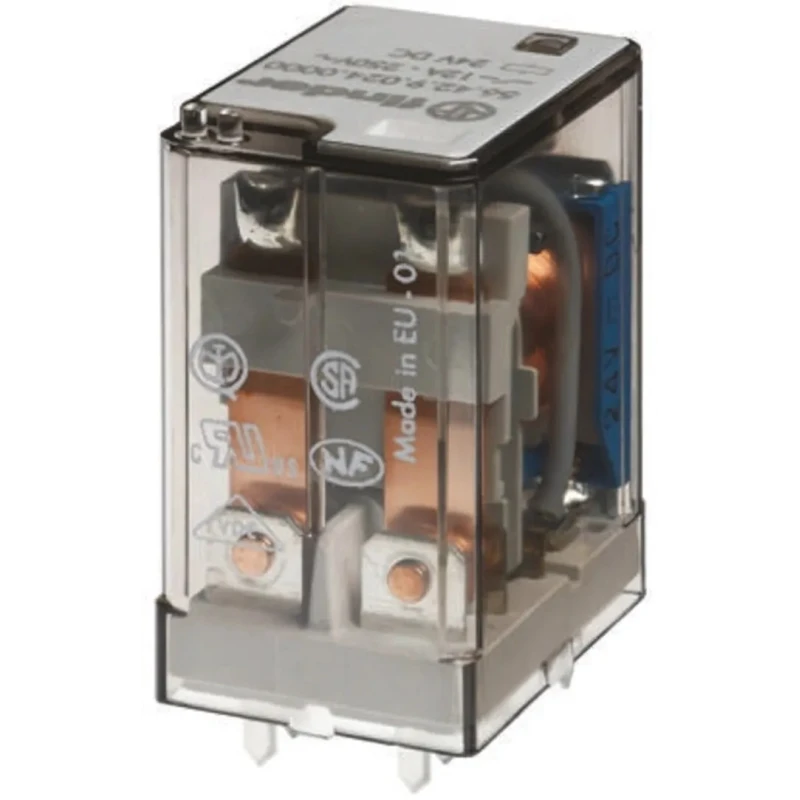

Finder PCB Power Relay 12V DC Coil 12A Switching Current DPDT 56.42.9.012.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |

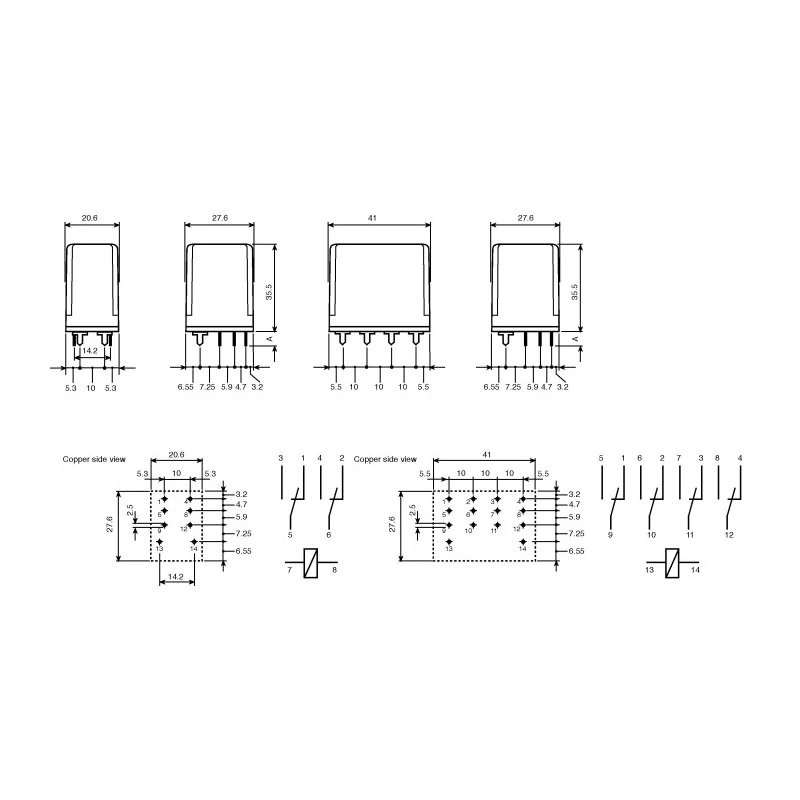

| Dimensions | H41.1, W20.7, D27.7mm (DPCO), H41.4, W70.8, D27.7mm (4PDT) |
| Height | 36.8mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 20.7mm |
| Width | 27.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 56 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Contact Resistance | ≤50mΩ |
| Standards/Approvals | CSA, CCC, cURus, EN, RINA, EAC, RoHS, VDE |
| Coil Resistance | 140Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1W |
| Isolation Coil To Contact | 2500V |
Key Features
- Suitable for switching currents up to 12A with a contact voltage rating of 250V AC.
- Coil resistance of 140 ohms and coil power consumption of 1W ensures low energy usage.
- Operates reliably across a temperature range from -40°C to +70°C.
- Features silver alloy contacts with a contact resistance under 50 milliohms for efficient conductivity.
- High isolation between coil and contact circuits rated at 2500V ensures safety and durability.
- Designed and made in Italy maintaining high manufacturing standards.
- Approvals include CSA, CCC, cURus, EN, RINA, EAC, RoHS, and VDE for international compliance.
Product Description
The Finder model 56.42.9.012.0000 is a high-quality PCB Power Relay designed with a 12V DC coil and a double pole double throw (DPDT) contact configuration, allowing switching currents up to 12 amps and switching AC voltage up to 250 volts. This power relay features a silver alloy contact material, ensuring low contact resistance of less than or equal to 50 milliohms, and provides excellent electrical conductivity.
Specifically engineered for printed circuit board mounting, the relay has a compact footprint with dimensions approximately 20.7mm in length, 27.7mm in width, and 36.8mm in height. The coil resistance is 140 ohms, and the coil consumes just 1 watt of power, making it energy-efficient for device control.
This relay operates reliably within an industrial temperature range of -40°C to +70°C, making it suitable for a wide variety of applications including industrial automation, electrical switching, and control systems across sectors such as manufacturing, HVAC, and instrumentation.
The isolation between the coil and contact circuits is rated at 2500 volts, providing safety against voltage spikes and ensuring the longevity of the relay. The relay complies with multiple international standards and approvals, including CSA, CCC, cURus, EN, RINA, EAC, RoHS, and VDE, attesting to its quality and safety for global use.
Made in Italy, this relay embodies high manufacturing standards and reliability. It is ideal for use in industrial, automation, electrical, and signal conditioning applications where robust power relays are required.
Suitable for switching currents up to 12A with a contact voltage rating of 250V AC. Coil resistance of 140 ohms and coil power consumption of 1W ensures low energy usage. Operates reliably across a temperature range from -40°C to +70°C.
Features silver alloy contacts with a contact resistance under 50 milliohms for efficient conductivity. Compact dimensions supporting versatile PCB installation: 20.7mm length, 27.7mm width, and 36.8mm height. High isolation between coil and contact circuits rated at 2500V ensures safety and durability.
Designed and made in Italy maintaining high manufacturing standards. Approvals include CSA, CCC, cURus, EN, RINA, EAC, RoHS, and VDE for international compliance. Explore more Power Relays from Finder and similar high-performance components available on EnvMart to meet demanding industrial and electrical application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch currents up to 12A.
The contact voltage rating is 250V AC.
The coil voltage is 12V DC, and it consumes 1 watt of power.
It operates reliably within a temperature range of -40°C to +70°C.
The contact configuration is double pole double throw (DPDT).
The contact resistance is less than or equal to 50 milliohms.
The dimensions are approximately 20.7mm in length, 27.7mm in width, and 36.8mm in height.
This relay is designed for PCB mounting.
The contacts are made of silver alloy, ensuring efficient conductivity.
The isolation between the coil and contact circuits is rated at 2500V.
It complies with CSA, CCC, cURus, EN, RINA, EAC, RoHS, and VDE standards.
This relay is designed and made in Italy, adhering to high manufacturing standards.
