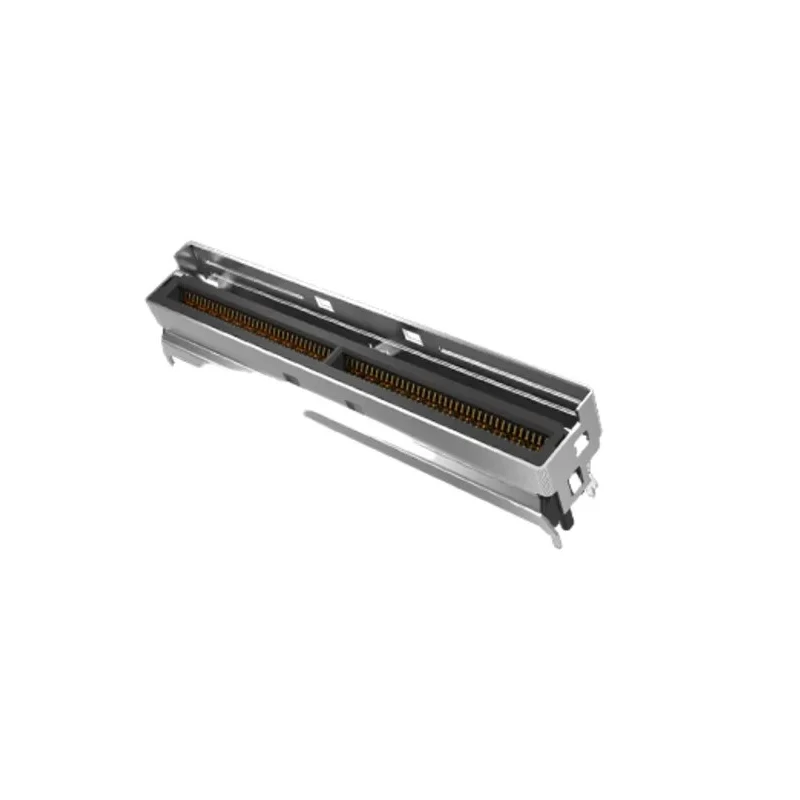

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel Mount, 74-Contacts G42V16312HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G42V16312HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- Compact vertical edge connector designed for PCIe card applications.
- Featuring 74 contacts with 0.6 mm pitch for precise and reliable connections.
- Contact plating of gold over nickel ensures excellent conductivity and corrosion resistance.
- Constructed with copper alloy contacts and thermoplastic housing material.
- Supports operating temperatures from -55°C to 85°C for robust environmental performance.
- Meets RoHS and UL standards for safety and environmental compliance.
- Enables system design flexibility with both cable and card edge connection support.
- Offers slim form factor ideal for compact data center systems.
Product Description
Amphenol Communications Solutions G42V16312HR Mini Cool Edge IO Series Vertical Edge Connector, with panel mount configuration, features 74 contacts spaced at 0.6 mm pitch. It offers signal integrity (SI) performance ready signal transmission supporting PCIe card types, designed specifically for compact, scalable, and modular data center systems.
This connector provides flexibility by supporting both cable and card edge applications using the same connector type. Its construction includes copper alloy contact material with gold over nickel plating, paired with a durable thermoplastic housing, enabling reliable contact conductivity and mechanical endurance.
Operating reliably in extreme temperature conditions ranging from -55°C to 85°C, this connector meets the RoHS and UL standards, ensuring compliance with environmental and safety requirements.
The connector supports a voltage rating of 300V and facilitates data transmission speeds up to 56Gb/s PAM4, compatible with PCIe Gen 4 and Gen 5 standards over transmission distances exceeding one meter. Its slim form factor suits compact data center designs perfectly.
Compact vertical Edge Connector designed for PCIe card applications. 74 contacts with precise 0.6 mm pitch spacing for signal fidelity. Gold over nickel plating delivers excellent conductivity and corrosion resistance. Copper alloy contacts provide robust electrical performance.
Thermoplastic housing ensures durable, lightweight construction. Wide operating temperature range from -55°C to 85°C. Conforms to RoHS and UL standards for safety and environmental compliance. Voltage rated at 300V for high-performance electronics.
Supports both cable and card edge connections for system flexibility. Enables high-speed data transfer up to 56Gb/s PAM4, suitable for PCIe Gen 4 and Gen 5. This connector is ideal for industrial, data center, and telecommunications applications where compact design, high speed, and reliable performance are critical.
Explore the comprehensive range of electronic connectors and components available at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 85°C.
This model supports both cable and card edge connections, providing flexibility for system design.
It features 74 contacts spaced at a 0.6 mm pitch for precise connections.
The voltage rating for this connector is 300V, suitable for high-performance electronics.
The connector is constructed with copper alloy contacts and a thermoplastic housing material.
It meets RoHS and UL standards for safety and environmental compliance.
It supports data transmission speeds up to 56Gb/s PAM4, compatible with PCIe Gen 4 and Gen 5 standards.
This connector is designed with a vertical orientation.
The minimum operating temperature is -55°C, allowing for robust environmental performance.
The pitch size of the contacts is 0.6 mm, ensuring precise and reliable connections.
This connector is suitable for industrial, data center, and telecommunications applications where compact design and high speed are critical.
Gold over nickel plating ensures excellent conductivity and corrosion resistance, enhancing the reliability of the connections.
