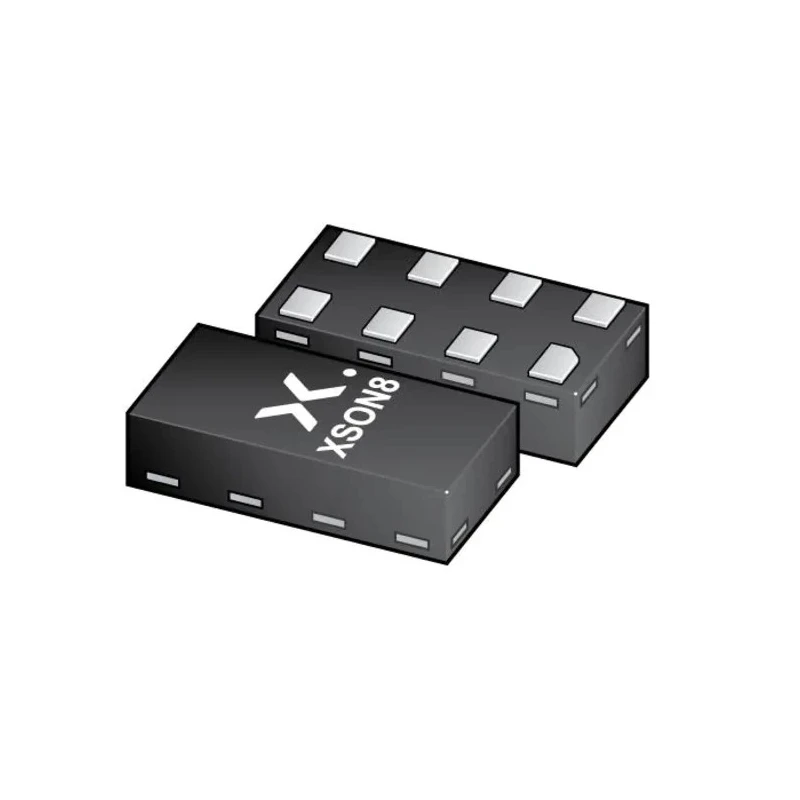

Nexperia Voltage Level Translator 8 Elements Bi-Directional Surface Mount CMOS 1.2-3.6V 2-Pin XSON8 NXB0102GTX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 2.1mm |
| Length | 2.4mm |
| Model | NXB0102GTX |
| Mount Type | Surface |
| Output type | CMOS |
| Series | NXB0102 |
| Maximum Operating Temperature | 125°C |
| Package Type | XSON8 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC61000-4-2, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CMOS |
| Logic Function | Voltage Translation |
| Minimum Supply Voltage | 1.2V |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 50mA |
Key Features
- Supports wide voltage translation range from 1.2 V to 5.5 V.
- Features 8 elements of bi-directional voltage translation.
- Includes IOFF circuitry for partial power-down operation.
- Compact 2-pin XSON8 surface mount package measuring 2.4 mm by 2.1 mm.
- Maximum low level output current of 50 mA for strong signal drive.
- Operates within temperature range from -40°C to 125°C.
- Complies with IEC61000-4-2 ESD protection and RoHS standards.
- Auto direction sensing enables seamless voltage translation.
Product Description
The Nexperia NXB0102GTX is a voltage level translator designed for translating signals between different voltage domains, supporting bi-directional voltage translation with 8 elements in a 2-pin XSON8 surface mount package.
This dual supply transceiver features auto direction sensing to enable seamless voltage translation between diverse low voltage nodes ranging from 1.2 V to 5.5 V. Its pins An and OE are referenced to VCC(A), which accepts voltages from 1.2 V to 3.6 V, while pins Bn are referenced to VCC(B), accepting voltages from 1.65 V up to 5.5 V.
A low level on the output enable (OE) pin triggers a high-impedance off-state to conserve power and protect the system. The device is well suited for partial power-down applications, incorporating IOFF circuitry to disable outputs and prevent damaging backflow currents when powered down.
With a maximum low level output current of 50 mA and CMOS output type, this translator ensures reliable data integrity and signal strength across domains. The compact XSON8 package measures 2.4 mm in length and 2.1 mm in height, optimized for surface mount PCB layouts.
Engineered to meet IEC61000-4-2 and RoHS standards, it operates effectively across -40°C to 125°C, making it suitable for demanding industrial, electronic, and power & control applications requiring voltage level shifting.
Wide supply voltage ranges compatible with multiple low-voltage nodes. Bidirectional voltage translation with auto direction sensing. Partial power-down support with IOFF circuitry. Compact, surface mount XSON8 package. ESD protection and compliance with industry standards.
Robust operation temperature range.
This model, NXB0102GTX, is ideal for designers seeking a reliable, small footprint voltage translator for embedded logic systems, interfaces, and power management circuits. EnvMart offers this component to support versatile electronic development and manufacturing needs.
Explore more products in our Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage translation range from 1.2 V to 5.5 V, accommodating diverse low voltage nodes.
The maximum low level output current for the NXB0102GTX is 50 mA, providing strong signal drive.
The compact XSON8 package measures 2.4 mm in length and 2.1 mm in height, optimized for surface mount PCB layouts.
It operates effectively within a temperature range from -40°C to 125°C, suitable for demanding applications.
The NXB0102GTX features 8 elements for bi-directional voltage translation, enhancing its functionality.
This model provides a CMOS output type, ensuring reliable data integrity across voltage domains.
It complies with IEC61000-4-2 ESD protection and RoHS standards, ensuring safety and environmental compliance.
The NXB0102GTX has a pin count of 2, designed for efficient connections in electronic applications.
Yes, it includes IOFF circuitry for partial power-down operation, which helps conserve power and protect the system.
The logic function of this model is voltage translation, enabling seamless communication between different voltage domains.
The NXB0102GTX supports bi-directional voltage translation, allowing signals to be translated in both directions.
The NXB0102GTX is manufactured in India, reflecting its origin in the global semiconductor market.
