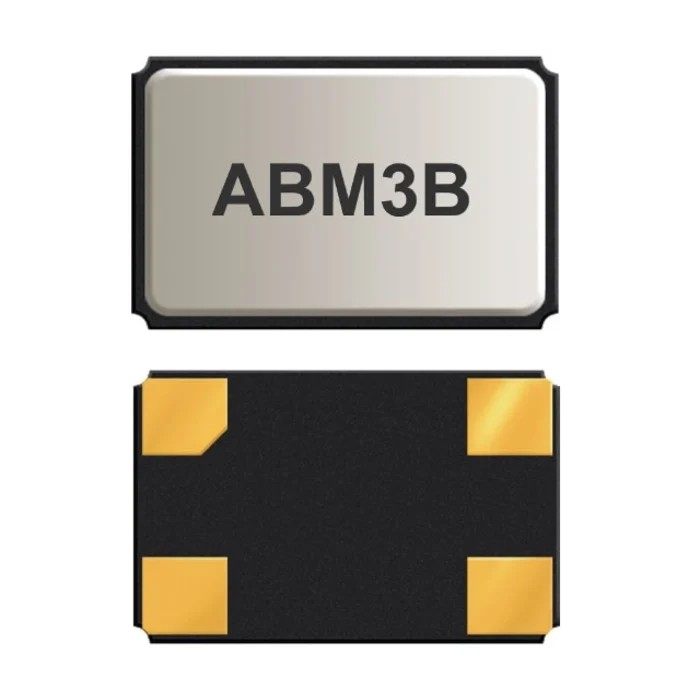

Abracon 11.0592 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.1 mm Height 5 mm Length 3.2 mm Width ABM3B-11.0592MHZ-10-1-U-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.1mm |
| Length | 5mm |
| Model | ABM3B-11.0592MHZ-10-1-U-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3B |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 11.0592MHz |
| Load Capacitance | 10pF |
| Series Resistance | 100Ω |
Key Features
- Features a ceramic package with metal lid providing high precision and reliability.
- Compact surface mount footprint with 4 pins and dimensions 5 mm length, 3.2 mm width, and 1.1 mm height.
- Operating temperature range from -10°C to 60°C suitable for various environmental conditions.
- Equivalent Series Resistance (ESR) of 100 Ω ensures stable oscillation characteristics.
- Load capacitance is 10 pF, optimized for typical oscillator circuits.
- Suitable for use in cellular phones, pagers, communication test equipment, PCMCIA, and wireless devices.
- RoHS compliant ensuring environmentally safe manufacturing and disposal.
- Available in tape and reel packaging facilitating automated PCB assembly processes.
Product Description
Abracon ABM3B-11.0592MHZ-10-1-U-T Crystal Unit operates at a standard frequency of 11.0592 MHz with a frequency tolerance of ±50 ppm. This surface mount device features a robust ceramic package with a metal lid that ensures high accuracy and long-term reliability in demanding electronic applications.
The compact 4-pin crystal unit measures 5 mm in length, 3.2 mm in width, and 1.1 mm in height, making it ideal for space-constrained PCB designs. It has a load capacitance of 10 pF and an Equivalent Series Resistance (ESR) of 100 Ω, tailored for fundamental mode operation. The device is designed for operation between -10°C and 60°C, supporting stable performance under a range of environmental conditions.
This crystal unit is RoHS compliant and suitable for use in various industrial and commercial sectors including telecommunications, wireless communications, and embedded systems. Typical applications include cellular telephones, pagers, communication test equipment, PCMCIA cards, and other high-density electronic devices requiring precise frequency control.
Compact 4-pin surface mount crystal unit with ceramic package and metal lid. Standard frequency of 11.0592 MHz with ±50 ppm tolerance and stability. Load capacitance of 10 pF and ESR of 100 Ω for stable oscillator operation.
Operating temperature range from -10°C to 60°C ensures versatility. RoHS compliant, meeting environmental regulations. Package supplied in tape and reel for automated PCB assembly. Reliable frequency source for telecommunications and wireless applications.
This Abracon ABM3B series Crystal Unit is engineered to meet the demands of modern electronics manufacturing, providing a dependable frequency reference in industrial, laboratory, and commercial electronic applications. EnvMart customers can find this product under the Electronics Components category, ideal for use in circuits requiring precise timing and frequency stability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal unit operates at a standard frequency of 11.0592 MHz with a frequency tolerance of ±50 ppm.
This model has a length of 5 mm, a width of 3.2 mm, and a height of 1.1 mm, making it suitable for compact PCB designs.
The load capacitance of this crystal unit is 10 pF, which is optimized for typical oscillator circuits.
The Equivalent Series Resistance (ESR) is 100 Ω, ensuring stable oscillation characteristics during operation.
It operates within a temperature range of -10°C to 60°C, suitable for various environmental conditions.
The unit is supplied in tape and reel packaging, facilitating automated PCB assembly processes.
This model features a surface mount design, suitable for space-constrained applications.
Yes, it is RoHS compliant, ensuring environmentally safe manufacturing and disposal.
This crystal unit is suitable for use in cellular phones, pagers, communication test equipment, PCMCIA cards, and wireless devices.
The crystal unit features a 4-pin configuration, which is typical for surface mount devices.
The country of origin for this crystal unit is India.
This model belongs to the ABM3B series of crystal units, designed for high accuracy and reliability.
