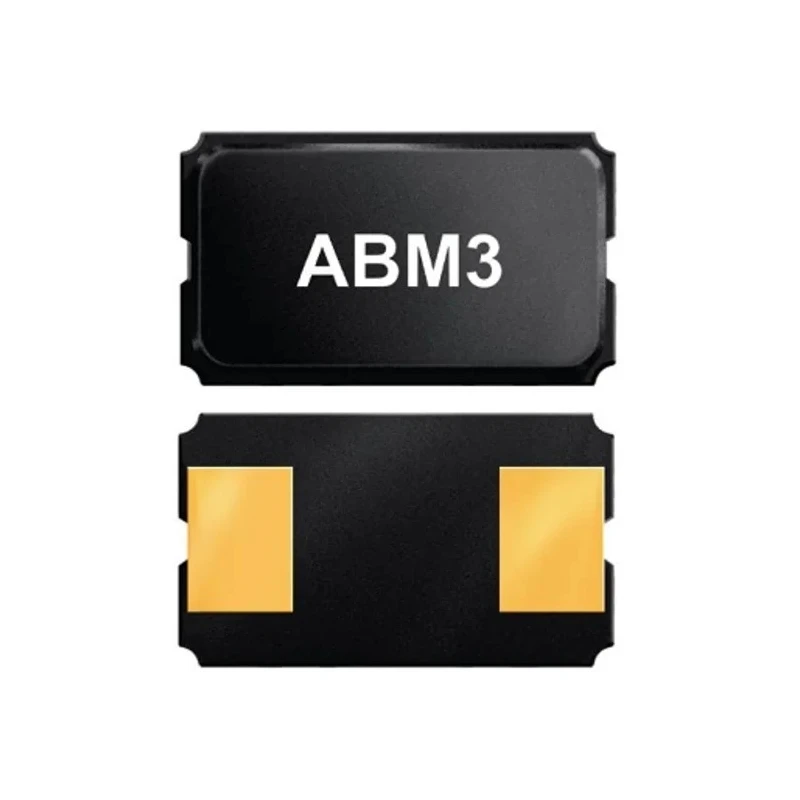

Abracon 20 MHz Crystal Unit Surface Mount 2-Pin 5 mm x 3.2 mm x 1.3 mm ±50 ppm Frequency Tolerance ABM3-20.000MHZ-B2-T

Abracon ABM3-20.000MHZ-B2-T 20 MHz Crystal Unit is a high-precision frequency control device designed for surface mount applications. Its ceramic package is hermetically sealed, providing exceptional moisture resistance and stability in demanding industrial and communications equipment.

This crystal unit operates at a standard frequency of 20 MHz with a frequency tolerance and stability of ±50 ppm, making it suitable for wireless applications, cellular telephones, pagers, test equipment, and PCMCIA data communication cards. Its AT-cut fundamental mode design supports accurate oscillation with low phase noise.

The compact surface mount 2-pin package measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height, allowing integration into space-constrained PCB layouts. It supports operating temperatures from -10°C to 60°C, suitable for most commercial and industrial environments.

This component has an equivalent series resistance (ESR) of 30 Ω that meets industry standards for efficient oscillation. The tape and reel packaging further facilitates efficient automated assembly in volume manufacturing. It complies with RoHS directives, ensuring environmental compliance.

This crystal unit features a 20 MHz standard frequency suitable for wireless and communication applications. It has a 2-pin surface mount design with dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height. The frequency tolerance and stability are tightly controlled at ±50 ppm for reliable oscillation.

Operating temperature ranges from -10°C to 60°C, enabling use in various environments. Hermetically sealed ceramic packaging ensures precision, moisture resistance, and long-term reliability. Equivalent series resistance (ESR) is rated at 30 Ω, ensuring efficient performance in circuits.

Packaging is tape and reel, optimized for automated PCB assembly processes.

This Abracon crystal unit is ideal for use in electronics manufacturing, telecommunications, automotive electronics, and test instrumentation where precise frequency control is critical. It supports RoHS-compliant reflow soldering, making it suitable for modern assembly lines.
