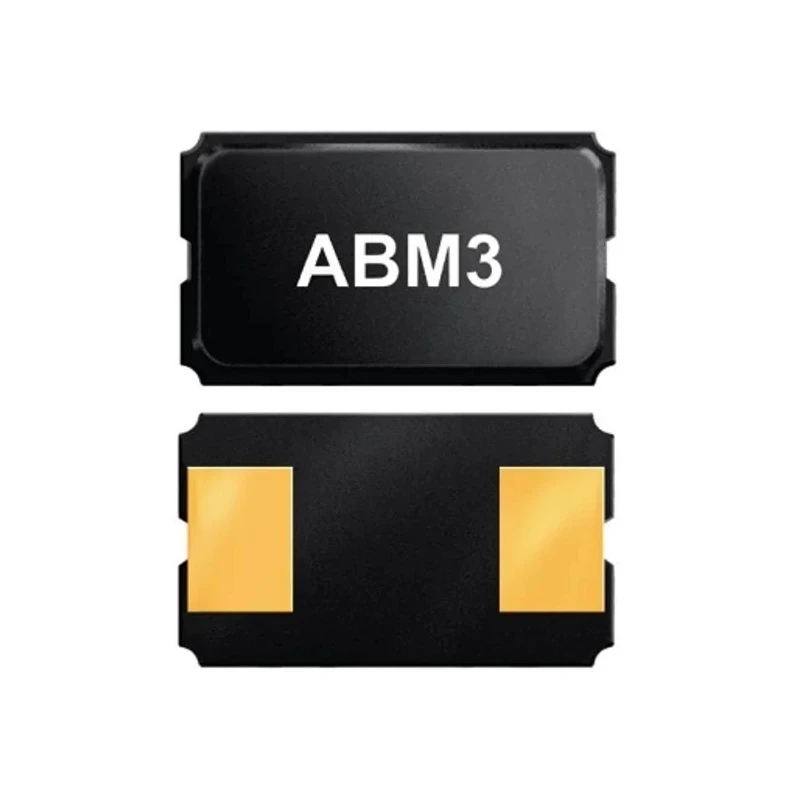

Abracon 30 MHz Crystal Unit ±50 ppm Surface Mount 2-Pin 5 mm x 3.2 mm x 1.3 mm ABM3-30.000MHZ-D2Y-T

Abracon ABM3-30.000MHZ-D2Y-T is a 30 MHz crystal unit designed for surface mount electronics requiring high frequency stability and precision. Featuring a 2-pin configuration within a hermetically sealed ceramic package, this crystal is robust and moisture resistant, optimized for reliable operation across temperature ranges from -10°C to 60°C.

Its ±50 ppm frequency tolerance and stability ensure accurate timing for critical applications in cellular telephones, pagers, communication systems, test equipment, PCMCIA cards, and wireless devices. The crystal’s load capacitance of 18 pF and series resistance of 25 Ω support low power consumption and efficient oscillation.

The compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height enable easy integration on PCB assemblies, while tape and reel packaging suits automated manufacturing environments. The component complies with RoHS, ensuring it meets environmental safety regulations.

Designed with an AT-cut fundamental or 3rd overtone mode, the crystal provides reliable operation for a variety of industrial and commercial applications within the electronics sector. The ceramic surface mount package is hermetically glass sealed, guaranteeing precision and long-term stability despite exposure to varying environmental conditions.

Key applications include telecommunications, wireless communication modules, test instrumentation, and PCMCIA-compatible devices requiring precise frequency control. This makes the ABM3-30.000MHZ-D2Y-T Crystal Unit a versatile and essential component in modern electronic device designs.

The crystal offers a frequency tolerance and stability of ±50 ppm ensuring precise frequency control. It features a surface mount package with dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height for compact PCB integration.

Load capacitance is specified at 18 pF to optimize oscillation performance. The device operates reliably between -10°C and 60°C, suitable for standard environmental conditions. Its equivalent series resistance is rated at 25 Ω minimizing signal loss.

It is RoHS compliant, confirming adherence to environmental safety standards. The crystal uses a ceramic package with hermetic glass sealing for enhanced durability and moisture resistance. Suitable for cellular telephones, communication equipment, test devices, PCMCIA cards, and wireless applications.

The product is supplied in tape and reel packaging facilitating automated assembly processes. Discover more precision electronic components and reliable crystals for your industrial and communication projects at EnvMart.
