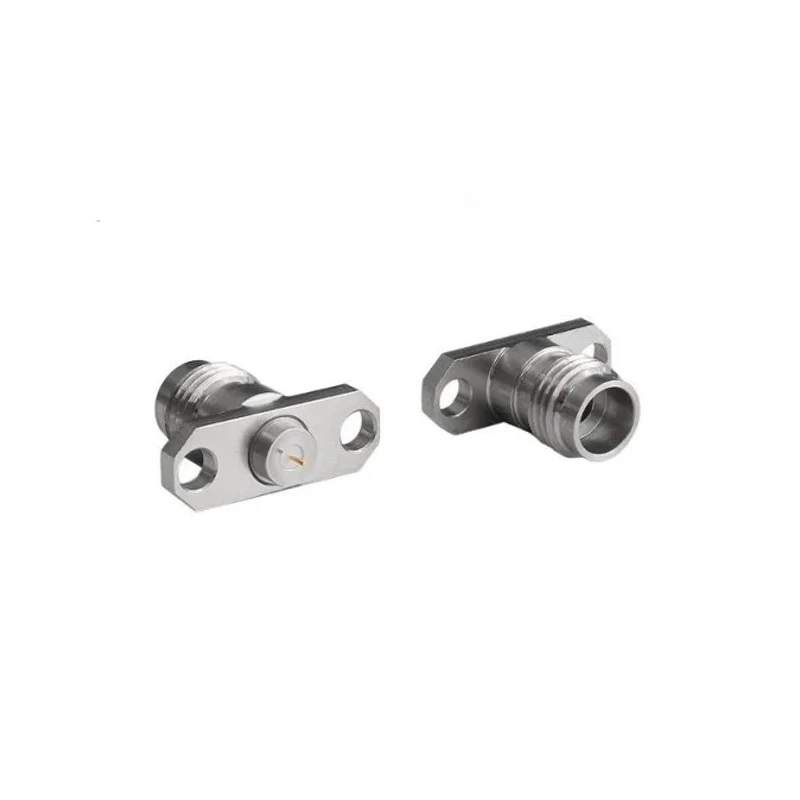

Bulgin SSMA Series Coaxial Connector Flange Female Circular Coaxial 50 Ω Straight Body Jack Screw RFSSMAA2JCCAFEC

Free Delivery in India | Lowest Global Shipping Charges

Bulgin SSMA Series Coaxial Connector Flange Female Circular Coaxial 50 Ω Straight Body Jack Screw RFSSMAA2JCCAFEC

Name: Bulgin SSMA Series Coaxial Connector Flange Female Circular Coaxial 50 Ω Straight Body Jack Screw RFSSMAA2JCCAFEC
Brand: Bulgin
SKU: 114968



Category Coaxial Connector Brand Bulgin Condition New

Specifications

Country of Origin	China
Brand	Bulgin
Orientation	Straight
Model	RFSSMAA2JCCAFEC
Mount Type	Flange
Contact Material	Beryllium Copper Alloy
Series	SSMA
Termination Type	Jack Screw
Maximum Operating Temperature	165°C
Cable Type	Flexible Coaxial, Semi-Rigid
Minimum Operating Temperature	-65°C
Polarity	Reverse
Impedance	50Ω
Standards/Approvals	ASTM D 1710 Compliant, RoHS
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	Circular Coaxial
Body Plating	Stainless Steel

Key Features

Constructed with stainless steel body plating for mechanical ruggedness and reliability.
Suitable for flexible and semi-rigid coaxial cables with straight orientation.
Features female connector and contact gender with jack screw termination type.
Operating temperature range from -65°C to 165°C ensures usability in extreme environments.
Compliant with ASTM D 1710 and RoHS standards for quality and environmental safety.
Used widely in radar, military, aerospace, instrumentation, test and measurement, and satellite communication equipment.
Contact material is beryllium copper alloy providing high durability and conductivity.
Designed for high frequency microwave applications with reverse polarity configuration.

Product Description

Bulgin RFSSMAA2JCCAFEC SSMA Series Coaxial Connector Flange Female is a micro miniature precision connector designed for high frequency microwave communication applications. Featuring a stainless steel body plating, this circular coaxial connector offers mechanical ruggedness and high reliability in a compact form factor. It supports both flexible and semi-rigid coaxial cables with a 50 ohm impedance for optimal signal transmission.

The connector has a flange mount type ideal for panel or bulkhead installation and includes a jack screw termination providing secure, stable connections. Its female gender connector and contact components are constructed with beryllium copper alloy delivering excellent conductivity and durability. The reverse polarity configuration enhances system compatibility and security.

Designed to operate efficiently within an extended temperature range of -65°C to 165°C, this Bulgin connector withstands extreme environmental conditions, making it suitable for demanding industrial and defense sector applications. It complies with ASTM D 1710 standards and RoHS directives ensuring both performance assurance and environmental safety.

This connector is widely employed in radar systems, military and aerospace equipment, instrumentation, test and measurement devices, and satellite communication equipment like SATCOM. Its mechanical design allows for durability up to 500 mating cycles, providing a reliable long service life in critical applications.

Stainless steel body plating provides mechanical strength and corrosion resistance. Beryllium copper alloy contact ensures superior electrical conductivity and durability. Flange mounting facilitates secure panel or bulkhead installation.

Jack screw termination type guarantees stable electrical connection. RoHS compliant and meets ASTM D 1710 standard for quality assurance. Supports semi-rigid and flexible coaxial cable types for versatile usage. Female connector and contact gender designed for compatibility in mating.

Operating temperature range from -65°C to 165°C ensures reliability in harsh environments. 50 ohm impedance optimized for microwave frequency applications. Durability up to 500 mating cycles for extended product lifetime.

Explore more from EnvMart in Electronics Components and Coaxial Connectors for quality industrial-grade RF and microwave solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has an impedance of 50Ω, optimized for microwave frequency applications.

It operates efficiently within a temperature range of -65°C to 165°C, making it suitable for extreme environments.

It features a jack screw termination type, which ensures secure and stable electrical connections.

The body is constructed with stainless steel plating for mechanical strength, while the contact material is beryllium copper alloy for high conductivity.

It has a flange mount type, making it ideal for panel or bulkhead installation.

It is designed for durability up to 500 mating cycles, ensuring a long service life in critical applications.

It is compliant with ASTM D 1710 standards and RoHS directives, ensuring quality and environmental safety.

This model features a female connector and contact gender, designed for compatibility in mating.

It is widely used in radar systems, military and aerospace equipment, instrumentation, test and measurement devices, and satellite communication equipment.

This is a circular coaxial connector designed for high frequency microwave communication applications.
